Complete Guide On How To Make PVC Patches: From Liquid Plastic To Finished Badges

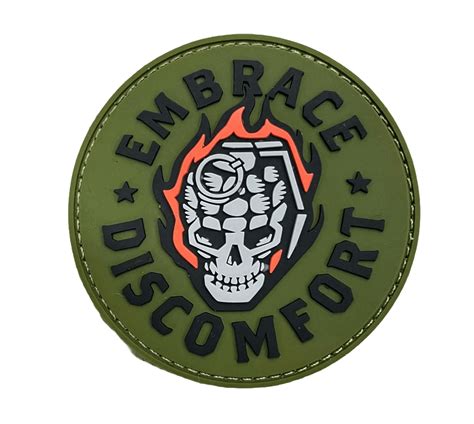

Polyvinyl chloride (PVC) patches are created by pouring color-matched liquid plastisol into multi-layered metal molds and curing them under controlled thermal compression. This comprehensive manual breaks down the micro-injection molding process, chemical safety parameters, and finishing techniques required to produce commercial-grade soft rubber patches.

Pre-Operation & Equipment Setup for Custom PVC Manufacturing

Producing durable, high-detail PVC patches requires specialized industrial hardware, precise chemical formulations, and stringent environmental controls. Because liquid plastisol releases fumes when heated, operations must take place in spaces with dedicated exhaust ventilation.

• Essential Gear and Materials:


  • Liquid PVC plastisol resin (medical or commercial grade with heat stabilizers)
  • Pigment concentrates (Pantone-matched color pastes)
  • Custom CNC-milled aluminum or copper molds (featuring recessed cavities)
  • Precision dispensing syringes, squeeze bottles, or automated micro-injection potting machines
  • Industrial thermal conveyor oven or flat-bed heat press (capable of sustained 160 degrees Celsius to 180 degrees Celsius)
  • Backing materials (hook-and-loop fasteners, adhesive film, or stitchable channels)
  • Personal protective equipment (nitrile gloves, organic vapor respirator masks, heat-resistant safety gloves)
• Prerequisite Knowledge and Quality Standards:


  • Understanding of viscosity modifiers to control how plastisol flows into intricate mold channels.
  • Familiarity with Durometer hardness scales (standard custom PVC patches typically measure between 70A and 80A for flexibility).
  • Awareness of thermal degradation thresholds to prevent discoloration or scorching of the PVC compound.
• Production Benchmarks:


  • Estimated setup and calibration time: 45 to 60 minutes.
  • Average curing time per layer: 3 to 7 minutes depending on oven temperature and patch thickness.
  • Target finished thickness: Standard tactical and brand patches range from 2.0 mm to 3.5 mm.

Step-by-Step Custom PVC Patch Production Workflow

Step 1: Mold Preparation and Design Layout Optimization

Vector artwork must be separated into distinct color layers and converted into a multi-level metal mold, usually machined from aviation-grade aluminum or brass. Clean the mold surface thoroughly using isopropyl alcohol and a lint-free cloth to remove any residual machining oils or dust particles that could create surface imperfections in the finished rubber. Pre-heat the clean mold to approximately 60 degrees Celsius on a heating plate to accelerate the initial gelling of the first resin layer upon contact.

Warning: Never introduce moisture or water droplets into warm or hot PVC molds, as trapped water instantly vaporizes under heat, causing violent bubbling and ruining the structural integrity of the liquid plastisol.

Step 2: Pigment Blending and Viscosity Adjustment

Measure clear liquid plastisol resin into clean mixing containers by weight using a digital scale to ensure exact batch consistency. Slowly fold in concentrated PVC color pigments matching your specified Pantone references until the mixture achieves uniform saturation without streaks. Adjust the flow characteristics of the mixture by adding a plasticizer or thinner if the compound is too viscous to fill micro-fine text and narrow border lines within the mold cavities.

Step 3: Micro-Injection and Layer-by-Layer Curing

Load the colored plastisol mixtures into precision syringes or squeeze bottles with fine-gauge metal tips for accurate dispensing. Carefully inject the liquid resin into the recessed mold channels, starting with the foreground details, fine text, and borders before filling larger background areas. Place the filled mold into a pre-heated curing oven or onto a heat press platen set between 160 degrees Celsius and 180 degrees Celsius for 3 to 5 minutes to set the first layer into a semi-solid gel state. Repeat the injection and curing cycle for subsequent color layers until the mold cavities are filled to the desired total depth, finishing with the base color layer that anchors all elements together.

Pro-Tip: Tap the underside of the mold gently against the workbench immediately after injecting each color layer to force trapped air bubbles to the surface before baking.

Step 4: Final Thermal Curing and Demolding

After all color layers and the final backing layer have been applied, subject the complete mold to a final full cure bake at 175 degrees Celsius for 8 to 12 minutes to achieve complete molecular cross-linking of the PVC polymer chains. Remove the hot mold from the heat source using heat-resistant gloves and allow it to cool down naturally or accelerate the cooling process using a cool-water quench bath. Carefully peel the flexible, fully cured PVC patch out of the metal mold cavity, starting from the corners and working inward to prevent tearing.

Step 5: Trimming, Backing Attachment, and Quality Control

Trim any excess flash or over-poured resin around the perimeter of the patch using precision trimming scissors or a hot-knife cutter for a clean, professional edge. If the design requires a hook-and-loop fastening system, apply industrial heat-activated adhesive to the back of the PVC patch and bond a matching hook fastener disc under mechanical pressure. Conduct a final quality control inspection, checking for color accuracy, surface bubbles, dimensional warping, and peeling layers before packaging the patches for distribution.

Technical Properties and Parameter Comparison of Patch Materials

Common Manufacturing Failures and Field Fixes

• Surface Bubbling and Pitting:


  • Root Cause: Moisture contamination in the liquid plastisol resin or trapped atmospheric air pockets introduced during rapid manual injection.
  • Actionable Fix: Degas the liquid plastisol in a vacuum chamber before injection, pre-heat molds to drive off surface moisture, and eliminate air bubbles using a vibration table or heat gun.
• Layer Delamination (Peeling Colors):


  • Root Cause: Under-curing intermediate layers, allowing layers to cool completely before applying the next color, or using incompatible resin formulations.
  • Actionable Fix: Ensure intermediate layers only reach a semi-gel state rather than a full cure before adding subsequent layers, and maintain consistent oven temperatures across the entire production run.
• Distorted Fine Text and Blurry Borders:


  • Root Cause: Plastisol viscosity is too low, causing colors to bleed into adjacent cavities before thermal gelling takes place.
  • Actionable Fix: Add a thickening modifier to increase compound viscosity, use finer needle tips on dispensing syringes, and lower the initial gel temperature to speed up surface skinning.
• Sticky or Tacky Surface Finish:


  • Root Cause: Incorrect balance of primary plasticizers in the resin formula or insufficient final cure time and temperature.
  • Actionable Fix: Verify oven thermostat calibration using an infrared thermometer, extend the final bake cycle by 3 minutes, and ensure proper ratio adjustments during initial plastisol mixing.

Frequently Asked Questions

What equipment do I need to start making PVC patches at home?

Starting production requires liquid plastisol resin, color pigments, custom metal molds, precision syringes, and a reliable heat source such as a convection oven or commercial heat press. While small batches can be made manually with basic tools, industrial production utilizes automated micro-injection potting machines and CNC-machined aluminum molds.

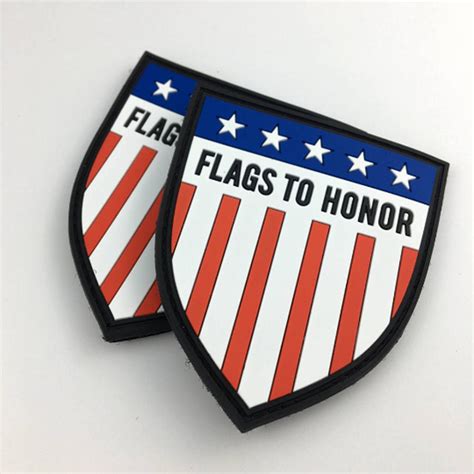

How are multi-colored PVC patches produced in precise alignment?

Multi-colored patches are created using multi-level metal molds where individual recessed cavities correspond to specific design elements and color layers. Technicians inject liquid resin layer by layer, partially curing each color in an oven before adding the next, ensuring clean color separation without bleeding.

What is the ideal thickness for a standard tactical PVC patch?

The industry standard thickness for tactical and morale patches ranges from 2.5 mm to 3.5 mm. This specific thickness provides enough structural depth to support clean three-dimensional detailing while maintaining the flexibility required to conform to uniforms, tactical gear, and headwear.

Can PVC patches be attached to garments with a regular iron?

No, direct iron heat will melt and ruin PVC plastisol compounds, destroying the patch and potentially damaging the garment fabric. PVC patches must be manufactured with pre-attached hook-and-loop velcro, sew channels, or applied using industrial heat-activated adhesives under controlled temperature presses.

Why do some custom PVC patches crack in cold weather?

Patches that crack or become brittle in low temperatures usually suffer from poor plasticizer ratios or low-grade resin formulations lacking proper cold-weather stabilization additives. Commercial-grade patches use high-elasticity plasticizers formulated to maintain flexibility down to negative twenty degrees Celsius.
