How To Make A Portable AC More Efficient: The Ultimate Thermal Optimization Guide

Thermal efficiency optimization in portable air conditioners hinges on eliminating parasitic thermal radiation and reducing negative pressure air infiltration. Standard single-hose portable units lose up to 50% of their rated cooling capacity because uninsulated exhaust hoses radiate extreme sensible heat directly back into the conditioned space. By insulating ductwork, precision-sealing window interfaces, and managing airflow dynamics, you can increase system efficiency (CEER) by 35% to 50% while lowering daily kilowatt-hour consumption.

Pre-Optimization Setup and Thermal Audit Requirements

Before executing mechanical modifications or structural adjustments, you must establish an operational baseline. Portable air conditioners (PACs) operate on a vapor-compression refrigeration cycle that relies heavily on unrestricted airflow and controlled ambient conditions. Poor placement, restrictive ducting, or unsealed room perimeters force the compressor to run continuously, driving up ambient humidity, straining electrical components, and degrading the unit's Combined Energy Efficiency Ratio (CEER).

Achieving peak efficiency requires identifying key thermal leaks, gathering system-grade sealing materials, and verifying that your unit’s cooling output (measured in British Thermal Units or BTUs) matches the volumetric demands of the target space.

Pre-Optimization Checklist

• Essential Tools & Materials:


  • R-4.0 to R-6.0 flexible thermal insulation sleeve or foil-faced fiberglass duct wrap.
  • High-density EPDM closed-cell foam weatherstripping (1/2-inch to 1-inch width).
  • Foil scrim kraft (FSK) thermal tape or heavy-duty aluminum foil tape (do not use cloth duct tape).
  • No-rinse evaporator coil cleaner spray and a soft bristled nylon coil brush.
  • Digital psychrometer or infrared thermal imaging camera (for temperature delta and leak detection).
• Mandatory Prerequisites & Standard Benchmarks:


  • Target Sizing Rule: 20 BTUs per square foot of living space under standard 8-foot ceiling conditions (adjust +10% for high solar gain rooms).
  • Standard Airflow Benchmark: 150 to 250 CFM (Cubic Feet per Minute) depending on tonnage.
  • Target Temperature Differential (Delta-T): 18°F to 22°F difference between return air intake and supply air vent.
• Resource & Operational Benchmarks:


  • Estimated Material Budget: $30 to $80 total material cost.
  • Execution Time: 60 to 90 minutes for full mechanical and ducting optimization.

Step-by-Step Thermal & Mechanical Optimization Guide

Step 1: Wrap and Shorten the Exhaust Hose

The primary source of efficiency loss in a portable air conditioner is the factory plastic exhaust hose. During operation, compressor exhaust temperatures reach 115°F to 135°F. Because uninsulated plastic hoses have an extremely low thermal resistance (less than R-1), the hose acts as a space heater, emitting hundreds of BTUs of radiant heat back into the room you are trying to cool.

1. Position the portable AC as close to the window vent panel as possible without exceeding the minimum manufacturer clearances (typically 12 to 18 inches for return airflow).
2. Straighten the flexible exhaust hose to remove all unnecessary bends, sags, and excess length. Every 90-degree turn reduces system CFM by approximately 10% and increases static backpressure on the condenser fan.
3. Cut an R-4.0 flexible duct insulation sleeve to match the length of the compressed exhaust hose.
4. Slide the thermal sleeve over the exhaust hose, securing both ends with heavy-duty aluminum foil tape to ensure an airtight thermal barrier.

Pro-Tip: Keep the exhaust hose as short and straight as possible. Reducing duct length from 6 feet to 3 feet lowers static pressure, allowing the condenser fan to eject hot air faster while minimizing the surface area available for thermal bleed-back.

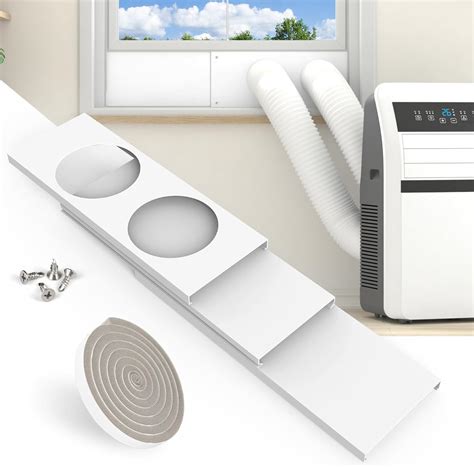

Step 2: Seal the Window Kit Interface Hermetically

Factory window slider kits leave substantial gaps between the window sash, frame, and sliding plastic tracks. These gaps allow outdoor hot, humid air to infiltrate the room, increasing both the sensible and latent cooling loads on the air conditioner.

1. Clean the window frame tracks and sash surfaces using isopropyl alcohol to remove dust and debris.
2. Apply high-density EPDM closed-cell foam tape along the perimeter edges of the plastic window slider kit.
3. Insert the slider panel into the window opening, compressing the foam tape tightly to eliminate light leaks and micro-drafts.
4. Apply foam backer rod or weatherstripping into the gap created between the upper and lower glass panes of double-hung windows.
5. Seal the connection point where the exhaust hose nozzle snaps into the window slider panel using aluminum foil tape to eliminate warm air recirculation.

Warning: Never use standard cloth-backed duct tape for high-temperature exhaust connections. The adhesive degrades quickly under exposure to UV light and 120°F exhaust temperatures, leading to air leaks and adhesive residue. Use high-tack aluminum foil tape rated for HVAC applications.

Step 3: Counteract Negative Air Pressure Infiltration

Single-hose portable air conditioners pull conditioned air from inside the room, blow it across the hot condenser coils to cool them, and blast that heated air outside. This process creates a negative static pressure vacuum inside the room. Consequently, warm, humid air from unconditioned spaces (attics, hallways, outdoor cracks) is sucked into the room through doors, keyholes, and wall outlets.

1. Transform the room into a sealed micro-zone by keeping all interior doors closed to prevent drawing hot air from neighboring rooms.
2. If using a dual-hose unit, ensure the intake hose is fully insulated and tightly sealed at the window slider to prevent drawing in radiant heat from the adjacent exhaust port.
3. For single-hose units, install a temporary air intake damper or ensure secondary rooms feeding infiltration air remain as cool as possible.
4. Position the unit away from direct heat sources, sunlight, and heat-generating appliances to prevent false internal thermostat readings.

Step 4: Maximize Evaporator Coils Airflow and Clean Filters

Airflow restriction reduces sensible heat transfer across the evaporator coil, forcing the refrigerant evaporating temperature to drop. If airflow drops too low, the coil will freeze, blocking airflow entirely and risking liquid slugging damage to the compressor.

1. Pull out the washable mesh pre-filters located on the rear and side return air intakes.
2. Wash filters under warm tap water every 14 days during peak cooling season; use mild dish soap if grease or heavy oil film is present.
3. Allow filters to dry completely before reinstallation to prevent mold growth on the evaporator fins.
4. Spray the internal evaporator coils once per season with a self-rinsing foaming coil cleaner to dissolve bio-film, dust, and micro-particles that reduce thermal conductivity.
5. Straighten any bent aluminum coil fins using a dedicated HVAC fin comb matching your unit's fins-per-inch (FPI) rating.

Step 5: Implement Solar Gain Mitigation and Internal Load Management

A portable AC should not have to fight unnecessary external heat gain. Radiant heat from direct sunlight entering through unshaded glass can add 30 BTU per square foot per hour to your thermal load, easily overpowering mid-sized portable units.

1. Close reflective blinds, blackout curtains, or solar window shades on all south- and west-facing windows during peak daylight hours.
2. Set ceiling fans to rotate counterclockwise at medium speed. This breaks up room thermal stratification without creating high-velocity drafts that mix hot ceiling air into the lower breathing zone.
3. Turn off high-wattage electronics, incandescent lighting, and secondary computers inside the conditioned space during the hottest hours of the day.

System Optimization Metrics & Efficiency Performance Matrix

The following table demonstrates the quantitative efficiency gains, implementation metrics, and technical requirements associated with each optimization strategy:

Operational Diagnostic & Field Troubleshooting Guide

Scenario 1: Air Conditioner Runs Continuously But Room Temperature Will Not Drop

• Root Cause: Severe thermal short-circuiting occurring at the window exhaust kit or extreme negative pressure pulling unconditioned air through floorboards and doors equal to the fan discharge rate.
• Actionable Fix: Use an infrared thermometer to scan the window kit perimeter and exhaust connection for heat leaks above 90°F. Reseal all gaps using closed-cell foam tape and aluminum foil tape. Verify that the return air filter is completely clean and that the exhaust duct length is under 4 feet with zero sharp kinks.

Scenario 2: Supply Air Vents Throw Warm Air or Ice Forms on Evaporator Coils

• Root Cause: Static backpressure caused by an over-extended/kinked exhaust line, or severely restricted return airflow across the evaporator coil causing refrigerant suction pressure to drop below freezing.
• Actionable Fix: Turn off the unit immediately and run the fan-only mode for 45 minutes to melt internal ice buildup. Remove, wash, and dry the air filters. Ensure the flexible exhaust hose is shortened to its minimal length without any sharp bends. Spray the evaporator coils with no-rinse coil cleaner to restore air velocity.

Scenario 3: Compressor Short-Cycles (Turns On and Off Every Few Minutes)

• Root Cause: Thermal overload protection tripping due to excessive condenser head pressure or thermal bleed-back trickling toward the internal ambient temperature sensor.
• Actionable Fix: Move the unit away from dark walls or direct sunlight that artificially heats the chassis. Wrap the hot exhaust hose in reflective R-4.0 insulation to prevent heat from radiating onto the unit's onboard thermostat sensors. Clear all dust blockages from the lower condenser intake grilles.

Frequently Asked Questions

Does wrapping a portable AC hose actually increase cooling performance?

Yes, wrapping the exhaust hose in thermal insulation (minimum R-4.0) provides immediate performance gains. Uninsulated factory plastic hoses reach surface temperatures over 120°F, radiating significant sensible heat back into the room. Wrapping the duct contains this heat inside the exhaust stream, allowing the room to cool down up to 40% faster.

Why are single-hose portable air conditioners inherently inefficient?

Single-hose units use conditioned air from inside the room to cool down the hot compressor coils, expelling that air outside. This creates a vacuum effect (negative air pressure) inside the room, which continuously pulls hot, unconditioned air into the home from outside through cracks, doors, and window gaps.

What is the ideal thermostat setting for a portable air conditioner?

The optimal efficiency setting for a portable air conditioner is 75°F (24°C). Setting the thermostat lower (such as 60°F) will not make the unit blow colder air; it simply forces the compressor to run continuously without stopping, drastically increasing electricity usage without improving sensible heat exchange rates.

How short should the exhaust hose on a portable AC be?

The exhaust hose should be kept as short and straight as possible, ideally between 2 and 3 feet long. Minimizing hose length reduces airflow restriction (static backpressure) on the condenser fan, allows the unit to dump heat efficiently, and minimizes the surface area radiating heat back into the space.

Can I vent a portable air conditioner into another room or hallway?

No, venting a portable air conditioner into an adjacent interior room or hallway is ineffective. The unit expels more total heat energy than it removes cold air. Venting indoors will rapidly overheat the adjacent space and cause warm air to migrate back into the cooled room through negative pressure drafts. Always vent exhaust air directly outdoors.

Take Control of Your Home Microclimate

Optimizing your portable air conditioner requires systematic elimination of radiant heat sources and proper management of internal room pressure dynamics. By insulating your exhaust ductwork, hermetically sealing window panels, and maintaining coil cleanliness, you transform an inefficient temporary appliance into a high-performance cooling system.
