How To Make A Pocket Hole: The Ultimate Guide To Professional Wood Joinery

Creating a pocket hole involves drilling a specialized counterbored hole at a shallow 15-degree angle into one workpiece to join it to another using a self-tapping washer-head screw. This mechanical fastening technique requires precise calibration of the drill bit depth and jig positioning based on material thickness to ensure the screw exits the center of the workpiece’s edge for maximum structural integrity.

Essential Infrastructure and Material Standards for Pocket Joinery

Before initiating any drilling, a woodworker must understand that pocket hole joinery is a system of three distinct components: the jig, the specialized step drill bit, and the pocket-hole screw. Unlike traditional joinery which relies on friction and glue surface area, pocket holes create a high-strength mechanical clamp. Precision in the preparation phase prevents the most common failure point—screw protrusion through the "show side" of the finished project.

Required Tooling and Equipment Inventory

To achieve professional-grade results, the following technical kit is mandatory:

• Pocket Hole Jig: A tool featuring hardened steel drill guides, adjustable for various material thicknesses (typically ranging from 1/2-inch to 1-1/2-inch).
• Step Drill Bit: A specialized bit with a 1/8-inch diameter pilot tip and a larger 3/8-inch diameter shoulder that creates the flat-bottomed pocket for the screw head.
• Stop Collar and Hex Key: A depth-stop ring that locks onto the drill bit to limit its travel.
• Specialized Pocket Screws: Self-tapping screws with a washer-head design. Do not substitute standard wood screws, as their countersink heads will act as wedges and split the pocket.
• High-Torque Drill: A corded or cordless drill (an impact driver is often too aggressive for the initial drilling but excellent for driving screws into hardwoods).
• Face Clamps: Essential for keeping workpieces flush during assembly to prevent "joint crawl."
• Digital Calipers or Setup Gauge: Used to verify material thickness, as nominal lumber sizes (e.g., a 1x4) vary from actual dimensions.

Project Benchmarks and Technical Scope

• Estimated Setup Time: 5 to 10 minutes for calibration.
• Execution Time: 15 to 30 seconds per hole.
• Cost Estimate: Entry-level manual jigs start at $20, while professional benchtop systems can exceed $200.
• Material Compatibility: Ideal for softwoods, hardwoods, and plywood. Not recommended for MDF or particle board in high-stress applications due to low screw-holding power.

Master the Pocket Hole Workflow: Precision Execution Steps

The success of a pocket hole joint is determined before the drill even touches the wood. Following a systematic calibration process ensures that the screw enters the second board exactly in the center of its thickness, providing the strongest possible mechanical bond.

Step 1: Accurate Material Thickness Measurement

Never assume the thickness of your lumber. A board sold as 3/4-inch (nominal) may actually be 23/32-inch. Use a setup gauge or calipers to find the exact thickness. This measurement dictates two critical settings: the height of the drill guides on your jig and the position of the stop collar on your drill bit.

Pro-Tip: If joining two boards of different thicknesses, always set your jig and bit depth based on the thickness of the board you are drilling into (the one that will contain the pocket).

Step 2: Calibrating the Drill Bit Stop Collar

Loosen the stop collar on your step drill bit. Most modern jigs include a molded-in scale. Place the bit in the scale and align the "shoulder" of the bit (the point where it transitions from the 1/8-inch pilot to the 3/8-inch body) with the mark corresponding to your material thickness. Tighten the hex screw firmly. If the collar slips during drilling, you will likely drill through the end of your board, ruining the workpiece.

Step 3: Adjusting the Jig Guide Height

Adjust the hardened steel drill guides on your jig to match your material thickness. On portable jigs, this usually involves sliding the guide block up or down. On benchtop models, it may involve adjusting the base plate. This adjustment ensures that the pilot hole exits precisely in the middle of the board’s edge. If the guide is set too low for the material, the screw will exit too close to the "back" of the board; if set too high, it will exit too close to the "front," resulting in a weak joint or visible screw tips.

Step 4: Positioning and Clamping the Workpiece

Place your workpiece into the jig. For a standard 1x4 board (3.5 inches wide), position two holes roughly 5/8-inch to 1-inch from each edge. This prevents the board from spinning or pivoting. Use a heavy-duty clamp to secure the board against the jig. Any movement during drilling will result in an oval-shaped hole that compromises screw seating.

Warning: Ensure there are no knots or metal fasteners in the path of the drill bit. Hitting a knot can cause the bit to wander, while hitting metal will instantly dull or snap the specialized pilot tip.

Step 5: Boring the Pocket Hole

Insert the bit into the guide while the drill is OFF. Pull the bit back about 1/2-inch from the wood surface. Start the drill at full speed (high RPM is better for clean cuts) and then plunge into the wood. Use a "pecking" motion—plunge in an inch, pull back slightly to clear chips, and plunge again—until the stop collar hits the drill guide. Let the bit come to a complete stop before withdrawing it to ensure a clean, burr-free entry.

Step 6: Choosing the Correct Screw Thread and Length

Selecting the right screw is as important as drilling the hole.

• Coarse-Thread Screws: Use for softwoods (pine, cedar, fir) and sheet goods (plywood, melamine). These have larger threads that bite into the soft fibers.
• Fine-Thread Screws: Use for hardwoods (oak, maple, cherry, walnut). Fine threads prevent splitting the dense grain.
• Screw Length: For 3/4-inch material, the industry standard is a 1-1/4-inch screw. For 1/2-inch material, use 1-inch screws. For 1-1/2-inch material (like 2x4s), use 2-1/2-inch screws.

Step 7: Final Assembly and Clamping

Apply a thin bead of wood glue to the mating surface. Position the two boards together. Use a face clamp to bridge the joint; the large pads of the clamp should press the two faces of the boards perfectly flush. This is critical because the angle of the pocket screw naturally wants to "push" the receiving board away or "pull" it out of alignment. Drive the screw until the washer head seats firmly against the flat shoulder of the pocket. Do not over-torque, especially in softwoods, as this can strip the "threads" created in the wood.

Material Thickness and Screw Selection Reference Chart

The following table provides the technical specifications required to ensure joint integrity across standard lumber dimensions.

Common Joinery Failures and Professional Field Fixes

Even with precise tools, environmental factors and material defects can cause assembly issues. Understanding the root cause of these failures allows for rapid correction.

• Scenario: The screw tip protrudes through the face of the second board.




  • Root Cause: Incorrect stop collar depth or using a screw that is too long for the material thickness.
  • Actionable Fix: Back the screw out. If the hole isn't too damaged, reset the stop collar slightly shallower (move it toward the drill tip) or switch to a shorter screw. If the wood is damaged, patch with a mixture of wood glue and sawdust before re-driving.

• Scenario: The joint "crawls" or misaligns during screw driving.




  • Root Cause: Insufficient clamping pressure on the joint faces. The 15-degree angle of the screw exerts a diagonal force that shifts the boards.
  • Actionable Fix: Use a dedicated pocket hole face clamp with large circular pads. Ensure the clamp is centered directly over the joint line. For large panels, use multiple clamps and drive screws incrementally rather than one at a time.

• Scenario: The wood splits when driving the screw.




  • Root Cause: Using coarse-thread screws in dense hardwood or failing to use a screw with a self-tapping (Type 17) point.
  • Actionable Fix: Switch to fine-thread screws. If splitting persists, drill a small pilot hole into the receiving board through the pocket hole pilot to relieve internal pressure.

• Scenario: The screw head pulls right through the bottom of the pocket.




  • Root Cause: Using standard countersink wood screws (bugle head) instead of washer-head pocket screws, or excessive drill torque.
  • Actionable Fix: Replace the screw with a proper washer-head pocket screw. Reduce the clutch setting on your drill so it stops driving once the head is seated.

Frequently Asked Questions

Do I need to use glue with pocket holes?

While the mechanical clamp of the screw is incredibly strong, adding a thin layer of wood glue to the mating surfaces significantly increases the joint's shear strength and longevity. Since pocket holes are often used on end-grain-to-long-grain joints (which are notoriously weak for glue alone), the screw acts as a permanent clamp while the glue cures.

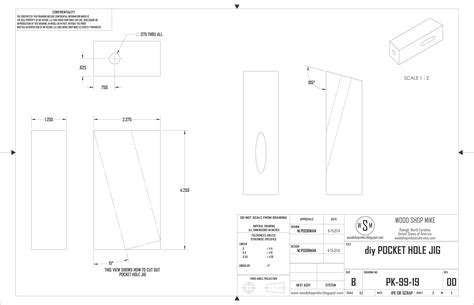

Can I make pocket holes without a specialized jig?

It is possible using a "freehand" method where you drill a shallow vertical hole with a Forstner bit and then drill a pilot hole at an angle, but this is highly inaccurate. The lack of a hardened steel guide leads to bit wander and inconsistent exit points, which compromises the structural integrity of the joint.

Why are my pocket holes "fuzzy" or torn out at the entrance?

Tear-out is usually caused by a dull drill bit or running the drill at too low an RPM. For the cleanest holes, use a high-speed setting and ensure the drill bit is sharp. If you are working with expensive plywood, placing a piece of blue painter's tape over the area before drilling can help prevent splintering.

How do I hide pocket holes in finished furniture?

You can use specialized pocket hole plugs made of matching wood species (oak, pine, maple). These are glued into the hole and sanded flush. For painted projects, plastic plugs or wood filler can be used, though wood filler may require multiple applications due to shrinkage.

Are pocket holes strong enough for heavy-duty furniture like beds or tables?

Yes, pocket holes are exceptionally strong when used correctly in frames, aprons, and carcasses. However, for maximum stability in large tables, they are often used in conjunction with other fasteners or traditional joinery to account for wood movement across large spans.

Enhance Your Woodworking Precision

Mastering the pocket hole is the fastest way to transition from basic DIY projects to professional-grade furniture construction. By adhering to these calibration standards and material specs, you ensure every joint is flush, square, and built to last a lifetime.
