Comprehensive Guide To Creating Circle Patterns In KLayout For Semiconductor Design

Mastering circle patterns in KLayout requires a strategic approach to vertex discretization and parametric cell management to ensure geometric fidelity during lithography. By balancing vertex density with database unit constraints, designers can produce high-precision radial arrays and annular structures that meet the rigorous tolerances of GDSII and OASIS industry standards.

Technical Requirements and Pre-Layout Configuration

Before initiating a circular design in KLayout, the designer must establish a workspace that supports high-resolution geometry without compromising the computational efficiency of the layout file. Unlike vector-based graphic design software, semiconductor layout tools represent circles as N-sided polygons, meaning the "smoothness" of a circle is a direct function of its vertex count.

• Essential Software Environment: KLayout version 0.28.0 or higher is recommended to utilize the latest parametric cell (PCell) features and Python/Ruby integration enhancements.
• Mandatory Technical Prerequisites: Understanding of the Database Unit (DBU), typically set to 0.001 micrometers (1 nanometer). A mismatch between the DBU and the desired circle resolution can lead to "snapping" errors where vertices are forced onto a grid, distorting the circularity.
• Standard Geometric Constants: Familiarity with the Sagitta error (the maximum distance between the ideal arc and the chord of the polygon side) is vital for calculating the required vertex count for specific lithographic nodes.
• Estimated Duration: Manual circle creation takes approximately 2 minutes, while complex radial array scripting setup may require 30 to 60 minutes of configuration.
• Required Libraries: Ensure the Basic Library is loaded, as it contains the native CIRCLE and DONUT PCells necessary for parametric manipulation.

Executing Circular Geometries: From Single Polygons to Complex Radial Arrays

The following procedures detail the multi-method approach to generating circular patterns, ranging from simple graphical entry to advanced array distribution.

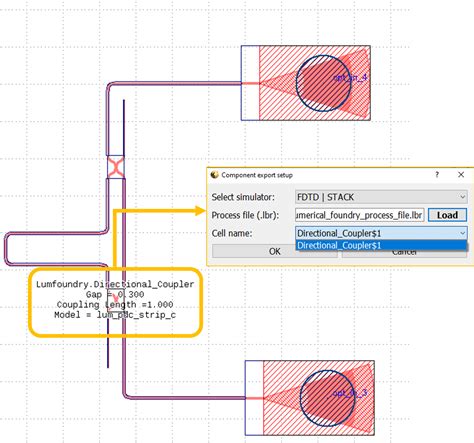

Step 1: Deploying the Basic Circle Parametric Cell

The most efficient way to create a precise circle is through the PCell system rather than the manual polygon tool. Using a PCell ensures that the shape remains editable even after placement.

1. Open your layout and select the desired layer from the Layer Panel on the right.
2. Navigate to the Instance Toolbar or go to Edit, then choose Instance.
3. In the Library dropdown menu, select Basic.
4. From the Cell list, select CIRCLE.
5. In the PCell Tab, define the Radius in micrometers. For a standard test pattern, a radius of 5.0 is often used.
6. Set the Number of Points. For a standard 180nm process, 64 points are typically sufficient; for 28nm and below, 128 or 256 points may be required to minimize edge roughness.
7. Click on the canvas to place the center of the circle.

Step 2: Configuring Radial and Linear Arrays

Once a single circle (the seed) is established, you must often arrange it in a pattern. For a linear grid, the Instance tool provides a robust interface, but for a circular pattern (radial array), the process involves rotation and polar coordinate placement.

1. Select the circle instance you created in Step 1.
2. Open the Selection Properties by pressing Q or right-clicking and selecting Properties.
3. To create a linear pattern, go to the Array Instance tab and enter the number of rows and columns, along with the displacement vectors (step size).
4. To create a radial pattern (circles arranged in a ring), you must use the Selection / Make Array function or a script. If doing this manually, you will use the Rotate tool combined with the Copy/Paste function.
5. Set the rotation center at the desired origin. Copy the circle and paste it with a specified angular increment (e.g., 30 degrees for a 12-circle ring).
6. Ensure that each instance maintains its link to the original PCell so that changing the radius of one circle updates all circles in the pattern simultaneously.

Step 3: Creating Annular Rings and Doughnut Patterns

In many MEMS and photonics designs, a solid circle is insufficient; an annular ring (a "doughnut") is required.

1. From the Basic Library, select the DONUT PCell.
2. Define the Inner Radius and the Outer Radius. The width of the ring is the difference between these two values.
3. Adjust the Number of Points. High vertex counts are even more critical here to maintain a consistent width throughout the 360-degree sweep.
4. If the DONUT PCell is unavailable, place two concentric circles on the same layer. Select both, go to the Edit menu, select Layer Operations, and use the Boolean Subtract (A-B) function. Note that this converts the PCells into static polygons, which are no longer parametrically editable.

Step 4: Optimizing for Grid Snapping and DBU Alignment

A common failure in KLayout is the "off-grid" vertex. When a circle is generated, its vertices are calculated using floating-point math, but they must eventually reside on the DBU grid.

1. Go to File, then Layout Properties.
2. Verify the Database Unit. If you are working on a nanometer-scale process, ensure the DBU is 0.001.
3. After placing your circle pattern, use the Edit menu, then select Layer, and choose Snap to Grid.
4. Inspect the vertices at high zoom. If the circle appears "dented," increase the vertex count or reduce the DBU size to allow the polygon to approximate the curve more accurately.

Step 5: Advanced Scripting for High-Density Patterns

For patterns involving hundreds of circles arranged in logarithmic spirals or complex lattices, manual placement is prone to error.

1. Open the Macro Development window from the Tools menu.
2. Create a new script (Python or Ruby).
3. Define a loop that iterates through your desired count. Inside the loop, calculate the X and Y coordinates using the formula: X = CenterX + Radius * cos(Angle) and Y = CenterY + Radius * sin(Angle).
4. Use the layout's cell.insert method to place a new instance of your circle cell at each calculated coordinate.
5. This method allows for the creation of "Phyllotaxis" patterns or Fresnel Zone Plates which would be impossible to align manually.

Vertex Density and Geometric Fidelity Specifications

The following table provides the technical relationship between the number of vertices used to represent a circle and the resulting geometric error (Sagitta). These values assume a 1-micrometer radius circle and a standard 0.001 DBU.

Resolving Geometry Distortions and Data Volume Bottlenecks

Even experienced designers encounter issues when translating circular patterns into physical masks. Below are the most common failure modes and their technical remedies.

• Scenario: Circle Edges Appear Jagged or Non-Uniform




  • Root Cause: The vertex positions are snapping to a coarse grid because the Database Unit (DBU) is too large relative to the circle's radius.
  • Actionable Fix: Reduce the DBU in the Layout Properties to 0.0001 (0.1 nm) if the process allows, or increase the number of vertices to ensure that the snap-induced displacement is sub-nanometer and visually negligible.

• Scenario: File Size Becomes Unmanageable (GDSII Bloat)




  • Root Cause: Circular patterns are being placed as individual polygons rather than instances of a single cell, or the vertex count is unnecessarily high (e.g., 512 points for a large circle).
  • Actionable Fix: Convert circular patterns into a single Cell. Use "Instances" to repeat that cell throughout the layout. This ensures the geometry is defined once in the file header and merely referenced at different coordinates, drastically reducing the file size.

• Scenario: Boolean Errors During Design Rule Checks (DRC)




  • Root Cause: Overlapping vertices or self-intersecting polygons caused by placing concentric circles or rings with identical radii.
  • Actionable Fix: Run the "Merge Polygons" command (Edit > Layer > Merge) after creating circular patterns to flatten overlapping geometries into a single contiguous shape, eliminating zero-width gaps that trigger DRC violations.

Frequently Asked Questions

Is there a true circle object in KLayout?

No, the GDSII and OASIS file formats do not support true mathematical circles or splines. All circular shapes must be discretized into polygons. KLayout uses Parametric Cells (PCells) to simulate a circle by automatically generating a polygon with a user-defined number of vertices.

How do I change the number of vertices after the circle is drawn?

If the circle was created using the Basic Library PCell, you can select the circle, press Q to open Properties, and navigate to the PCell tab to update the "Number of points" field. If the circle has already been "flattened" into a static polygon, you cannot change the vertex count easily and must redraw the shape.

Can I create a pattern of circles along a curved path?

This is best achieved through a script or the "Path to Poly" conversion tool. You can draw a path, then use a script to iterate along the path's coordinates, placing a circle instance at specific intervals. There is no native "Follow Path" array tool in the standard GUI.

What is the maximum number of vertices allowed for a circle?

While KLayout can handle thousands of vertices, most mask shops and GDSII readers have a limit of 4,000 to 8,192 vertices per polygon. For extremely high-fidelity circles, it is better to use 256 or 512 vertices, as anything higher provides diminishing returns in lithographic quality while significantly slowing down software performance.

Enhance Your Layout Precision

Implementing professional-grade circle patterns is the foundation of high-performance semiconductor and photonics design. To further optimize your workflow, consider developing custom Python macros that automate these geometric calculations for your specific process design kit.
