How To Install OpenTabletDriver On Linux: A Comprehensive Technical Guide

OpenTabletDriver provides a cross-platform, user-mode tablet driver that serves as the gold standard for digitizer configuration on Linux by bypassing kernel-level limitations and offering granular input mapping. Installation requires ensuring that the udev rules are correctly configured to provide the driver with appropriate device permissions, followed by the execution of the user-space daemon to enable hardware communication.

Preparing Your Linux Environment for Tablet Driver Integration

Before initiating the software installation, you must confirm that your distribution is ready to handle raw HID (Human Interface Device) communication. Because OpenTabletDriver operates in user-mode, it relies heavily on the udev subsystem to claim hardware interfaces from the kernel. Without these permissions, the application will launch but fail to detect your tablet.

• Essential Prerequisites:
• Kernel Version: Linux 5.0 or newer is highly recommended to ensure stable USB HID support.
• Desktop Environment: The driver is compatible with X11 and Wayland, though specific pointer constraints may apply depending on your compositor.
• Dependencies: Ensure the following libraries are present: libevdev, libx11, libxi, libxext, and the dotnet-runtime version 6.0 or higher.
• System Permissions: You must have sudo privileges to write files to the /etc/udev/rules.d/ directory.
• Time Investment: Approximately 15 to 20 minutes for environment verification and configuration.

Executing the OpenTabletDriver Installation and Daemon Setup

The most reliable method for installing OpenTabletDriver across various distributions—including Arch, Fedora, and Debian-based systems—is through the release binaries, as these ensure compatibility with the embedded .NET runtime.

Step 1: Installing the Required .NET Runtime

OpenTabletDriver is built on .NET. You must install the runtime to execute the binary. Most modern package managers facilitate this via repositories. On Ubuntu or Debian, utilize the apt package manager to install the aspnetcore-runtime-6.0 or the runtime-6.0 package. If you are on Arch Linux, the pacman command for dotnet-runtime-6.0 will suffice. Verify the installation by running dotnet --version in your terminal to ensure the environment is correctly initialized.

Step 2: Downloading the Official Release Archive

Navigate to the official OpenTabletDriver GitHub repository releases page. Locate the latest stable release and download the Linux-specific tarball, typically labeled as OTD.Linux.tar.gz. Move this file to a dedicated directory in your home folder, such as ~/Applications/OpenTabletDriver, and extract the contents. Do not install the application to system-protected directories like /usr/bin unless you are performing a manual global installation, as this can complicate future updates.

Step 3: Configuring Udev Rules for Hardware Access

This is the most critical technical step. OpenTabletDriver requires permission to access the raw USB device. Within the extracted directory, locate the file named 70-opentabletdriver.rules. Copy this file into your system rules folder by executing a command to move it into /etc/udev/rules.d/. After placing the file, you must reload the udev daemon and trigger a device re-enumeration. Failure to perform this step will result in the driver reporting that no device is found even when the tablet is physically plugged into a USB port.

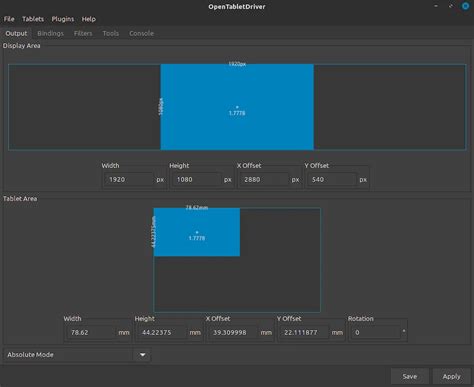

Step 4: Launching the Daemon and Graphical Interface

Navigate to the directory where you extracted the driver. You will see an executable file named OpenTabletDriver. Launch this from your terminal to observe any real-time initialization errors. If the device initializes correctly, you will see a success message indicating the tablet is connected. If you wish to have this run on startup, add the executable to your desktop environment's autostart list, ensuring that it launches after the graphical session has initialized.

Technical Comparison of Input Driver Methods

The following table outlines the differences between standard kernel drivers and the OpenTabletDriver approach regarding system performance and user customization.

Troubleshooting Common Driver and Connection Failures

When OpenTabletDriver fails to interact with your hardware, the issue usually stems from either competing driver conflicts or permission errors.

• Issue: Tablet Detected but No Cursor Movement.




  • Root Cause: Another driver (such as wacom or xf86-input-wacom) may be claiming the device at the kernel level.
  • Actionable Fix: Create a blacklist file in /etc/modprobe.d/ to prevent the kernel from loading the standard wacom module, or use the xinput disable command to disable the tablet in your X11 session.

• Issue: Application Fails to Launch.




  • Root Cause: Incompatible or missing .NET runtime versions.
  • Actionable Fix: Check the console output when launching the binary; if it reports a runtime error, ensure you have specifically installed version 6.0 or 8.0 as requested by the current release.

• Issue: Tablet Disconnects Randomly.




  • Root Cause: USB autosuspend settings in the Linux kernel.
  • Actionable Fix: Disable USB power management for your specific device by editing the /sys/bus/usb/devices/ configuration to set power/control to on, or update your TLP/Laptop-mode-tools configuration to ignore the tablet’s Vendor ID and Product ID.

Frequently Asked Questions

Does OpenTabletDriver support Wayland compositors?

Yes, OpenTabletDriver supports Wayland, but functionality depends on the specific compositor's implementation of the virtual input protocol. Some Wayland compositors may require additional configuration to allow the driver to inject input events into the workspace.

Can I use OpenTabletDriver with multiple tablets?

Yes, the application supports multiple device profiles. You can assign different hardware profiles to different tablets within the graphical interface, allowing you to switch between them without manually restarting the daemon.

How do I update OpenTabletDriver on Linux?

Updates are performed by downloading the latest archive from the release page and replacing your existing binary folder. Because your configuration is stored in your home directory, your settings and custom mappings will persist through the update process.

Is root access required to run the driver?

No, OpenTabletDriver is specifically designed to run as a user-level application. The only time root access is required is during the initial setup of udev rules, which grants the driver permission to talk to the hardware without needing elevated privileges during runtime.
