How To Light A Furnace Pilot Light: A Step-by-Step Technical Guide
Lighting a furnace pilot light safely requires locating the gas control valve, turning it to the pilot position, depressing the safety button while applying an external flame, and holding it for 30 to 60 seconds until the thermocouple generates enough millivoltage to keep the gas valve open. Adhering strictly to manufacturer protocols and natural gas safety protocols prevents delayed ignition and hazardous gas accumulation.
Pre-Operation & Safety Checklist
Before attempting to ignite your heating system's pilot assembly, understanding the underlying mechanical layout and ensuring adequate safety measures are in place will prevent accidental gas leaks or component damage. Modern heating appliances utilize varying control configurations, but the foundational safety checks remain consistent across residential gas furnaces.
- Essential tools and materials: A long-reach utility lighter or extended match, a flashlight or headlamp, a clean wire brush or pipe cleaner for clearing port debris, and a digital multimeter for diagnostic verification.
- Mandatory prerequisite standards: Verify that your home is equipped with a functional carbon monoxide (CO) detector, confirm that no lingering odor of gas is present in the utility space, and reference the specific lighting instructions printed on the furnace service panel.
- Estimated duration and cost benchmarks: The procedure takes approximately 10 to 15 minutes to complete and costs nothing if performed independently, whereas professional HVAC service call benchmarks generally range from $100 to $250.
Step-by-Step Pilot Ignition Workflow
Step 1: Locate the Gas Control Valve and Turn Off the System
Locate the gas control valve on your furnace, which is typically situated near the bottom of the unit behind the main access panel. Turn the dial from the "On" or "Heating" position to the "Off" position. Wait a minimum of five minutes to allow any residual, unburned gas to completely dissipate from the combustion chamber and burner compartment before proceeding.
Warning: Never attempt to light a pilot light immediately after smelling gas or if you suspect a gas leak. Ventilate the area immediately, evacuate all occupants, and contact your local gas utility provider from a safe location.
Step 2: Remove Access Panels to Expose the Burner Assembly

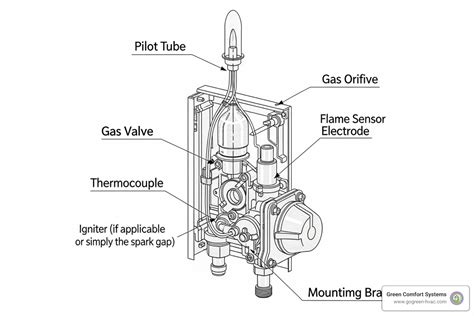

Carefully remove the outer furnace door and the inner combustion chamber cover or burner access shield to gain direct line-of-sight access to the pilot assembly, the main burner manifold, and the thermocouple. Use your flashlight to locate the pilot tube, the burner tube, and the metal thermocouple probe extending adjacent to the pilot hood.
Step 3: Set the Gas Valve to the Pilot Position
Rotate the main gas control knob or slide the switch from the "Off" position to the designated "Pilot" setting. This mechanical adjustment positions the internal gas valve to supply gas exclusively to the small pilot burner line while blocking the primary manifold feed to the main burners.
Step 4: Apply the Ignition Source and Depress the Reset Button
Position the tip of your long-reach utility lighter directly next to the pilot burner head. Firmly press down and hold the reset button or the gas control dial in the "Pilot" position to allow gas to flow into the pilot assembly, and simultaneously ignite the gas using your external flame source.
Pro-Tip: If your lighter flame extinguishes immediately or if the pilot fails to catch, ensure your hand is pressing the reset button straight down without applying lateral torque, which can unseat the valve stem and block gas flow.
Step 5: Maintain Pressure on the Safety Valve
Continue holding down the pilot reset button or control dial firmly for 30 to 60 seconds after the pilot flame is successfully established. This dwell time allows the flame to heat the tip of the thermocouple, generating a small electrical current (typically 15 to 30 millivolts) that energizes the safety magnet inside the gas control valve.
Step 6: Release the Valve and Rotate to On
Slowly release the reset button while observing the pilot flame for 10 to 15 seconds to ensure it remains lit. Once confirmed stable, rotate the gas control knob from the "Pilot" position to the "On" position, replace all burner compartment covers and service panels, and adjust your thermostat to a temperature higher than the ambient room reading to initiate a heating cycle.
How To Light The Pilot Light On My Furnace at Loretta Little blog
Furnace Ignition System Comparison Matrix
| System Type | Ignition Mechanism | Electrical Requirement | Primary Safety Device | Maintenance Complexity |
|---|---|---|---|---|
| Standing Pilot | Continuous small gas flame | None (Millivolt system) | Thermocouple | Low (Manual cleaning required) |
| Electronic Intermittent | Spark electrode/Hot surface | 120V AC household current | Flame sensor / Rectification | Moderate (Sensor cleaning needed) |
| Direct Spark Ignition | High-voltage electric spark | 120V AC household current | Flame sensor / Pressure switch | Moderate-High (Control board checks) |
Common Pilot Light Failures and Field Fixes
Understanding why a pilot light refuses to stay lit helps diagnose underlying hardware degradation versus simple operational errors.
- Root Cause: The pilot flame extinguishes the moment the reset button is released.
- Actionable Fix: The thermocouple is likely faulty, misaligned, or coated in soot. Clean the thermocouple tip with fine-grit sandpaper or a wire brush, ensure the pilot flame directly envelopes the upper third of the probe, or replace the thermocouple assembly if millivolt output falls below 12mV.
- Root Cause: The pilot light will not ignite or gas is not reaching the pilot burner.
- Actionable Fix: The pilot orifice is clogged with dust, carbon deposits, or spider webs. Turn off the gas supply, disassemble the pilot tubing, and clear the tiny aperture using a specialized orifice cleaning needle or compressed air.
- Root Cause: The pilot flame burns yellow or orange instead of a crisp blue.
- Actionable Fix: Improper air-to-gas mixture caused by dust accumulation in the primary air shutter. Clean the burner intake ports and adjust the air shutter screw until a steady blue flame with a distinct inner cone is achieved.
Frequently Asked Questions
Why does my furnace pilot light keep going out?
A pilot light typically goes out due to a draft blowing out the flame, a dirty or misaligned thermocouple failing to maintain electrical continuity, or a partially blocked pilot orifice restricting gas flow. If the thermocouple generates less than 15 millivolts of electrical current when heated, the safety valve will automatically shut off the gas supply.
Can I use a standard kitchen match to light a furnace pilot?
While standard kitchen matches can be used, they are generally not recommended because they burn down too quickly and require you to place your fingers close to the burner compartment. Always use an extended utility lighter or a long fireplace match to maintain a safe distance from potential flare-ups.
What should I do if I smell gas near my furnace?
If you detect the distinct rotten-egg odor of natural gas, immediately turn off the main gas supply valve if it is safe to do so without creating a spark. Evacuate all people and pets from the building immediately, avoid turning on light switches or using mobile devices inside the home, and call your gas utility company or emergency services.
How long should I hold the pilot button down?
You must hold the pilot reset button down for 30 to 60 seconds after lighting the flame. This duration is necessary for the thermocouple to absorb sufficient heat from the flame to generate the required millivoltage that holds the magnetic safety valve open.
How often should a furnace pilot light be serviced?
A standing pilot light system should be inspected, cleaned, and tested annually as part of routine preventative maintenance before the winter heating season begins. Regular professional tune-ups ensure clean combustion, proper venting, and reliable operation of all safety controls.
