Master The Craft: How To Knurl On A Lathe Without Ruining Your Workpiece
Knurling on a lathe is a specialized cold-forming process used to press diamond or straight-line patterns into metal components to improve grip, torque transfer, or aesthetic appeal. Achieving a clean, professional finish requires rigid workholding, precise tool alignment on the centerline, and proper application of extreme pressure and lubrication rather than traditional metal cutting.
Pre-Operation & Equipment Checklist
Achieving a pristine diamond or straight pattern on a cylindrical workpiece requires careful preparation, rigorous equipment alignment, and attention to mechanical safety. Unlike turning or facing operations where material is sheared away, knurling relies on displacement, meaning the tool forces metal to flow into the die cavities. This creates intense radial and lateral loads that can easily deflect long workpieces, bend chuck jaws, or stall the lathe spindle if parameters are ignored.
- Essential Gear, Tools, and Materials:
- Engine lathe with rigid bed and power cross-feed capabilities
- Bump-style or scissor-type knurling tool holder
- High-speed steel (HSS) or hardened alloy steel knurling wheels (diamond pattern, medium pitch typically 0.8mm to 1.0mm)
- Center drill and live center for tailstock support
- High-pressure cutting fluid, tapping fluid, or extreme-pressure (EP) oil
- Brass wire brush and safety glasses
- Mandatory Prerequisite Knowledge and Standards:
- Basic lathe safety practices (no loose clothing, secure chuck keys, zero spindle rotation during measurement)
- Understanding of diametral pitch formulas to prevent double-tracking and pattern drift
- Familiarity with carriage lock engagement and manual feed rates
- Estimated Budget and Duration Benchmarks:
- Intermediate skill level required
- Setup time: 10 to 15 minutes
- Execution time: 2 to 5 minutes per part
Step-by-Step Lathe Knurling Workflow
Step 1: Workpiece Preparation and Material Selection
Turn your cylindrical stock down to the exact target diameter before attempting any forming operations. Measure the diameter with a calibrated micrometer to ensure it is true and concentric.
Warning: Never attempt to knurl raw, unturned hot-rolled bar stock with scale, as it will instantly chip the hardened teeth of your knurling wheels and ruin the surface finish.
Step 2: Rigid Workholding and Tailstock Support
Mount the stock securely in a three-jaw or four-jaw chuck, ensuring minimal overhang to eliminate chatter and deflection. If the workpiece length-to-diameter ratio exceeds three to one, you must support the outer end with a heavy-duty live center in the tailstock. Center-drill the end of the stock accurately to seat the live center firmly without wobbling.
Step 3: Aligning the Knurling Tool on Center
Mount your knurling tool holder rigidly in the quick-change tool post, keeping the overhang as short as possible to prevent spring-back. Bring the tool up to the tailstock dead center or the machined end of your workpiece to verify that the center axis of the knurling wheels aligns precisely with the centerline of the lathe spindle.
Pro-Tip: If the top wheel is even a fraction of a millimeter higher or lower than the bottom wheel or workpiece center, the teeth will scrape the metal instead of displacing it cleanly, resulting in a shredded, overlapping "double-track" pattern.
Step 4: Setting Speeds, Feeds, and Lubrication
Set your lathe to a very slow spindle speed, typically between 80 to 150 RPM, depending on the material diameter. Disengage the lead screw and set the carriage feed to a slow, consistent manual or power feed rate (around 0.005 to 0.010 inches per revolution). Flood the workpiece surface generously with high-pressure cutting fluid or heavy oil to reduce friction and flush away metal chips.

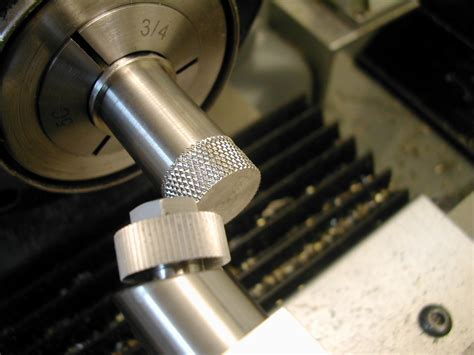

Step 5: Engaging and Forming the Pattern
Position the tool just off the right end of the workpiece. Crank the cross-slide inward until the knurling wheels make firm, even contact with the rotating metal across their entire face width. Engage the lathe power feed or manually feed the carriage slowly across the length of the work.
Warning: Do not pause the carriage while the rotating wheels remain pressed into the spinning metal, or the localized pressure will instantly deform and ruin the profile.
6 Knurls Lathe Knurling Tool Holder Rotating Head Multi Knurl Coarse 5 ...
Comparative Analysis of Knurling Tool Technologies
| Tool Type | Primary Mechanical Action | Best Suited For | Key Advantages | Operational Limitations |
|---|---|---|---|---|
| Bump Knurl | Single or dual wheels pressed downward against the top of the workpiece. | Rigid, short-length stock on robust industrial lathes. | Simple design, highly accessible, affordable tooling cost. | Creates massive side load on the spindle bearings; unsuitable for long or thin stock. |
| Scissor Knurl | Two opposed wheels squeeze the workpiece like pliers via an adjustable linkage. | Long slender shafts, thin-walled tubing, low-rigidity hobby lathes. | Zero lateral or radial load on spindle and workpiece; balances pressure evenly. | Mechanically complex, requires careful jaw adjustment, larger clearance profile. |
| Self-Centering Clamp | Spring-loaded or screw-adjusted pivoting arms cradling the part from multiple sides. | Production environments and quick-change operations. | Fast setup, excellent pressure distribution, highly repeatable results. | Higher initial tooling investment, requires dedicated shank sizes for tool posts. |
Troubleshooting Common Knurling Defects
- Symptom: Double-tracking, crushed diamonds, or feathered metal shreds.
- Root Cause: The knurling wheels are either misaligned with the spindle centerline, the stock diameter is mathematically incorrect for the wheel pitch, or feed pressure was applied too tentatively.
- Actionable Fix: Stop the lathe, clean the workpiece with a wire brush, check the centerline height with a dial indicator, and recalculate your blank diameter so the circumference is an exact multiple of the knurl pitch.
- Symptom: Severe workpiece bending, chatter marks, or loud squealing noises.
- Root Cause: The workpiece has too much unsupported overhang, or the spindle speed is set too high for cold-forming pressures.
- Actionable Fix: Support the outer end with a live center, shorten the chuck stick-out, reduce spindle RPM by half, and apply a heavier grade of extreme-pressure tapping fluid.
- Symptom: Incomplete pattern depth on one end of the part.
- Root Cause: The tool post or the lathe compound rest is slightly swiveled out of parallel alignment with the lathe bed.
- Actionable Fix: Indicate the tool post shank parallel to the cross-slide travel using a dial test indicator before making a pass.
Frequently Asked Questions
Why does my knurled pattern look crushed and jagged?
Crushed patterns usually occur when the knurling tool rubs against the spinning metal instead of biting cleanly into it due to insufficient initial pressure or improper spindle speed. Ensure you plunge the tool firmly into the work on the very first contact and maintain a slow, steady feed rate with abundant lubrication.
How do I calculate the correct blank diameter for knurling?
While exact formulas vary depending on the pitch and tooth profile, a reliable rule of thumb for diamond knurls is to turn the blank diameter roughly 0.010 to 0.015 inches under nominal fractional size to allow for metal displacement outward. Always run a quick test piece on scrap material of the same alloy before working on finished components.
Can I knurl stainless steel or titanium on a lathe?
Yes, but you must use extremely rigid workholding, slow spindle speeds (under 80 RPM), heavy-duty scissor-type tools to balance radial loads, and sulfur-chlorinated cutting oils to handle the high work-hardening rates of these alloys.
Is it safe to knurl by hand feeding the carriage?
Hand feeding is standard practice for short knurled bands or grips, provided you maintain a firm, consistent grip on the handwheel. For long runs across extended shafts, power feed is strongly recommended to maintain a uniform helix angle and prevent operator fatigue.
