How To Know If Your Water Softener Is Working: The Ultimate Diagnostic Guide

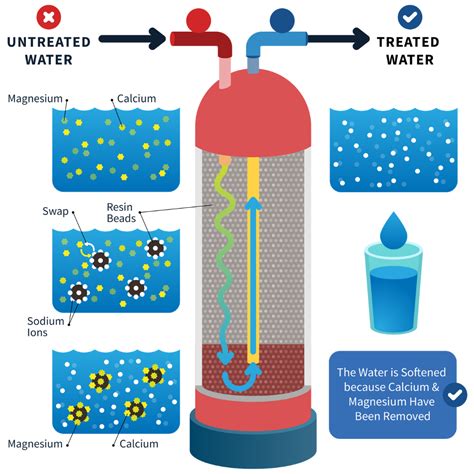

A functioning water softener removes calcium and magnesium ions via ion exchange, typically dropping water hardness to below 1 grain per gallon (gpg). You can verify your system is working through simple physical checks like inspecting soap lather, testing total dissolved solids or hardness with a liquid test kit, and monitoring salt consumption inside the brine tank.
Pre-Operation & Equipment Checklist
Diagnosing an ion-exchange water softener requires a clear understanding of its baseline operating parameters and a few basic testing tools. Before assuming a system failure, verify that your electrical power supply is active, the bypass valve is set to the service position, and the brine tank contains an adequate supply of high-purity salt.
- Essential Tools & Materials: Total hardness liquid test kit (drop-test method), multi-meter for electronic control valve troubleshooting, flashlight, and fresh water softener salt (pellet or crystal form).
- Mandatory Prerequisite Standards: Standard municipal or well water falling between 7.0 and 10.5 grains per gallon (gpg) requires proper resin bed regeneration every 5 to 7 days depending on household water consumption.
- Estimated Time & Cost: Initial physical inspection and soap lather testing take approximately 10 minutes at zero financial cost, while drop-test kits range from 10 to 20 dollars.
Step-by-Step Softener Diagnostic Workflow
Step 1: Perform the Soap Lather and Skin Feel Test
Begin your evaluation by testing the water directly at a bathroom or kitchen tap. Turn on the faucet, wet your hands, and apply a small amount of standard hand soap or dish soap. Rub your hands together vigorously to assess the lather density and rinse feel.
- Turn on the cold water faucet and let it run for 30 seconds to purge stagnant pipe water.
- Lather your hands with soap; a functioning softener will produce rich, thick bubbles immediately using minimal soap.
- Rinse your hands thoroughly; soft water leaves a clean, smooth, non-greasy rinsing sensation, whereas hard water leaves a sticky soap-scum residue on the skin surface.
Pro-Tip: If your skin feels permanently slick or slimy after rinsing, your water is adequately softened, but you may want to check if the control valve is programmed to an unnecessarily high hardness setting.
Step 2: Inspect the Brine Tank and Salt Level
Open the heavy plastic lid of your salt tank, also known as the brine tank, and evaluate the physical state of the salt and water within the reservoir. An inactive system often manifests as stagnant brine or an abnormal salt bridge.
- Shine a flashlight into the interior of the brine tank to check the physical level of the salt media.
- Verify that the salt level sits comfortably above the water level inside the tank, preventing dry cycling.
- Probe gently with a blunt wooden broom handle to check for a "salt bridge," which is a hard, hollow crust of salt suspended over liquid water that prevents the system from dissolving salt for the next regeneration cycle.
Warning: Never use sharp metal tools to break apart a salt bridge inside the brine tank, as puncturing the thin plastic liner will permanently ruin the vessel.
Step 3: Conduct a Quantitative Water Hardness Drop Test
To move beyond subjective sensory checks, utilize a chemical titration drop test kit designed specifically to measure calcium and magnesium carbonate in grains per gallon (gpg) or parts per million (ppm).
- Collect a water sample from a cold water tap (not running through a reverse osmosis system) in the clean glass vial provided in your test kit.
- Add the specified number of indicator drops to the water sample, which will typically turn the liquid a reddish-pink or purple color if hardness minerals are present.
- Add the titration liquid reagent drop by drop, swirling the vial continuously after each drop until the color shifts permanently to blue.
- Multiply the number of drops required to achieve the color change by the conversion factor listed in your kit instructions to determine your exact outlet hardness level in gpg.
Step 4: Manually Trigger a Regeneration Cycle
If your physical and chemical tests indicate hard water, force the control head to initiate a manual regeneration cycle to see if the mechanical components function properly.
- Locate the manual regeneration button on your digital display panel or find the manual cycle knob on older mechanical control valves.
- Press and hold the regeneration button for 3 to 5 seconds until the digital screen displays an active cycle prompt or the mechanical dial begins to click and rotate.
- Listen closely to the control valve as it cycles through the backwash, brine draw, slow rinse, fast rinse, and brine refill phases over the course of 60 to 90 minutes.
- Verify that water discharges continuously through the drain line during the backwash and rinse cycles, confirming that internal piston seals and injectors are not clogged with iron or debris.
Evaluate Your Water Softener Effectiveness 🇺🇸 monthyear
Water Softener Performance Diagnostic Matrix
| Evaluation Method | Target Soft Water Standard | Failing or Hard Water Indicator | Recommended Corrective Action |
|---|---|---|---|
| Soap Lather Test | Immediate, thick, rich bubbles with minimal soap | Water resists foaming; flat, watery lather | Add salt, clear salt bridge, or service resin bed |
| Drop Test Kit | 0 to 1 grains per gallon (gpg) hardness | Greater than 3 gpg measured hardness | Check bypass valve, adjust hardness programming |
| Brine Tank Level | Salt level visibly above water level | Salt level drops rapidly or remains completely static | Inspect injector throat, clean venturi assembly |
| Drain Line Flow | Strong, steady water stream during regeneration | No water flow or continuous trickle to drain | Replace damaged piston seals, clear drain line clog |
Common System Failures & Field Fixes
Understanding typical failure modes prevents premature equipment replacement and ensures optimal ion-exchange efficiency across the lifetime of your appliance.
- Root Cause: Salt Bridging or Mushing in the Brine Tank. Hardened salt crust prevents water from contacting the salt, stopping brine production entirely.
- Actionable Fix: Break up the hard salt crust carefully using a warm water hose or wooden tool, remove any salt sludge at the base of the tank, and use high-purity evaporated salt pellets to prevent future recurrence.
- Root Cause: Resin Bed Fouling from Iron or Sediment. High levels of dissolved iron, manganese, or bacterial slime coat the microscopic negatively charged resin beads, rendering them incapable of attracting hardness ions.
- Actionable Fix: Pour a specialized liquid resin cleaner directly into the brine well and manually initiate a regeneration cycle. For heavily fouled beds, replace the resin media entirely.
- Root Cause: Defective Bypass Valve Position. The system is physically isolated from the household plumbing loop due to the bypass valve being shifted to the untreated position.
- Actionable Fix: Rotate the bypass handles fully to the service position, ensuring inlet and outlet valves are open and the bypass line is completely closed.
- Root Cause: Venturi and Injector Assembly Clogging. Mineral scale, tiny dirt particles, or iron buildup obstructs the tiny nozzle that draws brine from the salt tank into the resin tank.
- Actionable Fix: Unscrew the injector cap, pull out the internal screen and throat assembly, and clean out any obstructions using a toothpick and warm soapy water.
Frequently Asked Questions
How long does a water softener take to start working again after adding salt?
A water softener requires several hours to dissolve solid salt pellets into the water at the bottom of the brine tank to create a saturated brine solution. If your system is currently out of salt, add fresh salt and wait at least two to four hours before manually triggering a regeneration cycle to restore fully softened water to your home.
Why does my water still feel hard even though there is salt in the tank?
If your salt tank is full and your water remains hard, the most common causes are a salt bridge preventing brine creation, a clogged venturi injector, or fouled resin beads that can no longer exchange ions. Additionally, check to ensure your system is not accidentally stuck in the bypass position or running on an incorrect hardness setting on the digital control board.
How often should my water softener regenerate?
Most standard residential water softeners regenerate every 5 to 7 days, though modern metered control valves calculate regeneration timing based on actual water usage volume rather than a strict calendar schedule. If your household size changes or your water hardness fluctuates, you may need to reprogram your control valve settings to optimize salt efficiency and water quality.
Can old water softener resin be cleaned, or does it need to be replaced?
If the resin beads are coated with iron, silt, or organic compounds, specialized resin cleaning chemicals can successfully strip away the contaminants and restore exchange capacity. However, if the resin has degraded structurally due to high chlorine or chloramine exposure over a period of 10 to 15 years, the beads will fracture and lose effectiveness, requiring a complete media replacement.
