How To Know If Your Catalytic Converter Is Bad: Complete Diagnostic Guide

Determining if your catalytic converter is bad requires evaluating a combination of OBD-II fault codes, performance symptoms, and thermal or pressure measurements. A failing converter typically triggers Diagnostic Trouble Codes P0420 or P0430, produces a distinctive hydrogen sulfide exhaust odor, and exhibits an outlet temperature that fails to rise at least 100°F above the inlet temperature during an infrared thermal differential test. Severe internal blockages manifest as exhaust backpressure exceeding 1.25 PSI at idle or 3.0 PSI at 2,500 RPM, leading to acceleration sluggishness and manifold vacuum drop.

Diagnostic Equipment & Safety Preparation

Before initiating catalytic converter diagnostics, gather appropriate testing instruments to distinguish between actual converter failure and secondary issues like exhaust leaks or oxygen sensor degradation. Accurate testing prevents costly, unnecessary parts replacement.

Diagnostic Tooling & Safety Gear

• OBD-II Diagnostic Scanner: Capable of graphing live data PID streams (specifically Bank 1/2, Sensor 1 and Sensor 2 voltage signals).
• Non-Contact Infrared Thermometer (Pyrometer): Dual-laser target pyrometer rated for temperatures up to 1,200°F (650°C).
• Exhaust Backpressure Tester: Low-pressure gauge kit (0–15 PSI range) fitted with an M18x1.5 thread adapter for oxygen sensor ports.
• Intake Manifold Vacuum Gauge: Engine diagnostic vacuum gauge reading 0–30 in-Hg.
• Non-Marring Rubber Mallet: Soft-headed dead-blow hammer for acoustic physical testing.
• Personal Protective Equipment: Heat-resistant gloves, ANSI-approved safety glasses, and certified vehicle jack stands or hydraulic hoist.

Mandatory Prerequisite Standards

• Operational Temperature: Diagnostics must be performed after bringing the engine to steady-state closed-loop operation (coolant temperature between 185°F and 215°F).
• Exhaust Integrity: The exhaust system upstream of the catalytic converter must be entirely sealed; any ambient air leaks invalidate oxygen sensor data and thermal readings.

Duration & Cost Benchmarks

• Total Diagnostic Time: 45 to 90 minutes.
• Equipment Investment: $60 to $220 for comprehensive diagnostic tools.

Step-by-Step Catalytic Converter Inspection & Testing Workflow

Step 1: Query Diagnostic Trouble Codes and Analyze O2 Sensor Signal Waveforms

1. Plug your OBD-II scanner into the vehicle Data Link Connector (DLC) beneath the driver-side dashboard.
2. Read all Active, Pending, and Historic Diagnostic Trouble Codes (DTCs). Key catalytic converter efficiency codes include:


   • P0420: Catalyst System Efficiency Below Threshold (Bank 1)
   • P0430: Catalyst System Efficiency Below Threshold (Bank 2)
3. If engine misfire codes (P0300–P0308) or oxygen sensor codes (P0130–P0167) are present, resolve those primary fault conditions prior to diagnosing the converter.
4. Access the scanner’s live data stream and open real-time voltage graphing for Upstream Oxygen Sensor (Bank 1, Sensor 1) and Downstream Oxygen Sensor (Bank 1, Sensor 2).
5. Run the engine at 2,000 RPM in Park or Neutral.
6. Observe the waveform patterns:


   • Normal Function: Upstream sensor rapidly oscillates between 0.1V (lean) and 0.9V (rich). The downstream sensor displays a stabilized, steady line oscillating narrowly between 0.55V and 0.75V.
   • Failing Catalyst: The downstream sensor mirrors the rapid 0.1V to 0.9V switching frequency of the upstream sensor, signaling that the catalyst substrate can no longer store and release oxygen effectively.

Pro-Tip: If the downstream O2 sensor voltage drops flat to 0.1V or stays fixed at 0.9V without reacting to rapid throttle blips, suspect a failed sensor or broken wire rather than a failed catalytic converter.

Step 2: Perform Physical, Visual, and Auditory Exhaust Inspections

1. Safely lift and secure the vehicle on jack stands or an automotive hoist. Allow the exhaust system to cool to room temperature before handling components.
2. Perform a visual surface inspection of the catalytic converter shell:


   • Look for severe thermal discoloration (rainbow/blue-tinted steel), which indicates severe overheating from unburned raw fuel entering the exhaust.
   • Inspect for severe rust penetration, cracked structural welds, or physical crushed spots from road debris impact.
3. Perform the acoustic rattle test: Lightly tap the body of the catalytic converter with a soft rubber mallet.


   • Normal Sound: A solid, metallic dull thud.

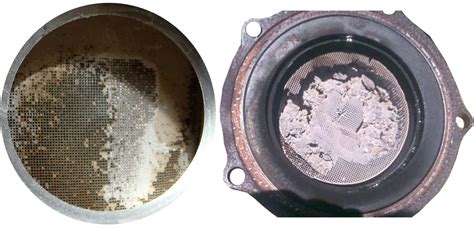

   • Failing Substrate: A sharp metallic rattling or loose ceramic clattering sound, which confirms that the internal monolithic honeycomb has fractured, melted, or detached from its mounting blanket.
4. Start the engine and evaluate exhaust odor and tailpipe discharge:


   • A heavy, rotten-egg smell (hydrogen sulfide, $H_2S$) indicates that the catalyst oxidation layer is overwhelmed by improper air/fuel mixture ratios or degraded precious metal washcoats.

Warning: Never strike a hot catalytic converter shell with a steel hammer. Ceramic substrates are extremely brittle and can shatter instantly under high thermal stress and mechanical impact.

Step 3: Conduct an Infrared Thermal Differential Test

1. Start the engine and drive the vehicle or run it at 2,500 RPM for 10 minutes to reach full operating temperature.
2. Park the vehicle on a level surface, set the parking brake, and keep the engine idling at operating temperature.
3. Aim the non-contact infrared pyrometer at the exhaust pipe directly ahead of the catalytic converter inlet weld bead (within 1 to 2 inches of the converter body). Record this temperature reading.
4. Aim the pyrometer at the exhaust pipe directly behind the catalytic converter outlet weld bead. Record this temperature reading.
5. Calculate the thermal differential ($\Delta T = T_{\text{outlet}} - T_{\text{inlet}}$):


   • Healthy Converter: The exothermic reaction occurring inside an active catalytic converter causes the outlet pipe temperature to read 100°F to 200°F (55°C to 110°C) hotter than the inlet pipe.
   • Inoperative/Dead Converter: The outlet pipe temperature is lower than, or identical to, the inlet pipe temperature, proving that chemical oxidation is non-existent.
   • Restricted/Clogged Converter: The inlet pipe temperature is significantly higher than the outlet pipe (often by 200°F+), as restricted exhaust gases back up ahead of the clogged substrate.

Pro-Tip: Ensure the pipe surface is clean and non-reflective. Highly polished stainless steel exhaust pipes can skew infrared pyrometer readings; spray a small spot of flat-black high-heat paint onto the test locations prior to heating for accurate emissivity.

Step 4: Measure Exhaust Backpressure and Engine Manifold Vacuum

1. Intake Manifold Vacuum Method:




   • Connect a mechanical vacuum gauge to a direct intake manifold port behind the throttle body.
   • Note the baseline vacuum at idle (healthy engines hold steady between 17 and 21 in-Hg).
   • Smoothly raise engine speed to 2,500 RPM and hold steady.
   • Normal Result: Vacuum drops momentarily upon throttle opening, then rapidly recovers to equal or slightly exceed the idle reading.
   • Restricted Converter Result: Vacuum drops initial opening, momentarily recovers, and then steadily decays toward zero as trapped exhaust gases create engine backpressure.

2. Direct Exhaust Backpressure Gauge Method:




   • Remove the upstream oxygen sensor (Bank 1, Sensor 1) from the exhaust manifold or downpipe.
   • Thread the M18x1.5 adapter of the exhaust backpressure gauge into the O2 sensor port and torque to hand-tight.
   • Start the engine and record static pressure at idle speed.
   • Increase engine speed to 2,500 RPM and record dynamic pressure.
   • Healthy Threshold: Pressure should remain below 0.5 to 1.25 PSI at idle and must not exceed 2.0 to 3.0 PSI at 2,500 RPM.
   • Clogged Threshold: Backpressure readings exceeding 3.0 PSI at 2,500 RPM confirm physical restriction inside the converter matrix.

Catalytic Converter Diagnostic Thresholds & Failure Metrics

Diagnostic Edge Cases & Root Cause Analysis

Issue 1: False P0420 Code Triggered by Exhaust Leaks or Sensor Failure

• Root Cause: Tiny pin-hole exhaust leaks located between the cylinder head and the downstream oxygen sensor draw ambient air into the exhaust stream via the Venturi effect. This extra oxygen tricks the downstream sensor into reporting high oxygen fluctuations, triggering a false catalyst efficiency code despite a healthy converter.
• Actionable Fix: Perform a smoke test on the exhaust system by pressurizing the tailpipe with a low-PSI smoke machine. Seal all flange leaks, cracked flex pipes, and worn manifold gaskets. Inspect upstream fuel trims to confirm the engine is not running falsely lean or rich before replacing the converter assembly.

Issue 2: Substrate Meltdown due to Raw Fuel Contamination

• Root Cause: Persistent engine misfires (caused by failed ignition coils, fouled spark plugs, or stuck-open fuel injectors) dump unburned hydrocarbons directly into the hot exhaust stream. When raw fuel contacts the catalytic converter, it ignites internally, causing temperatures to spike above 1,800°F (980°C) and completely melting the ceramic honeycomb structure into a solid block.
• Actionable Fix: Diagnose and repair all underlying ignition and fuel delivery faults prior to replacing the converter. Installing a new catalytic converter without addressing raw fuel delivery will result in immediate thermal destruction of the replacement unit within minutes.

Issue 3: Chemical Catalyst Poisoning from Internal Oil or Coolant Leaks

• Root Cause: Burning engine oil (from worn valve stem seals or oil control rings) introduces phosphorus and zinc into the exhaust gas, while burning coolant (from a leaking head gasket) introduces silicates. These chemical compounds coat the precious metal washcoat (platinum, palladium, rhodium), rendering the converter chemically inert without blocking physical airflow.
• Actionable Fix: Test for head gasket leaks using a block detector (combustion leak fluid) and evaluate oil consumption rates. Rectify mechanical engine seals and replace the chemically poisoned catalytic converter; chemical washcoat poisoning is irreversible.

Issue 4: Mechanical Substrate Disintegration from Impact or Thermal Shock

• Root Cause: Driving through deep water hazards submerges a red-hot exhaust system, causing sudden, rapid contraction of the metal shell that crushes the internal ceramic matrix. Alternatively, severe impacts with road debris physically shatter the brittle internal substrate structure.
• Actionable Fix: Inspect bottom chassis clearance, replace damaged structural exhaust hangers, and install a direct-fit replacement converter. Ensure missing heat shields or damaged floor pan insulation are replaced during service.

Frequently Asked Questions

Can I drive my vehicle with a bad catalytic converter?

You can temporarily drive with a bad catalytic converter if the failure is strictly chemical (such as an efficiency code P0420 without physical restriction). However, if the converter is physically clogged or melted, high backpressure will trap heat in the engine, drastically reduce power, reduce fuel economy, and risk internal valve or head gasket damage.

What does a failing catalytic converter sound like?

A failing catalytic converter often produces a metallic rattling sound at idle or under acceleration if the ceramic substrate has broken apart inside the steel housing. If the unit is severely clogged, you may hear a high-pitched whistling or hissing sound near the engine bay as trapped exhaust forces its way out through manifold gaskets or flex pipes.

Why does my car exhaust smell like rotten eggs?

A rotten-egg smell indicates that the catalytic converter is failing to properly oxidize hydrogen sulfide ($H_2S$) into odorless sulfur dioxide ($SO_2$). This issue typically occurs when the converter's chemical washcoat is worn out or when an overly rich air/fuel mixture delivers too much unburned fuel to the exhaust system.

Will a bad catalytic converter cause the engine to misfire?

A bad catalytic converter does not directly ignite a misfire, but a clogged converter creates extreme exhaust backpressure that prevents cylinder scavenging. This traps exhaust gas inside the combustion chamber, diluting incoming air/fuel charges and resulting in secondary engine misfires (DTCs P0300–P0308) and severe power loss under load.
