How To Jumpstart A Prius: The Complete Technician’s Guide To 12V Auxiliary Recovery

To jumpstart a Toyota Prius, connect the positive lead of a 12V power source to the dedicated red jump-start terminal located inside the engine compartment's fuse block, then ground the negative lead to an unpainted metal surface on the vehicle frame. Once the "Ready" light illuminates on the dashboard, the high-voltage traction battery engages the DC-DC converter to begin recharging the auxiliary 12V system.

Safety Protocol and Essential Recovery Equipment

Before attempting to jumpstart a Toyota Prius, it is vital to understand that while the vehicle is a "hybrid," the jump-starting process specifically targets the 12V auxiliary battery, not the high-voltage (HV) traction battery. The 12V battery is responsible for powering the vehicle’s Electronic Control Units (ECUs), the dashboard, the smart key system, and, most importantly, the high-voltage relays (SMRs) that "close" the circuit to the hybrid battery. If the 12V battery is below approximately 10.5 volts, these relays cannot engage, and the car will not start, regardless of how much charge is in the large hybrid pack.

Hybrid vehicles operate with high-voltage DC systems (often exceeding 200V-600V). These systems are identified by bright orange cabling. Never touch, probe, or attempt to jumpstart via these orange cables. The auxiliary 12V system is separate and follows standard automotive safety norms, though the physical layout is unique to the Toyota Hybrid System (THS).

Essential Gear and Preparation Checklist

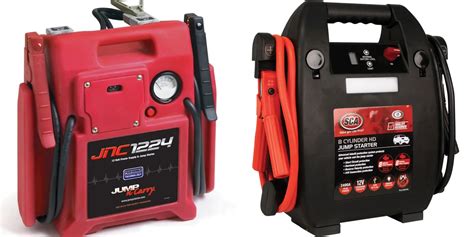

• Primary Power Source: A portable lithium-ion jump starter (minimum 1000A peak current recommended) or a donor vehicle with a healthy 12V battery.
• Jumper Cables: High-quality 4-gauge or 6-gauge copper cables with insulated clamps to prevent accidental shorting against the tightly packed engine components.
• Safety Equipment: Insulated work gloves and ANSI-rated eye protection to guard against battery acid or terminal sparking.
• Technical Knowledge: Awareness of your specific Prius generation (Gen 2: 2004-2009, Gen 3: 2010-2015, Gen 4: 2016-2022) as terminal locations vary slightly.
• Time Requirement: Approximately 10–15 minutes for setup and initial system "Ready" engagement.
• Environment: Ensure the vehicle is in a dry area. Rain or significant moisture can increase the risk of electrical tracking, though the 12V system is generally low-risk.

Executing the Prius Jumpstart: Under-Hood and Rear-Battery Procedures

Unlike traditional internal combustion engine (ICE) vehicles, the Prius often houses its 12V battery in the rear cargo area (under the floorboard or in a side cubby). However, Toyota engineers provided a remote jump-start terminal in the engine bay to avoid the difficulty of opening an electronic hatch with a dead battery.

Step 1: Accessing the Remote Jump-Start Terminal

Open the hood of the Prius and locate the engine room fuse block. This is typically a large black plastic box located on the driver's side (left side) of the engine compartment.

1. Remove the fuse box cover by depressing the plastic tabs and lifting upward.
2. Look for a bright red plastic tab or cover labeled with a "+" sign.
3. Flip this red cover up to reveal the dedicated positive (+) jump-start terminal. This is a heavy-duty metallic tab designed specifically for high-amperage transfer.

Warning: Do not attempt to use any other metal component inside the fuse box for the positive connection. Doing so can melt the fuse busbar or damage the Integrated Power Unit.

Step 2: Establishing the Positive Connection

Always connect the positive (red) cable first. This reduces the risk of a "short to ground" if the other end of the cable accidentally touches the car's frame.

1. Attach the red clamp of your jumper cables or portable power pack to the red terminal inside the fuse box.
2. Ensure the clamp has a firm, "biting" grip on the metal tab. If the connection is loose, the resistance will prevent the 12V system from reaching the threshold voltage required to engage the hybrid relays.
3. Connect the other end of the red cable to the positive terminal of the donor battery or power pack.

Step 3: Establishing the Negative (Ground) Connection

The Prius requires a very specific grounding point. While you might be tempted to look for the negative terminal of the battery, it is not present in the engine bay.

1. Identify a solid, unpainted metal part of the engine or frame. Toyota officially recommends the unpainted bolt or "ear" on the engine block or a specific strut tower bolt.
2. Attach the black (negative) clamp to this grounding point.
3. Connect the other end of the black cable to the negative terminal of the donor battery or the designated ground on your portable jump pack.

Pro-Tip: Avoid grounding near moving parts like the inverter coolant pump or any plastic housings. A poor ground is the most common reason for a "failed" jumpstart attempt where the lights flicker but the car won't start.

Step 4: Powering the System and Reaching "Ready" Mode

Once the connections are secure, you are ready to energize the system.

1. If using a donor vehicle, start the donor engine and let it idle for 3–5 minutes. This allows the Prius's surface-discharged 12V battery to absorb a base charge.
2. Sit in the driver’s seat of the Prius. Do not attempt to "crank" the engine. A Prius does not have a traditional starter motor; it uses the high-voltage Motor-Generator (MG1) to spin the engine.
3. Depress the brake pedal firmly.
4. Press the "POWER" button once.
5. Watch the dashboard for the "READY" light (usually green). If the "READY" light stays on, the jumpstart is successful. The engine may or may not start immediately depending on the state of charge of the hybrid battery and the engine temperature—this is normal behavior.

Step 5: Disconnection Sequence

The disconnection process must be performed in the exact reverse order to prevent electrical surging or sparking near the fuse block.

1. Remove the negative (black) clamp from the Prius grounding point.
2. Remove the negative (black) clamp from the donor source.
3. Remove the positive (red) clamp from the donor source.
4. Remove the positive (red) clamp from the Prius jump-start terminal.
5. Snap the red terminal cover back into place and re-secure the fuse box lid.

Technical Specifications and Battery Voltage Thresholds

Understanding the metrics of the Prius 12V system is essential for long-term vehicle health. The 12V auxiliary battery is typically an AGM (Absorbed Glass Mat) battery, which requires different charging profiles than standard flooded lead-acid batteries.

Diagnostic Recovery: Solving Common Hybrid Start-Up Failures

Even with a power source connected, a Prius may refuse to enter "Ready" mode. These scenarios often stem from deep discharge or safety logic in the Hybrid Control Computer.

• Scenario: Rapid Clicking Sound but No "Ready" Light




  • Root Cause: Insufficient amperage at the jump point or a loose ground connection. The clicking is the sound of the System Main Relays (SMRs) attempting to close but dropping out due to voltage sag.
  • Actionable Fix: Reposition the negative clamp to a cleaner, unpainted metal surface. Ensure the donor vehicle is revving slightly (2,000 RPM) to provide maximum voltage. Check the 12V battery terminals in the trunk for corrosion/looseness.

• Scenario: Dashboard Lights Up but Shifter Won't Leave "Park"




  • Root Cause: The vehicle has entered a "limp" or "fault" mode because the voltage was too low during the initial handshake. The ECU has detected an undervoltage fault and is protecting the transmission.
  • Actionable Fix: Power the vehicle completely off. Disconnect the jump cables. Wait 60 seconds for the capacitors to discharge. Reconnect the cables and try the power-up sequence again, ensuring the brake pedal is fully depressed.

• Scenario: Triangle of Death (Master Warning Light) After Start




  • Root Cause: The 12V battery is so degraded that it cannot maintain a stable voltage, causing "ghost" error codes in the Hybrid and ABS computers.
  • Actionable Fix: Once in "Ready" mode, leave the car on for at least 30-60 minutes. The DC-DC converter will charge the battery. If the light persists after three restart cycles, use an OBD-II scanner to clear the low-voltage codes.

• Scenario: Smart Key Not Detected




  • Root Cause: The 12V battery is too weak to power the RFID receiver in the dash.
  • Actionable Fix: Hold the Toyota logo on the key fob directly against the Power button while pressing it. This uses an inductive backup loop (similar to NFC) to authenticate the key without needing battery power for the fob's transmitter.

Frequently Asked Questions

Can I use a Prius to jumpstart another car?

While technically possible, it is highly discouraged by Toyota. The 12V system in a Prius is designed for low-amperage electronics, and the DC-DC converter can be overloaded or the 100A-120A fusible link can blow if the donor car draws too much current during cranking. If you must do it, ensure the Prius is in "Ready" mode and connect directly to the battery in the rear, but a portable jump pack is a much safer alternative.

How long should I drive a Prius after jumpstarting it?

You do not actually need to "drive" the Prius to charge the 12V battery. Unlike a traditional car that relies on an alternator spun by the engine, the Prius charges the 12V battery via the DC-DC converter whenever the "Ready" light is on. Simply leaving the car in "Park" with the "Ready" light on for 30 to 60 minutes will provide a significant charge.

Why is my Prius battery in the trunk instead of the engine bay?

Toyota places the auxiliary battery in the rear (or under the rear seat in newer models) to improve weight distribution and to protect the battery from the extreme heat generated by the internal combustion engine and the inverter. Because the battery is in an enclosed space, it must be an AGM type with a dedicated vent tube to safely exhaust any gases outside the vehicle.

Will jumpstarting damage the expensive hybrid battery?

No, jumpstarting the 12V system has no direct impact on the high-voltage traction battery's health. The two systems are galvanically isolated by the inverter and the SMR relays. The jumpstart merely provides the 12V signal needed to "wake up" the computer that manages the hybrid battery.

Does a Prius battery need special maintenance?

Because it is an AGM battery, it requires very little maintenance, but you should periodically check the 10mm terminal nuts for tightness and ensure the vent tube is securely connected. If the battery is older than 5 years, it is prone to sudden failure in cold weather and should be tested with a digital battery analyzer.
