How To Install A Wood Stove Through The Wall

Installing a wood stove with a through-the-wall chimney system requires strict adherence to National Fire Protection Association (NFPA) 211 standards and local building codes to ensure residential safety. This comprehensive guide covers exact clearance thresholds, wall thimble assembly, Class A insulated pipe integration, and final draft testing.

Pre-Operation & Planning Checklist for Wall-Thimble Systems

Executing a through-the-wall wood stove installation demands precise engineering to prevent structural thermal transfer and carbon monoxide infiltration. Before cutting any building materials, secure a mechanical permit from your local municipal authority, ensure your wood stove is EPA-certified, and verify that your homeowners insurance policy covers solid-fuel heating appliances.

• Essential Tools and Materials: Heavy-duty reciprocating saw, metal-cutting snips, masonry bits, heavy framing square, laser level, high-temperature silicone sealant (rated to 1000°F or higher), stainless steel Class A chimney pipe, wall thimble/pass-through kit, support brackets, ventilated safety glasses, and heavy leather work gloves.
• Prerequisite Knowledge & Standards: Total mastery of NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid-Fuel Burning Appliances), local zoning requirements, and manufacturer clearance specifications.
• Estimated Duration & Budget: Expect 8 to 16 hours of labor across two days for experienced DIYers. Total material costs range from $1,200 to $3,500 depending on wall thickness, pipe diameter (typically 6-inch or 8-inch), and brand tier.

Step-by-Step Wall-Through Chimney Installation

Step 1: Establish Interior Layout and Floor Protection

Position the wood stove on an approved non-combustible hearth pad that extends at least 16 inches in front of the loading door and 8 inches to the sides and rear (or as dictated by the stove manufacturer's listing). Use a plumb bob and laser level to locate the exact center point where the chimney connector pipe will transition horizontally through the interior wall. Verify that this exit point avoids all internal electrical wiring, water supply lines, and structural wall studs.

Warning: Never guess wall dimensions. Cutting blindly into a framed wall risks severing electrical cables or load-bearing studs, creating an immediate fire and structural hazard.

Step 2: Construct the Wall Opening and Frame the Thimble

Mark the exterior dimensions required by your specific wall thimble manufacturer—typically a 12-inch square or circular cutout for a 6-inch inner diameter pipe to guarantee the mandatory 2-inch air clearance to combustibles. Cut through the interior drywall or plaster, remove the cavity insulation, and cut through the exterior siding. Frame the resulting rough opening with 2x4 or 2x6 wood framing to structurally support the wall thimble assembly and secure the wall layers together.

Step 3: Install the Wall Thimble and Support Brackets

Slide the interior and exterior sections of the wall thimble into the framed rough opening, ensuring the metal sleeve spans the entire wall thickness snugly. Fasten the flanges securely to the interior drywall and exterior sheathing using corrosion-resistant screws. Mount the heavy-duty wall support bracket directly to the exterior wall studs below the thimble opening, ensuring it is level and capable of supporting the entire vertical weight of the exterior chimney stack.

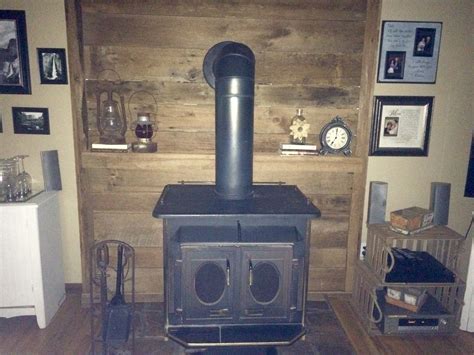

Step 4: Run the Chimney Connector and Class A Pipe

Connect the interior single-wall or double-wall connector pipe from the flue collar of the wood stove to the horizontal snout of the wall thimble, securing every slip-joint connection with a minimum of three sheet metal screws. Slide the horizontal section of the Class A insulated chimney pipe through the wall thimble, locking it firmly into the interior connector. On the exterior side, lock the vertical tee and Class A chimney stack into the support bracket, twisting and locking each section together according to the manufacturer's locking-band protocol.

Pro-Tip: Always install chimney pipe with the male ends pointing downward toward the stove. This ensures that any creosote condensation remains trapped inside the pipe system rather than leaking out at the joints.

Step 5: Install Exterior Support, Cap, and Flashing

Extend the exterior Class A chimney stack vertically to meet the NFPA 211 "3-2-10 Rule": the chimney must extend at least 3 feet above the highest point where it passes through the roof and at least 2 feet higher than any portion of the building within a 10-foot horizontal radius. Secure the stack with roof brace kits or wall straps if the height exceeds 5 feet above the upper bracket. Finish the top of the stack with a spark arrestor rain cap and apply exterior-grade flashing and high-temperature silicone sealant around the exterior wall thimble penetration to prevent water intrusion.

Technical Specifications & Clearances for Solid-Fuel Chimneys

Common Site Failures and Field Fixes

• Root Cause: Inadequate exterior chimney height resulting in poor draft, sluggish ignition, and smoke rolling back into the room upon door opening.


  • Actionable Fix: Add additional lengths of Class A pipe until the chimney clears the roof peak and surrounding wind-turbulence zones by the mandated margins.
• Root Cause: Creosote seepage and tar weeping at horizontal pipe joints due to insufficient pitch or single-wall pipe running through exterior cold zones.


  • Actionable Fix: Pitch the horizontal connector upward toward the wall thimble at a minimum rate of 1/4 inch per foot, and replace any exterior runs with insulated Class A pipe.
• Root Cause: Water leaks around the exterior wall thimble penetration during heavy wind-driven rainstorms.


  • Actionable Fix: Strip away degraded caulking, clean the exterior mounting plate, and apply a thick bead of exterior-grade polyurethane or high-temp silicone sealant behind the storm collar and wall plate flanges.

Frequently Asked Questions

Can I use single-wall stove pipe to pass through the exterior wall?

No. Building codes strictly prohibit single-wall stove pipe from passing through walls, ceilings, or attics because it radiates excessive heat that can ignite nearby structural framing. You must transition to a certified double-wall Class A insulated chimney pipe before entering the wall thimble assembly.

How far away from framing must the chimney pipe be?

Standard building codes and NFPA 211 require a minimum 2-inch air space clearance between combustible building materials (studs, insulation, drywall) and the outer wall of a Class A chimney pipe. Never pack insulation into this mandatory clearance zone.

What causes smoke to back up into the room during startup?

Cold air trapped inside the exterior chimney creates a dense air plug that blocks upward draft flow. Prime the flue before lighting the fire by holding a rolled-up piece of lit newspaper inside the stove's throat or secondary combustion chamber for 30 to 60 seconds to push the cold air column upward.

Do I need a professional inspection after installation?

Yes. Prior to lighting your first official fire, schedule a comprehensive safety inspection with a certified chimney sweep (such as a CSIA-certified technician) or your local municipal building inspector to verify clearances, structural stability, and code compliance.

Secure Your Home Heating System Today

Ensure your through-the-wall wood stove installation operates at peak thermal efficiency and meets all life-safety mandates by utilizing high-grade UL-listed components and double-checking every clearance threshold. Consult a certified chimney professional or your local building department to review your final framing and layout before lighting your inaugural fire.
