How To Install Radiant Barrier Foil In Attic: A Professional Installation Guide

Installing radiant barrier foil in your attic reduces heat gain by reflecting up to 97 percent of radiant energy away from the living space, effectively lowering cooling costs by 5 to 15 percent depending on climate zone. The process involves stapling high-emissivity aluminum foil to the underside of roof rafters or laying it over attic floor insulation, provided a necessary air gap is maintained for optimal thermal performance.

Essential Preparation, Safety Equipment, and Tool Requirements

Before beginning the installation, you must evaluate the attic's ventilation and structural integrity. Radiant barriers are most effective in hot, sunny climates where the primary thermal load is radiant heat transfer from the roof deck. Proper moisture management is critical; if your roof is not adequately vented, radiant foil can trap humidity, leading to condensation and potential mold growth.

• Essential Safety Gear: Long-sleeved shirt and pants to prevent insulation contact, N95 respirator mask for dust protection, LED headlamp for high-visibility work, and impact-resistant goggles.
• Required Tools: Industrial-grade staple gun with 0.5-inch staples, utility knife with break-away blades, heavy-duty scissors, and a tape measure.
• Material Requirements: Perforated radiant barrier foil (to allow vapor passage), foil-backed tape for sealing seams, and 2-inch furring strips if an air gap is required.
• Logistics and Timing: A two-person team is recommended for safety. Expect a duration of 6 to 10 hours for a standard 1,500-square-foot attic. Budget approximately 50 to 80 cents per square foot for material costs.

Technical Installation Workflow for Attic Efficiency

Step 1: Site Inspection and Ventilation Audit

Inspect the attic for roof leaks, active condensation, or damaged insulation. Ensure that all soffit and ridge vents are clear of debris. Radiant barriers act as a low-emissivity surface that prevents heat transfer through radiation, but they do not replace bulk insulation. If your attic floor is poorly insulated, install R-38 or higher blown-in cellulose before applying the radiant barrier to the rafters.

Step 2: Choosing the Installation Method

Decide between the rafter-mounting method or the floor-mounting method. Rafter mounting is generally more effective for heat rejection in summer but requires careful attention to vent clearance. Floor mounting is simpler but can result in dust accumulation on the foil surface over time, which significantly degrades emissivity.

Warning: Never cover ridge vents, soffit vents, or gable vents with radiant foil. Blocking airflow will lead to rapid roof deck degradation, shingle blistering, and voided roofing warranties.

Step 3: Measuring and Cutting the Foil

Measure the length of the rafters from the ridge to the wall plate. Add two inches to each end for overlapping and secure attachment. If you are working in a tight attic space, cut the foil into manageable 10-foot sections to avoid tearing during installation.

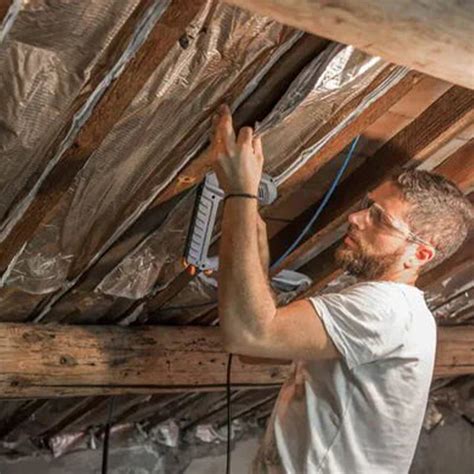

Step 4: Stapling to Rafters

Starting at the peak of the roof, staple the foil directly to the underside of the rafters. Use a staple spacing of 4 to 6 inches to ensure the foil remains taut. If you are installing it over existing rafters, ensure there is a minimum of 1 inch of airspace between the foil and the roof deck or the foil and the insulation. This air gap is a physical requirement for the material to reflect radiant heat effectively.

Pro-Tip: Overlap each run of foil by at least 2 inches to ensure a continuous thermal shield. Use foil-faced tape to seal the seams, as gaps allow infrared energy to pass through, diminishing the total system effectiveness.

Step 5: Sealing Penetrations

Around chimneys, plumbing stacks, and electrical wires, trim the foil with a utility knife. Use high-temperature aluminum tape to seal the edges of the foil around these obstacles. Ensure that no foil comes into direct contact with active electrical wiring or exposed light fixture housings to prevent fire hazards.

Material Performance and Environmental Thresholds

The following table summarizes the technical performance criteria for selecting and applying radiant barrier materials.

Addressing Common Site Failures and Field Fixes

• Root Cause: Material sag due to inadequate stapling.


  • Actionable Fix: Tighten the foil by removing excess slack and re-stapling every 3 inches. Use furring strips to bridge wider gaps between rafters if necessary.
• Root Cause: Condensation forming on the underside of the foil.


  • Actionable Fix: Verify that the foil is perforated. If you accidentally used non-perforated material in a high-humidity zone, you must install additional ridge vents or mechanical exhaust fans to move moisture out of the attic.
• Root Cause: Significant heat transfer despite installation.


  • Actionable Fix: Check for gaps at the seams. Infrared energy follows the path of least resistance; ensure all overlaps are taped with 3-inch wide HVAC-grade aluminum tape.
• Root Cause: Dust accumulation on floor-mounted foil.


  • Actionable Fix: If you chose the floor method, periodically vacuum the surface. If dust accumulation continues, remove the foil from the floor and relocate it to the rafter underside where it is protected from foot traffic and settling debris.

Frequently Asked Questions

Can I install radiant barrier foil over existing fiberglass insulation?

Yes, you can lay radiant foil over fiberglass batts on the attic floor. Ensure the material is perforated to allow moisture vapor to escape from the ceiling below, preventing the growth of mold or mildew within the insulation layers.

Does radiant barrier foil interfere with cell phone or Wi-Fi signals?

Aluminum foil can act as a Faraday cage, potentially reducing the strength of Wi-Fi or cellular signals within the living space below the attic. If you experience connectivity issues, consider using a signal booster or placing your wireless router away from the roofline.

Do I need a permit to install a radiant barrier?

In most jurisdictions, installing a radiant barrier is considered a minor home improvement that does not require a building permit. However, always check with your local municipal building department, as some areas have strict fire-safety codes regarding the flame-spread rating of attic materials.

Is a radiant barrier effective in cold climates?

Radiant barriers provide minimal benefit in cold climates and may actually hinder your home's ability to benefit from passive solar gain in the winter. They are designed primarily for high-heat environments where cooling costs are the dominant energy expense.

Optimize Your Attic Thermal Envelope

By properly installing a high-quality radiant barrier, you create a long-term thermal solution that reduces HVAC wear and improves home comfort year-round. Review your local energy codes today and invest in the right materials to finalize your home efficiency upgrade.
