How To Install OpenOCD Into Arduino IDE For Advanced Hardware Debugging

Integrating OpenOCD with the Arduino IDE enables professional-grade hardware debugging, allowing developers to set breakpoints, inspect registers, and step through code execution on microcontrollers via JTAG or SWD interfaces. This process requires configuring the Arduino IDE to recognize external debugger hardware as an upload and debug tool, bypassing the standard bootloader for low-level memory control.

Essential Prerequisites for Hardware Debugging Integration

Before attempting to bridge OpenOCD with the Arduino environment, you must ensure your hardware stack is compatible with the Open On-Chip Debugger protocol. OpenOCD acts as the middleware between your computer and the target silicon, necessitating a physical adapter that translates USB signals into JTAG or Serial Wire Debug protocols.

• Required Hardware: A hardware debugger adapter such as an ST-Link v2, J-Link, or an FTDI-based bit-bang interface.
• Mandatory Software: The latest version of the Arduino IDE (2.0 or higher is strictly recommended for native debugger support) and the OpenOCD binary package for your operating system.
• Toolchain Dependencies: Ensure your board support package (BSP) is installed within the Arduino IDE, specifically the version that supports the GDB (GNU Debugger) interface.
• Environmental Requirements: Administrative permissions to install driver files for your specific debugger hardware and stable USB connectivity.
• Time Expectation: The process typically takes 30 to 45 minutes, depending on the need for specific driver installation for your debugger hardware.

Procedural Workflow for Integrating OpenOCD

Step 1: Installing and Verifying OpenOCD Binaries

First, you must ensure that OpenOCD is accessible to your system environment variables. Download the pre-compiled OpenOCD binaries from the official repository or the specific distribution provided by your microcontroller vendor. Extract the archive to a permanent directory on your machine, such as a C-drive tools folder or a local binaries folder. Open your system terminal or command prompt and run the command to verify the version. If the terminal recognizes the command, the path is correctly set.

Warning: Never move the OpenOCD folder after integration, as this will break the hard-coded paths in the Arduino IDE configuration files, resulting in persistent launch failures during debug sessions.

Step 2: Configuring Arduino IDE Debugging Interface

Open the Arduino IDE and navigate to the Boards Manager to ensure your target hardware supports hardware debugging. Select your board from the Tools menu. In the same menu, check the Programmer and Debugger options. If your board supports it, you will see an entry labeled Debugger. Select the entry that corresponds to your hardware probe, such as ST-Link or CMSIS-DAP. Ensure that the Debugging Port is correctly identified as the USB device connected to your probe.

Step 3: Mapping the Debugger Configuration Files

The Arduino IDE requires a specific configuration script to initiate communication with the target chip. Within the Arduino installation directory or the specific core folder for your microcontroller, locate the platform.txt file. Ensure the debug entry points to your OpenOCD configuration file, usually ending in a .cfg extension. This file tells OpenOCD which interface (the programmer) and which target (the microcontroller) are currently connected.

Pro-Tip: Always use a board-specific configuration file provided by the manufacturer rather than a generic one to ensure that reset signals and clock speeds are precisely synchronized with your microcontroller silicon.

Step 4: Initiating the Debugger Session

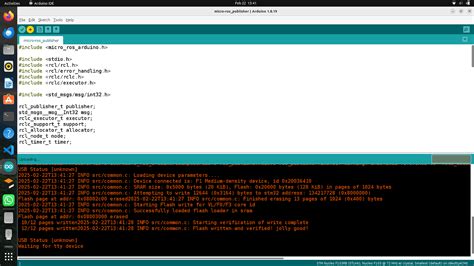

With the configuration verified, return to the main sketch window in the Arduino IDE. Click the Debug icon, which usually resembles a small beetle or a play button with a bug graphic. The IDE will now spawn an OpenOCD background process to establish the JTAG/SWD connection. If successful, the terminal output at the bottom of the IDE will display a successful connection string, followed by a waiting state for GDB. You can now insert breakpoints by clicking the line numbers in the gutter of your code editor and proceed to step through the execution.

Technical Parameters and Debugger Interface Comparison

Common Site Failures and Field Fixes

• Communication Timeout Errors:


  • Root Cause: The OpenOCD configuration file contains an incorrect interface driver or the clock frequency (adapter speed) is set too high for the target hardware.
  • Actionable Fix: Lower the adapter frequency in the .cfg file using the adapter speed command to 1000 or 500 kHz and verify the interface driver matches your specific hardware probe version.
• Target Not Halted on Reset:


  • Root Cause: The reset signal pin is improperly configured or not physically connected between the probe and the board.
  • Actionable Fix: Verify the physical connection of the RST pin and adjust the reset config in the OpenOCD script to use the specific reset mode required by your chip, such as srst_only or connect_assert_srst.
• GDB Server Connection Refused:


  • Root Cause: Another instance of OpenOCD is running in the background, locking the required port (usually 3333).
  • Actionable Fix: Force-kill any hanging OpenOCD processes using the Task Manager or system monitor, then restart the Arduino IDE to reset the socket communication.
• Driver Signature Verification Failures:


  • Root Cause: The debugger hardware drivers are not properly installed or are blocked by operating system security policies.
  • Actionable Fix: Use a tool like Zadig to overwrite the Windows driver for the specific USB ID of your probe, ensuring it is mapped to the WinUSB driver to allow OpenOCD access.

Frequently Asked Questions

Can I debug all Arduino boards using OpenOCD?

No, only boards based on architectures that support JTAG or SWD, such as ARM Cortex-M cores (e.g., SAMD, STM32), are compatible. 8-bit AVR chips like the ATmega328P do not natively support standard OpenOCD debugging protocols in the same manner.

Does installing OpenOCD interfere with standard serial uploads?

Not necessarily, as OpenOCD operates through a separate JTAG/SWD channel. However, you must ensure that your hardware debugger is disconnected or explicitly deactivated before attempting a standard USB-serial upload, or it may conflict with the target reset pin.

What is the purpose of the GDB server in this process?

The GDB server provided by OpenOCD acts as the translator between your human-readable source code in the IDE and the machine-level commands required to halt, step, and inspect registers on the target processor. It allows the Arduino IDE to control the execution flow of the binary currently residing on the microcontroller.

Why does my debugger show an empty register window?

This is typically caused by a failed initial load of the symbol file or a mismatch between the compiled binary and the source code loaded in the IDE. Ensure that you have performed a full compile and upload of your code with the debug flag enabled before initiating the debug session.

Maximize Your Embedded Development Efficiency

Mastering the integration of OpenOCD within the Arduino IDE transforms your hardware projects from black-box deployments into fully transparent development cycles. By utilizing these debugging capabilities, you can significantly reduce your troubleshooting time and optimize your firmware for high-reliability applications.
