How To Install HardieBacker Board On Floor: The Complete Professional Guide

To successfully install HardieBacker board on a floor, you must embed the cement board in a medium of modified thin-set mortar and secure it with specialized corrosion-resistant screws spaced every 8 inches. This process eliminates structural voids and ensures the assembly meets the L/360 deflection standard required for a crack-free tile installation. Adhering to these technical specifications prevents tile delamination and grout failure in high-traffic residential and commercial environments.

Structural Requirements and Pre-Installation Planning

Before beginning the installation of HardieBacker cement board, you must verify that the underlying subfloor is structurally sound and capable of supporting the dead load of the tile assembly. HardieBacker is an underlayment designed to provide a superior bonding surface for tile; it is not a structural component and will not compensate for a bouncy or sagging floor. According to the Tile Council of North America (TCNA) and James Hardie's specifications, the subfloor must be a minimum of 5/8 inch thick exterior grade plywood or 23/32 inch OSB (Oriented Strand Board) with an exposure 1 rating. Joist spacing should not exceed 16 inches on center for standard installations.

The primary technical metric to monitor is the deflection limit. For ceramic and porcelain tile, the floor must have a maximum deflection of L/360—meaning the floor should not bend more than the length of the span divided by 360 when under a live load. For natural stone, this requirement doubles to L/720. If your floor has excessive movement, you must add blocking, sister joists, or an additional layer of plywood before proceeding with the HardieBacker installation.

Essential Equipment and Materials Checklist

• Materials:


  • HardieBacker 1/4 inch Cement Board (the industry standard for floors to minimize height buildup).
  • Latex-modified thin-set mortar (ANSI A118.4 compliant).
  • 2-inch wide alkali-resistant glass fiber mesh tape.
  • HardieBacker 1-1/4 inch cement board screws (corrosion-resistant).
• Tools:


  • 1/4 inch square-notched trowel.
  • Carbide-tipped scoring tool or a circular saw equipped with a polycrystalline diamond blade and HEPA vacuum attachment.
  • Heavy-duty drill/driver.
  • T-square and measuring tape.
  • Margin trowel for mixing and cleaning.
• Logistics Benchmarks:


  • Budget: Estimate approximately 1.50 to 2.25 dollars per square foot for all materials, including board, fasteners, and mortar.
  • Duration: A standard 100-square-foot bathroom takes approximately 3 to 5 hours for a professional to prep, lay, and tape.

Step-by-Step HardieBacker Floor Installation Workflow

Achieving a professional-grade substrate requires meticulous attention to the bonding process and fastener placement. The following steps outline the exact procedure used by master tile setters to guarantee a lifetime warranty-level installation.

Step 1: Subfloor Inspection and Surface Prep

Begin by cleaning the subfloor thoroughly. Remove any dust, drywall mud, or protrusions that could prevent the board from sitting flush. Check for any "squeaks" in the plywood; if you find them, drive additional 2-inch wood screws into the joists to tighten the floor. The presence of any wax, oil, or adhesive residue must be addressed, as these contaminants will prevent the thin-set mortar from bonding the HardieBacker to the wood.

Step 2: Layout and Dry Fitting

Plan your layout to ensure that no four corners of the HardieBacker boards meet at a single point. This is known as staggering the joints. Lay the boards in a "brick-bond" or running bond pattern.

1. Leave a 1/8 inch gap between the board edges and any vertical walls to allow for structural expansion.
2. Maintain a 1/8 inch gap between the boards themselves.
3. Ensure that the joints of the HardieBacker do not align with the joints of the subfloor underneath; offset them by at least 8 inches.

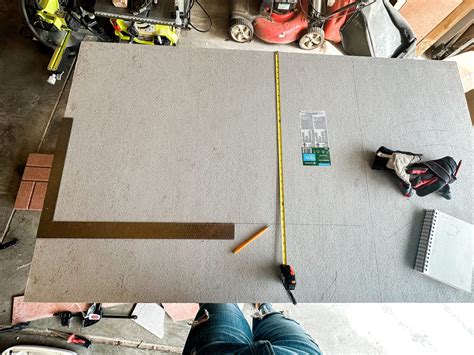

4. Mark your cuts using a T-square. For straight cuts, use the "score and snap" method: pull the carbide-tipped tool across the surface two or three times against a straight edge, then lift the board and snap it along the line.

Pro-Tip: When cutting indoors, avoid using high-speed saws without advanced dust collection. Cement board contains crystalline silica, which is a respiratory hazard. Scoring and snapping is the cleanest method for residential remodels.

Step 3: Mixing and Applying the Bonding Mortar

It is a common mistake to skip the mortar bed under the HardieBacker. The mortar is not used for adhesion in the traditional sense; its purpose is to fill the microscopic voids between the board and the subfloor to prevent "vertical movement" and hollow spots.

1. Mix the latex-modified thin-set to a "bread dough" consistency—slightly wetter than what you would use for setting tile, as the dry cement board and wood subfloor will quickly wick moisture away.
2. Using the flat side of the 1/4 inch square-notched trowel, "burn" the mortar into the subfloor to ensure a mechanical bond.
3. Comb the mortar using the notched side of the trowel, creating uniform ridges. Work in sections small enough that the mortar does not skin over before you lay the board.

Step 4: Installing and Embedding the Sheets

Place the first HardieBacker sheet into the wet mortar. Walk across the board or use a heavy float to firmly press it into the mortar bed. This "collapses" the ridges and ensures 100% coverage.

1. Double-check your 1/8 inch gap at the wall.
2. Ensure the board is level with its neighbors. If one corner is high, you likely have a clump of mortar underneath that needs to be spread.

Step 5: Mechanical Fastening Pattern

While the mortar provides the support, the screws provide the clamping pressure needed while the mortar cures.

1. Use only approved HardieBacker screws. Standard drywall screws will corrode over time due to the alkaline nature of the cement and the moisture in the mortar.
2. Drive screws every 8 inches on center across the entire field of the board.
3. Drive screws 2 inches in from every corner and 1/2 inch to 1 inch away from the edges.
4. Ensure the screw heads are flush with the surface of the board or slightly countersunk. Do not over-drive them to the point that they break the fiberglass mesh reinforcing the board.

Warning: Failure to use the 8-inch OC (on-center) fastening pattern is the leading cause of "clicking" sounds in finished tile floors, as the board can lift slightly from the mortar bed if not properly clamped.

Step 6: Seam Reinforcement and Taping

The final step is to bridge the gaps between the boards to create a monolithic surface.

1. Fill the 1/8 inch gaps between the boards with the same modified thin-set used for the bed.
2. Center the 2-inch alkali-resistant glass fiber tape over the joints.
3. Use a flat trowel to embed the tape in a thin layer of mortar, feathering the edges so there is no significant "hump" in the floor. This step is critical; standard paper drywall tape or non-alkali-resistant mesh will disintegrate in contact with cement-based products.

Underlayment Performance and Material Specifications

Choosing the right thickness and understanding the physical properties of your underlayment is essential for a successful build. The following table compares the two primary types of HardieBacker and how they relate to floor installations versus other common substrates.

Common Installation Failures and Field Fixes

Even with the right materials, environmental factors or minor oversights can lead to system failures. Recognizing these early can save thousands in demolition costs.

• Scenario: Hollow Sounding Tiles Post-Installation


  • Root Cause: The installer failed to apply a mortar bed under the HardieBacker, or the mortar skinned over before the board was laid, preventing a bond.
  • Actionable Fix: If the tile is already set, the only permanent fix is to remove the affected area. If caught before tiling, remove the board, scrape the dried thin-set, and re-apply fresh mortar.
• Scenario: Screw Heads Stripping or Not Sinking Flush


  • Root Cause: Using a standard drill instead of an impact driver, or attempting to drive screws into a joist that is exceptionally hard (like old-growth Douglas Fir).
  • Actionable Fix: Use a high-torque impact driver and ensure you are using the specific T-25 or Phillips bits provided with the HardieBacker screw packs. If a screw fails to sink, back it out and move 2 inches to one side; do not leave a protruding screw head.
• Scenario: Cracked Grout Along Board Seams


  • Root Cause: Failure to use alkali-resistant tape or neglecting to stagger the joints of the HardieBacker relative to the subfloor.
  • Actionable Fix: Rake out the cracked grout and replace it with a color-matched 100% silicone caulk. Silicone is flexible and can absorb the minor movement that the rigid grout could not.
• Scenario: Board Edges Lifting or "Curling"


  • Root Cause: Missing fasteners at the corners or edges, or applying the board over a subfloor with active moisture issues.
  • Actionable Fix: Add additional screws every 4 inches along the lifting edge to pull it back into the mortar bed. If the subfloor is wet, the source of the leak must be fixed before proceeding.

Frequently Asked Questions

Which side of the HardieBacker should face up?

You should install HardieBacker with the smooth side up. This side usually features a printed screw pattern (circles or dots) every 8 inches to guide your fastener placement. The textured side is designed to provide extra grip in specific vertical wall applications, but for floors, the smooth side allows for easier notched-trowel movement when setting tile.

Do I really need to use thin-set under the board?

Yes, the thin-set mortar is mandatory. Without it, the HardieBacker will only touch the "high spots" of your plywood subfloor. Over time, the weight of people walking on the floor will cause the board to flex into the "low spots," which leads to cracked grout and broken tiles. The mortar acts as a custom-molded shim that provides 100% support.

Can I use a regular circular saw blade to cut the boards?

You should not use a standard wood-cutting blade. Cement board will dull a carbide wood blade in just a few cuts. Instead, use a polycrystalline diamond (PCD) blade specifically designed for fiber cement. Additionally, ensure you are cutting outdoors or using an OSHA-compliant dust extraction system, as cement dust is highly abrasive and harmful to your lungs.

How long must I wait after installation before I can lay tile?

If you used a standard modified thin-set, you can typically begin laying tile immediately after the HardieBacker is fastened and the seams are taped. Because the board is mechanically fastened, you do not need to wait for the underlying mortar bed to fully cure. However, walking on the board excessively before the mortar sets can occasionally disturb the bond, so work "out of the room" if possible.

Is HardieBacker waterproof for a bathroom floor?

HardieBacker is "water-durable," meaning it will not rot, swell, or disintegrate when wet. However, it is not a "waterproof barrier." Water can still pass through the board to the wooden subfloor below. For areas prone to standing water, such as a curbless shower entry, you must apply a liquid-applied waterproofing membrane over the top of the HardieBacker before tiling.
