How To Install Full Extension Drawer Slides Like A Professional

Installing full extension drawer slides requires precision measurements, exact cabinet leveling, and a strict adherence to hardware clearance tolerances. By ensuring a uniform 1/2-inch side gap on each side and mounting the cabinet and drawer members parallel, you will achieve buttery-smooth travel and a 100-pound load capacity without binding or sagging.

Pre-Operation & Equipment Checklist

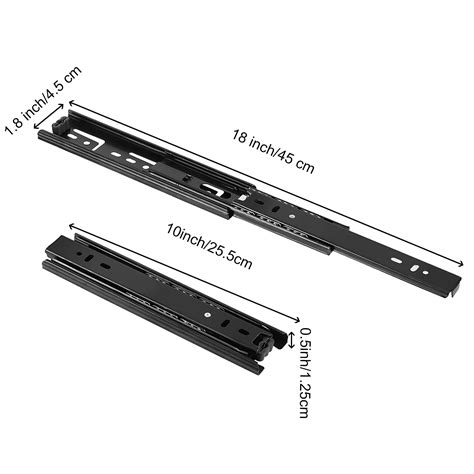

Achieving a factory-quality installation for full extension ball-bearing slides requires more than just a screwdriver; it demands strict dimensional accuracy. A full extension slide allows the drawer box to pull completely out of the cabinet carcass, exposing the very back of the drawer. Because these slides use precision-machined steel tracks and ball bearings, any twist, warp, or misalignment in your cabinet frame or drawer box will cause the mechanism to bind, skip, or fail prematurely.

• Essential Gear, Tools, and Materials:


  • Heavy-duty steel full extension drawer slides (matched precisely to your measured drawer depth)
  • Cordless drill and assorted driver bits
  • 1/8-inch twist drill bit for pilot holes
  • Combination square or framing square
  • 6-foot or 2-foot spirit level
  • Drawer slide jig or mounting spacer blocks (1/2-inch thick)
  • Titebond wood glue and #6 x 5/8-inch pan-head wood screws (if upgrading factory fasteners)
  • Pencil, tape measure, and center punch
• Mandatory Prerequisite Knowledge and Standards:


  • Standard full extension slides universally require a 1/2-inch clearance gap on both the left and right sides of the drawer box (totaling a 1-inch deduction from the inside cabinet opening width).
  • The drawer box must be completely square, glued, and clamped before mounting hardware.
• Estimated Budget and Duration Benchmarks:


  • Budget: Between $15 and $40 per pair depending on load rating (standard 100 lb vs. heavy-duty 500 lb) and soft-close features.
  • Duration: Approximately 30 to 45 minutes per drawer for first-time installers.

Step-by-Step Installation Workflow

Step 1: Dismantle and Separate the Slide Members

Full extension slides arrive as multi-component assemblies. Pull the inner slide member (the part that attaches to the drawer box) all the way out until it stops. Locate the plastic or metal release lever or spring clip inside the channel. Press this lever down (or up, depending on the brand such as Accuride or Blum) while pulling the inner member completely away from the intermediate and cabinet members. Set the drawer members aside and keep the cabinet members together.

Step 2: Calculate and Mark Cabinet Member Locations

Measure the vertical height inside your cabinet opening where you want the center of the drawer to sit. Using a combination square, transfer this layout line horizontally across both the left and right interior walls of the cabinet carcass.

Pro-Tip: For face-frame cabinets, ensure the front of the cabinet slide sits flush with the back edge of the face frame, or use rear mounting sockets if you are floating the slide inside a frameless or face-frame void. For frameless (European-style) cabinets, the cabinet member can mount flush with the front edge of the cabinet box.

Step 3: Install the Cabinet Members

Place the cabinet slide member against your layout line. Use the horizontal mounting slots rather than the round holes; this allows you to loosen the screws slightly and adjust the slide forward, backward, up, or down later if your alignment is off by a millimeter. Drive screws into the horizontal slots, check the slide with a bubble level to ensure it is perfectly parallel to the cabinet bottom, and then drive locking screws into the round holes to lock the position. Repeat this exact process for the opposite interior wall, ensuring both cabinet members are at the exact same height.

Step 4: Mount the Drawer Members to the Box

Measure the height of your drawer box sides and find the vertical center line. Place the inner drawer member against the side of the drawer box, aligning its front edge flush with the front face of the drawer box.

Warning: Never mount the drawer slide flush with the bottom edge of the drawer box unless the slide specifically requires bottom-flange mounting. Most standard side-mount full extension slides require the slide center line to match the layout line established on the cabinet box.

Secure the drawer member using the vertical adjustment slots at the front and back of the slide. Use a self-centering V-bit drill bit to pilot your holes dead-center in the screw slots. Repeat for the other side of the drawer box.

Step 5: Test-Fit, Adjust, and Finalize

Carefully align the intermediate rails of the cabinet members in the extended position. Lift the drawer box, align the drawer members with the intermediate rails, and push the drawer straight in. You will feel resistance as the ball bearings engage. Push the drawer firmly closed; the internal latching mechanism will snap into place. Pull the drawer out slowly. If it binds, sticks, or requires excessive force, loosen the slotted mounting screws on either the cabinet or drawer members and shift them slightly until the drawer glides smoothly with a single finger. Once dialed in, drive permanent security screws into the round anchor holes.

Technical Specifications and Slide Comparison Matrix

Common Installation Failures and Field Fixes

• Root Cause: The drawer binds halfway through travel and refuses to close completely.


  • Actionable Fix: Your cabinet walls are likely out of square, causing the slides to pinch inward. Loosen the rear mounting screws on one cabinet member and insert a thin plastic washer or shim behind the slide to widen the gap.
• Root Cause: The drawer sags downward when fully extended, scraping the cabinet bottom or face frame below.


  • Actionable Fix: You likely used round mounting holes instead of slotted ones during initial setup, preventing vertical adjustment. Loosen all screws, lift the front of the drawer slightly, and retighten the screws using the vertical adjustment slots.
• Root Cause: The ball-bearing retainer cage pops out of position or falls out during installation.


  • Actionable Fix: The intermediate rail was forced past its natural stop point. Push the retainer cage firmly back to the front of the slide channel using a flathead screwdriver, then re-engage the drawer slowly.

Frequently Asked Questions

How much space do I need on the sides for full extension drawer slides?

Standard full extension ball-bearing slides require exactly 1/2-inch of clearance on both the left and right sides. This means your finished drawer box must be exactly 1 inch narrower than the clear interior opening of your cabinet carcass.

Can I install full extension slides without special jigs?

Yes, you can install them using a combination square, a pencil, and custom wooden spacer blocks cut to support the drawer at the correct height. However, a dedicated drawer slide mounting jig speeds up the process and eliminates human error when transferring measurements from cabinet to cabinet.

What is the difference between side-mount and undermount full extension slides?

Side-mount slides attach to the exterior sides of the drawer box and the interior walls of the cabinet, remaining visible when the drawer is open. Undermount slides mount underneath the drawer box bottom and are completely concealed from view, offering a cleaner aesthetic and integrated soft-close technology.

Why won't my drawer close all the way after installing full extension slides?

This is typically caused by debris inside the steel ball-bearing track, misaligned cabinet members that are not parallel to each other, or screw heads protruding past the surface of the slide channel. Check that all screw heads are driven flush and ensure your cabinet width is uniform from front to back.
