How To Install An EZ Pass Transponder: Step-by-Step Windshield Mounting Guide

To install an EZ Pass transponder, clean the upper interior windshield surface behind the rearview mirror with isopropyl alcohol, attach the adhesive Dual Lock strips to the transponder, and press the device firmly onto the glass at least one inch to the right or left of the mirror post and two inches below the roofline. This precise placement ensures that toll gantry radio frequency identification (RFID) readers can establish a clear line of sight with your transponder without obstructing your view of the road. Following these dimensional requirements guarantees error-free toll registration and prevents costly administrative violations.

Pre-Installation Planning and Windshield Inspection

Installing an electronic toll collection transponder requires more than simply sticking the device to the nearest piece of glass. To ensure uninterrupted communication between your vehicle and the overhead toll gantries, you must consider the physics of radio frequency (RFID) transmission, the chemistry of glass adhesives, and the specific materials embedded within your vehicle's windshield.

Modern automotive glass often features solar-reflective coatings, acoustic layers, or integrated heating elements. Many premium and electric vehicles utilize athermic or metallized windshields containing microscopic layers of metal oxides designed to keep the cabin cool by reflecting infrared light. Unfortunately, these metallic layers act as a Faraday cage, severely dampening or completely blocking the 915 MHz radio signal used by the toll system. Before beginning the installation process, consult your vehicle owner's manual to identify if your windshield is metallized. If it is, you must locate the manufacturer-designated "RF pass-through window," which is typically a black-dotted matrix pattern located adjacent to the rearview mirror.

Technical Preparation and Tools Checklist

• Essential Equipment: Authentic EZ Pass transponder unit, two pairs of 3M Dual Lock interlocking adhesive strips, and a high-purity cleaning solvent.
• Cleaning Agents: 70% or higher Isopropyl Alcohol (IPA) prep pad or a clean microfiber cloth saturated with rubbing alcohol. Avoid commercial glass cleaners containing ammonia, silicone, or water-repellent polymers, as they leave a microscopic film that prevents adhesive bonding.
• Environmental Prerequisites: Ambient air and glass temperatures must be above 50 degrees Fahrenheit (10 degrees Celsius). Applying adhesive to freezing glass prevents proper wet-out of the acrylic foam tape, causing the transponder to fall off when the vehicle cabin warms up.
• Time and Financial Investment: The physical installation takes approximately five minutes. The financial cost is zero, as all mounting strips are provided free of charge by your state's tolling authority.

Step-by-Step EZ Pass Windshield Integration

Step 1: Identify the Optimal Mounting Zone

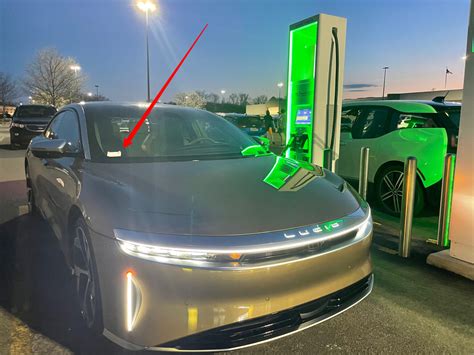

Sit in the driver's seat and locate the area directly behind your rearview mirror. The transponder must be mounted high on the windshield to allow the overhead toll readers to scan it at a wide angle. Measure a zone that is at least two inches below the top roofline (the metal header panel) and at least one inch to the right or left of the rearview mirror support post.

If your vehicle features a dark, dotted screen pattern (the frit) behind the mirror, this is often the ideal location. The frit is non-metallic and acts as a primer layer for the glass, which actually aids adhesive adhesion while hiding the white transponder from exterior view.

Warning: Do not place the transponder within the sweep of your windshield wipers if you are mounting an exterior unit, and never place an interior transponder directly behind the solid metal casing of a rain sensor, forward-collision camera, or auto-dimming rearview mirror, as these metal components will shield the radio signal.

Step 2: Prepare the Glass Surface

Once you have identified the target mounting zone, saturate a clean microfiber cloth with isopropyl alcohol. Scrub the glass vigorously to remove off-gassing plasticizers from the dashboard, dust, fingerprints, and oily residues. Allow the surface to air-dry completely for at least sixty seconds. Do not dry the area with a paper towel, as this can introduce paper fibers and static electricity to the clean surface.

Pro-Tip: If you are installing the transponder during winter, run your vehicle's windshield defroster for five to ten minutes beforehand to warm the glass to a comfortable room temperature. This ensures the adhesive achieves its maximum chemical bond.

Step 3: Align and Assemble the Dual Lock Fasteners

Your transponder kit includes interlocking plastic strips featuring mushroom-shaped stems rather than traditional hook-and-loop fibers. Take two of these strips and press them together until you hear a distinct click and feel them lock flat against one another.

With the strips locked together, peel the protective paper backing off one side of the paired strips. Carefully align them with the molded indentation zones on the back of your transponder. Press the exposed adhesive firmly onto the plastic casing of the transponder, holding pressure for ten seconds to activate the pressure-sensitive adhesive.

Step 4: Mount the Transponder to the Windshield

Peel the remaining paper backing off the opposite side of the paired strips, exposing the adhesive that will bond to the windshield. Hold the transponder horizontally, ensuring the logo or barcode is facing right-side up and readable from inside the cabin.

Align the transponder with your pre-selected, cleaned zone on the windshield. Press the entire assembly firmly against the glass. Apply uniform, heavy thumb pressure directly over the locations of the adhesive strips for at least thirty continuous seconds. This pressure forces the acrylic foam adhesive to conform to the microscopic imperfections of the glass surface.

Step 5: Verify the Installation and Allow Curing

Visually inspect the installation from the exterior of the vehicle. The adhesive strips should appear completely flat against the glass with no visible air bubbles or lifting edges. While 3M Dual Lock adhesive bonds immediately, it requires twenty-four hours to cure to its full strength. Avoid removing the transponder from its mounted strips during this initial curing window to prevent pulling the adhesive away from the glass.

Transponder Types, Positioning Coordinates, and Material Specifications

Different vehicle profiles and windshield designs require distinct transponder form factors. Choosing the wrong configuration or placing a unit in an unauthorized zone can result in failed reads, double-billing, or video-toll surcharges. Use the following specifications to match your vehicle configuration with the correct tolling equipment:

Resolving Signal Failures and Mount Degradation

Even with a seemingly straightforward installation, changes in temperature, glass composition, and vehicle electronic systems can lead to system failures. Below are the most common real-world failure scenarios along with technical solutions to resolve them.

Scenario 1: Toll Gantry Does Not Detect Transponder (Missed Tolls)

• Root Cause: The transponder is likely shielded by a metallized solar-reflective coating on the windshield, or it was mounted upside down, which alters the polarization of the internal patch antenna. Alternatively, the internal lithium battery of the transponder may be depleted.
• Actionable Fix: Relocate the transponder to the black-dotted matrix zone near the rearview mirror, which is free of metallic coatings. Ensure the barcode and manufacturer text are facing right-side up, toward the floor of the vehicle. If the transponder is more than five years old, take it to your local toll authority customer service center to test the battery and request a replacement.

Scenario 2: Adhesive Strips Peel Off Windshield in Extreme Heat

• Root Cause: The glass surface was prepped with a standard ammoniated glass cleaner that left a slick chemical barrier, or the installation occurred in cold temperatures, preventing the adhesive from wetting out.
• Actionable Fix: Remove the failed adhesive from both the glass and the transponder using a plastic scraper. Clean the glass thoroughly with a 70% isopropyl alcohol prep pad. Obtain a fresh set of authentic, high-temperature-rated 3M Dual Lock strips. Warm the glass to at least 70 degrees Fahrenheit using the vehicle's heater before pressing the new strips firmly onto the clean surface.

Scenario 3: Bumper-Mounted Tag Causes License Plate Blockage Citations

• Root Cause: The exterior transponder was mounted using the bottom holes of the license plate frame, causing the unit to hang down and obscure the state name, registration expiration decals, or plate numbers.
• Actionable Fix: Remove the transponder and reinstall it using only the top two screw holes of the front license plate frame. Ensure the unit sits flat against the top of the plate with the mounting tabs facing upward. Use the provided security screws to lock the unit in place and prevent theft or shifting during highway driving.

Scenario 4: Multiple Vehicles Sharing a Single Transponder Miss Tolls

• Root Cause: The driver is holding the transponder up to the glass manually while driving through the toll lane, or the vehicle license plates are not registered to the active EZ Pass account. Holding the transponder by hand blocks the RF signal with human tissue and bone.
• Actionable Fix: Never hold a transponder by hand. Instead, log into your toll portal and register the license plates of all household vehicles to your account. Purchase extra sets of Dual Lock mounting strips so you can securely click the transponder into a mounted position in whichever vehicle you are driving.

Frequently Asked Questions

Can I mount my EZ Pass transponder vertically?

No, you should not mount your transponder vertically. The internal patch antenna is engineered and polarized to transmit horizontally. Mounting the device vertically degrades the RF communication link between the transponder and the overhead toll gantry, which can result in missed toll reads and administrative fees.

What should I do if my vehicle has a heated windshield or an integrated defroster?

If your vehicle has tiny, visible tungsten wires running vertically through the glass or a metallic solar-attenuating layer, you cannot use a standard interior transponder. You must contact your toll authority and request an exterior license plate mount tag, which fastens directly to your front bumper's license plate screw holes.

How do I safely remove an old transponder and its adhesive strips?

To remove the transponder, gently pull it away from the glass to separate the interlocking Dual Lock stems. To remove the remaining adhesive strips from the windshield, slide a plastic razor blade or putty knife under the corner of the adhesive foam. Slowly peel it back while applying a small amount of adhesive remover or isopropyl alcohol to dissolve the polymer bond.

Can I place my transponder in a pocket, glove box, or center console?

No, the transponder will not function reliably if placed in a glove box, center console, or pocket. The metal, plastic, and leather structures of your vehicle interior block and scatter the 915 MHz radio waves, preventing the overhead readers from identifying your account as you pass through.

Why does my transponder have a slide switch?

Transponders equipped with a sliding switch are designated as Flex or HOV units. These allow you to declare the number of passengers in your vehicle before starting your trip. When the switch is slid to show "HOV 2+" or "HOV 3+", high-occupancy toll lanes will automatically apply discounts or waive fees, provided you meet the passenger requirements for that specific corridor.

Ensure Toll Compliance and Seamless Travel

Properly aligning and securing your transponder ensures hassle-free highway travel and protects you from unexpected toll violations. Once your unit is mounted in the correct physical zone, verify your online toll account registration to ensure your vehicle plates are fully updated and active.
