How To Install EPDM Rubber Roofing: A Comprehensive Professional Guide

Installing an ethylene propylene diene monomer (EPDM) single-ply membrane is one of the most reliable methods for waterproofing low-slope and flat roofs. Success depends entirely on rigorous substrate preparation, precise adhesive flash-off times, and meticulous detailing around penetrations to achieve a watertight seal that lasts up to 50 years.

Pre-Operation & Equipment Checklist

Executing a professional EPDM installation requires specialized commercial roofing tools, careful site staging, and adherence to manufacturer specifications. Because EPDM is typically installed in large, uninterrupted sheets, proper planning prevents premature bonding, wrinkles, and structural moisture infiltration.

• Essential Gear & Tools: Heavy-duty utility knives with hook blades, 3-inch silicone seam rollers, magnetic strip hammers, long-handled water-base adhesive rollers, chalk lines, and a dedicated heat gun for detailing.
• Materials: .045-inch or .060-inch non-reinforced EPDM membrane, bonding adhesive (solvent-based or water-based depending on substrate), seam tape (minimum 3 inches wide), primer/activator, lap sealant, and ISO insulation boards if specified.
• Prerequisites & Benchmarks: The ambient temperature must be 40°F (4°C) and rising during application. The roof deck must be completely dry, structurally sound, and free of protruding fasteners, debris, and oils.
• Duration & Scope: A standard 500-square-foot residential flat roof typically requires two experienced installers working across a full 8-to-10-hour day.

Step-by-Step EPDM Installation Workflow

Step 1: Substrate Preparation and Insulation Laying

Inspect the existing roof deck to ensure it meets structural deflection limits and is completely smooth. Sweep away all loose debris, dust, and gravel. If you are applying the membrane over wood or concrete, install polyisocyanurate (ISO) insulation boards mechanically fastened or adhered with low-rise foam adhesive according to local wind uplift codes. Stagger the insulation joints by at least 12 inches to eliminate thermal bridging and create a flat, stable plane for the rubber membrane.

Warning: Never install EPDM directly over polystyrene insulation without a cover board, as certain solvents in adhesives will chemically dissolve the foam core.

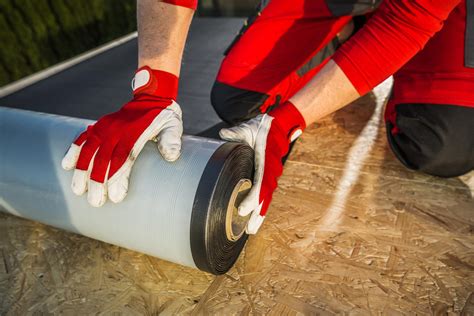

Step 2: Relaxing and Positioning the EPDM Membrane

Unroll the EPDM membrane over the prepared substrate and allow it to relax for a minimum of 30 minutes to two hours depending on ambient temperature. This crucial relaxation phase releases the factory stresses and tight manufacturing curls inherent in rolled rubber. Once relaxed, align the sheet across the roof deck, ensuring a minimum 3-inch overlap for adjoining panels and sufficient overhang at the perimeter drip edges for proper fastening.

Step 3: Folding and Applying Bonding Adhesive

Fold the EPDM membrane cleanly back in half along the center axis, exposing half of the clean substrate while keeping the other half covered. Stir the bonding adhesive thoroughly until uniform. Apply the adhesive using a solvent-resistant medium-nap paint roller to both the exposed roof substrate and the underside of the EPDM membrane simultaneously in a uniform, consistent coat. Avoid pooling or heavy globs, which can cause bubbles or blisters beneath the rubber.

Step 4: Rolling and Adhering the Membrane

Allow the bonding adhesive to reach the proper flash-off state, which is typically achieved when the glue is tacky to the touch but does not string or transfer to a dry gloved finger. Carefully roll the membrane backward into the wet adhesive, smoothing it out from the center toward the outer edges to prevent air pockets. Immediately roll the entire adhered surface with a heavy weighted lawn roller or broom to ensure 100% positive contact between the membrane and the substrate. Repeat this exact process for the second half of the roof sheet.

Step 5: Flashing Details and Seam Integration

Clean all overlapping seams and penetration areas using EPDM primer applied with a scrub pad, allowing it to dry until flash-off occurs. Apply 3-inch or 6-inch seam tape centered over the joint, and roll it firmly with a silicone hand roller using heavy downward pressure. Apply uncured flashing tape around roof vents, pipes, and scuppers, rounding all corners to prevent premature peeling. Finish all exposed cut edges of tape and flashing with a continuous bead of polyurethane lap sealant tooled smooth with a trowel.

EPDM Specification Matrix

Common Site Failures and Field Fixes

Even experienced installers occasionally encounter challenges during EPDM installation. Understanding the root causes of these issues allows for immediate field corrections before water penetration occurs.

• Root Cause: Blistering or bubbling across the field of the roof. Actionable Fix: Bubbles caused by trapped air or moisture during rolling usually dissipate over time and rarely affect waterproofing; however, if the bubble is large or contains unbonded adhesive, slice the blister open, clean out failing glue, re-adhere the rubber to the deck, and patch over the cut with a circular piece of peel-and-stick EPDM cover tape.
• Root Cause: Seam separation or edge peeling along tape lines. Actionable Fix: Inadequate priming or rolling pressure typically causes tape failure. Lift the unbonded edge carefully, apply fresh EPDM primer to both surfaces, allow it to dry, insert a new strip of repair tape, roll thoroughly, and seal the exposed edge with lap sealant.
• Root Cause: Punctures or tears in the membrane caused by dropped tools or foot traffic. Actionable Fix: Clean a 6-inch radius around the puncture using EPDM primer, apply a patch of peel-and-stick EPDM patch material that extends at least 3 inches past the damage in every direction, and edge-seal with lap sealant.

Frequently Asked Questions

Can EPDM rubber roofing be installed over old asphalt shingles?

Installing EPDM directly over existing asphalt shingles is strongly discouraged. The uneven shingle texture will telegraph through the rubber membrane, granules can puncture the thin rubber over time, and trapped heat can degrade the integrity of both roofing layers. Always strip down to the bare deck or install an approved flat roof insulation board over a recovery board first.

What is the difference between black and white EPDM membranes?

Black EPDM absorbs solar heat, which is beneficial in colder northern climates for reducing heating loads and aiding snowmelt. White EPDM (often called white-on-black or fully reflective) reflects solar radiation, reducing interior cooling costs in warmer climates and meeting strict municipal cool roof energy codes.

How do you clean and maintain an EPDM roof?

Maintenance involves clearing leaves, branches, and debris from drains and scuppers twice a year. Clean the membrane using a mild, low-sudsing detergent mixed with water and a soft-bristle brush, rinsing thoroughly afterward. Avoid petroleum-based solvents, harsh chemical cleaners, or grease, as these will break down the rubber polymer structure.

Do I need to use primer before applying EPDM seam tape?

Yes, EPDM primer is mandatory for all tape and adhesive applications involving cured EPDM membranes. The primer chemically cleans, activates, and conditions the rubber surface to create a molecular bond with the pressure-sensitive adhesive tape. Skipping primer will inevitably lead to catastrophic seam delamination.

Start your roofing project with confidence by sourcing commercial-grade materials and adhering strictly to manufacturer installation guidelines for a permanently waterproof finish.
