How To Install A Crankshaft Position Sensor: A Professional Diagnostic And Replacement Guide

Replacing a crankshaft position sensor (CKP) requires precise mechanical alignment and adherence to manufacturer-specific torque specifications to ensure the Engine Control Module receives accurate rotational velocity data. Successful installation restores ignition timing and fuel injection synchronization, effectively eliminating intermittent stalling, erratic idle, or no-start conditions.

Pre-Procedure Planning and Tool Calibration

Before initiating the replacement, understand that the crankshaft position sensor operates via magnetic induction or the Hall effect to track the physical position of the crankshaft. Because this component is mission-critical for internal combustion timing, failure to install it flush against the engine block or within the correct air-gap tolerance can lead to permanent engine damage or immediate stalling.

• Essential Diagnostic Equipment:


  • OBD-II Scanner capable of reading live data streams and clearing diagnostic trouble codes (DTCs).
  • Metric socket set (typically 8mm through 14mm) with various drive extensions and a swivel joint.
  • Torque wrench capable of measuring in-lb (inch-pounds) or low-range Nm (Newton-meters).
  • Dielectric grease to protect the electrical harness connection.
  • A magnetic retrieval tool for retrieving bolts dropped into the timing cover or bell housing.
• Mandatory Prerequisites:


  • Verify the vehicle is on a level surface with the engine cold to prevent burns and thermal expansion interference.
  • Disconnect the negative battery terminal to prevent accidental short-circuiting of the sensor harness.
  • Estimated duration: 45 to 90 minutes depending on sensor accessibility.
  • Estimated cost: $40–$150 USD for the OEM-grade sensor plus incidental shop supplies.

Procedural Workflow for Precision Installation

Step 1: Secure Vehicle Access and Component Identification

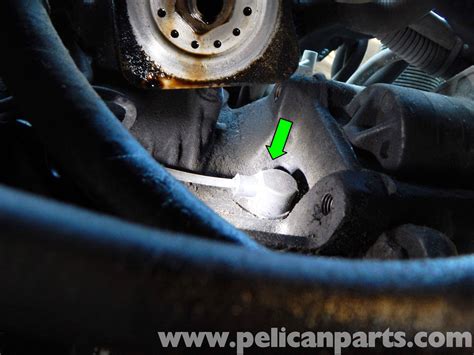

Locate the sensor based on your vehicle's service manual. Most are positioned at the bottom of the engine block near the crankshaft pulley (harmonic balancer) or inserted into the transmission bell housing near the flywheel. If the sensor is behind the harmonic balancer, you may need to remove the front tire, the plastic splash shield, and potentially the serpentine belt and crankshaft pulley. Use a floor jack and jack stands to support the vehicle properly; never rely on a hydraulic jack alone.

Step 2: Extracting the Faulty Unit

Once you have visual access, unplug the electrical connector by depressing the release tab. Do not pull on the wires themselves, as brittle insulation can snap. Unscrew the mounting bolt—usually a single 10mm bolt. Carefully wiggle the sensor to break the seal of the O-ring. If the sensor is stuck, do not apply excessive force with a pry bar, as the plastic housing can shatter, leaving fragments inside the engine timing cover. Use a light penetrating oil and allow it to soak for ten minutes if the sensor is seized.

Step 3: Sealing and Mechanical Insertion

Clean the mounting surface on the engine block thoroughly with a lint-free cloth. Residual oil, dirt, or debris can prevent the sensor from sitting flush, which alters the air gap and causes signal interference. Inspect the new sensor's O-ring; if it is dry, apply a microscopic layer of clean engine oil to facilitate a proper seal. Insert the new sensor into the housing until it makes firm contact.

Warning: Do not force the sensor into place using the mounting bolt. If it does not slide in by hand, the O-ring is likely misaligned or the hole is obstructed. Forcing the bolt to draw the sensor in will crack the mounting ear of the plastic housing.

Step 4: Final Torque and Electrical Restoration

Insert the mounting bolt by hand to prevent cross-threading the block. Tighten the bolt to the manufacturer’s specific torque setting, which is often very low—frequently between 70 and 100 inch-pounds. Reconnect the electrical harness until you hear an audible click. Apply a small amount of dielectric grease to the connector pins if the environment is prone to moisture or corrosion. Reinstall any removed splash shields or pulleys, ensuring all belt tensions meet factory specifications.

Technical Parameter Comparison for Crankshaft Sensors

Common Failure Scenarios and Field Remedies

• Root Cause: Incorrect Air Gap


  • If the sensor is too far from the reluctor wheel, the Engine Control Module (ECM) will not detect a strong enough pulse.
  • Actionable Fix: Inspect the mounting surface for debris or improper shims. Some vehicles require specific shims to adjust the distance between the sensor tip and the harmonic balancer teeth.
• Root Cause: Harness Corrosion


  • High-resistance connections caused by road salt or moisture can cause erratic signal loss during vehicle vibration.
  • Actionable Fix: Use a multimeter to perform a voltage drop test across the connector. If resistance exceeds 0.5 ohms, replace the pigtail harness rather than just the sensor.
• Root Cause: Improper "Relearn" Procedure


  • Some modern domestic and import vehicles require a Crankshaft Position Variation Relearn to calibrate the sensor timing with the ECM.
  • Actionable Fix: Use a professional-grade scan tool to initiate the "Crankshaft Relearn" procedure; failing to do this often leaves the check engine light (CEL) illuminated even with a functional sensor.

Frequently Asked Questions

Can I drive the car with a faulty crankshaft position sensor?

Driving with a compromised crankshaft position sensor is generally discouraged and often impossible. Because the computer relies on this sensor to determine engine speed and timing, a failure will typically cause the engine to stall unexpectedly or prevent it from starting entirely.

Do I need to disconnect the battery before installation?

Yes, disconnecting the negative battery terminal is mandatory to protect the sensitive electronics within the ECM. An accidental short between the sensor power wire and the block can fry the internal circuit of the computer, turning a simple repair into an expensive module replacement.

How do I know if my sensor is a Hall Effect or Inductive type?

You can usually distinguish them by the number of wires in the harness. A two-wire sensor is almost always an inductive/passive type, while a three-wire sensor indicates a Hall Effect type that requires a dedicated power supply from the engine control unit.

Does a new crankshaft position sensor need to be programmed?

While the physical installation is "plug and play," many modern vehicles require a software-based relearn procedure. Without this electronic calibration, the engine may misfire or trigger a P0300 random misfire code because the computer is not accurately synced with the mechanical engine timing.
