Master Your Cosco Scenera NEXT Installation: A Professional Safety Guide

Secure the Cosco Scenera NEXT car seat by routing the vehicle seat belt or LATCH strap through the correct color-coded belt path and tightening until the seat moves less than one inch at the base. Ensure the harness straps are positioned at or below the shoulders for rear-facing or at or above for forward-facing, always engaging the top tether for all forward-facing installations.

Essential Gear and Pre-Installation Safety Audit

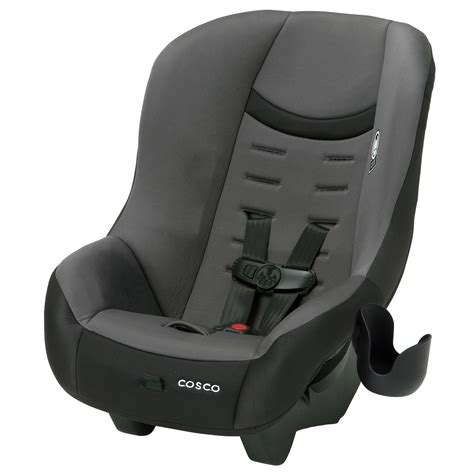

Before beginning the installation of the Cosco Scenera NEXT, it is critical to understand that this specific model is a lightweight, "no-frills" seat often favored for travel and tight vehicle spaces. However, its simplicity means it lacks the built-in lock-offs found in premium seats, requiring the installer to have a firm grasp of vehicle-specific belt locking mechanisms. Failure to properly lock the seat belt is the most common error with this model.

Preparation Checklist and Tools

• Essential Gear: The Cosco Scenera NEXT car seat, the manufacturer’s instruction manual, and your vehicle’s owner manual (specifically the "Child Restraints" section).
• Mandatory Standards: Verify the seat is within its expiration date (typically 8 years from the date of manufacture found on the white sticker on the side or back of the shell).
• Supplies for Leveling: A tightly rolled towel or a pool noodle may be necessary to achieve the correct recline angle for rear-facing infants, as the Scenera NEXT has a very upright natural profile.
• Duration Benchmarks: Allow 20–30 minutes for a first-time installation to ensure all tension checks and harness adjustments are completed without haste.
• Physical Space: Clear the vehicle seat of debris and ensure the vehicle is parked on a level surface to accurately judge the recline level indicator on the side of the car seat.

Step-by-Step Installation Protocols for Maximum Security

The Cosco Scenera NEXT is a convertible seat, meaning it can be installed in two distinct configurations. The National Highway Traffic Safety Administration (NHTSA) and the American Academy of Pediatrics (AAP) recommend keeping children rear-facing for as long as possible, usually until they reach the maximum height or weight limit of the seat.

Phase 1: Rear-Facing Installation (5–40 lbs and 19–40 inches)

Rear-facing is the safest position for infants and toddlers because the car seat shell absorbs the majority of the crash forces and protects the head, neck, and spine.

1. Prepare the Harness: Before placing the seat in the car, ensure the harness straps are threaded through the slots at or just below your child’s shoulders. On the Scenera NEXT, you may need to unhook the straps from the metal splitter plate at the back to move them to a different height.
2. Locate the Rear-Facing Belt Path: The rear-facing path is located under the area where the child’s thighs and knees will sit. It is usually marked with blue labels.
3. Position the Seat: Place the car seat on the vehicle seat so that it is rear-facing (the child will be looking at the back window).
4. The Recline Angle Check: Look at the level line molded into the side of the car seat shell. This line must be parallel to the ground. If the seat is too upright, place a rolled towel or pool noodle in the bight (the crease where the seat back meets the seat cushion) to kick the bottom of the car seat out.
5. Route the Connector: If using the LATCH system, thread the LATCH strap through the rear-facing belt path. If using a seat belt, thread the vehicle belt through the same path and buckle it. Ensure the strap lies flat and is not twisted.
6. Tighten and Lock: Put your hand in the seat and apply firm downward pressure. While pushing down, pull the tail of the LATCH strap or the shoulder portion of the vehicle belt to remove all slack.
7. The One-Inch Test: Grab the seat at the belt path (not the top of the seat) and try to move it side-to-side and front-to-back. It should not move more than one inch in any direction.

Warning: Never use both the LATCH system and the vehicle seat belt at the same time. Choose one method to ensure the seat performs as designed during an impact.

Phase 2: Forward-Facing Installation (22–40 lbs and 29–43 inches)

Note that the Cosco Scenera NEXT has a relatively low forward-facing weight limit. Transitions should only occur once the child has outgrown the rear-facing limits.

1. Adjust the Harness: Thread the harness straps through the slots at or just above the child’s shoulders.
2. Locate the Forward-Facing Belt Path: This path is located behind the child's back. It is usually marked with red labels.
3. Route the Top Tether: Drape the top tether strap (the long strap with a hook at the very top of the car seat) over the back of the vehicle seat. Do not tighten it yet.
4. Route the Primary Connector: Thread either the LATCH strap or the vehicle seat belt through the forward-facing belt path. Buckle the seat belt if applicable.
5. Secure the Base: Apply heavy pressure into the seat with your knee or hand. Pull the LATCH strap or vehicle belt tight. If using a seat belt, ensure you have engaged the locking retractor by pulling the belt all the way out until it clicks, then feeding it back in.
6. Attach and Tighten the Tether: Connect the tether hook to the designated tether anchor in your vehicle (check your manual for the exact location). Pull the tether strap until it is taut. This is a critical step that reduces forward head excursion in a crash.

Pro-Tip: The top tether is not optional for forward-facing. It significantly reduces the risk of brain and spinal cord injuries by preventing the top of the seat from tipping forward during a collision.

Technical Specifications and Compatibility Matrix

Understanding the physical limitations and requirements of the Cosco Scenera NEXT ensures you do not use the seat in an unsafe configuration. The following table outlines the primary metrics for the Scenera NEXT model.

Troubleshooting Common Installation Failures

Even with clear instructions, the lightweight design of the Cosco Scenera NEXT can present challenges during the tightening phase.

Scenario 1: The Seat Shifts More Than One Inch

• Root Cause: Insufficient tension or failure to lock the vehicle’s seat belt retractor. Many vehicles require you to pull the seat belt slowly all the way to the end to switch it into "Automatic Locking Retractor" (ALR) mode.
• Actionable Fix: Unbuckle the seat, pull the belt out fully to engage the click-click-click locking sound, then rebuckle. Use your body weight to compress the vehicle seat cushion while pulling the shoulder belt upward through the belt path.

Scenario 2: Harness Straps Are Uneven or Twisted

• Root Cause: The harness was not properly "settled" on the splitter plate at the back of the seat, or the child was buckled in over bulky clothing like a winter coat.
• Actionable Fix: Always remove bulky coats before buckling. Check the back of the seat to ensure both loops of the harness are securely hooked onto the metal splitter plate. Smooth the webbing through the slots to remove any folds.

Scenario 3: Difficulty Reaching LATCH Anchors

• Root Cause: The Scenera NEXT LATCH strap is sometimes shortened by being incorrectly routed through the "opposite" belt path.
• Actionable Fix: Ensure the LATCH strap is only going through the path you are currently using (Rear vs. Forward). If it feels too short, verify that the adjuster buckle is not caught inside the plastic shell of the seat.

Scenario 4: Insecure Fit on Aircraft Seats

• Root Cause: The airplane buckle often ends up directly behind the child's back in the forward-facing position, making it uncomfortable or difficult to tighten.
• Actionable Fix: Ask for a seat belt extender from the flight attendant, or try flipping the buckle (giving it a half-twist) before latching it to help the buckle lie flatter against the back of the seat.

Frequently Asked Questions

Can I use a pool noodle with the Cosco Scenera NEXT?

Yes, the manufacturer allows the use of a rolled towel or a single pool noodle to achieve the correct recline angle for rear-facing installations. This is often necessary in vehicles with deeply sloped seats to ensure the child's airway remains open.

How do I know if my vehicle seat belt locks?

Pull your seat belt out slowly until it is all the way to the end. Give it a small tug. If it retracts and doesn't let you pull it out again, it is in locking mode. If it remains loose, you may need to use a locking clip, though most cars manufactured after 1996 have locking belts.

What is the "Pinch Test" for the harness?

After buckling the chest clip and the crotch buckle, try to pinch the harness webbing at the child's shoulder. If you can pinch a fold of the strap between your fingers, the harness is too loose. Tighten it until your fingers slide off the webbing without grabbing any excess material.

When should I stop using the LATCH system?

For the Cosco Scenera NEXT, you can use the LATCH system for the entire life of the seat, as its maximum weight limit is 40 pounds. Most vehicles and car seats require switching to a seat belt installation once the combined weight of the child and seat reaches 65 pounds, but the Scenera is so light that you will hit the child's weight limit first.

Is the Cosco Scenera NEXT safe for newborns?

While the seat is rated for 5 pounds, the lowest harness slots may still be too high for very small infants. Ensure the straps are at or below the shoulders; if they are above the shoulders, the baby is too small for this seat and needs an infant carrier.

Professional Child Passenger Safety Support

To ensure your installation meets all local and federal safety requirements, consider having your seat inspected by a certified Child Passenger Safety Technician (CPST). You can find a local technician through the Safe Kids Worldwide database to provide a final verification of your work.
