How To Install A Condensate Neutralizer On A High-Efficiency Furnace

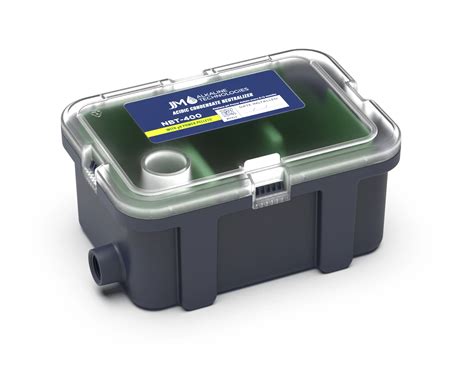

Installing a condensate neutralizer on a high-efficiency condensing furnace prevents acidic wastewater from corroding your home’s drain pipes and damaging municipal sewer infrastructure. The process involves intercepting the PVC condensate discharge line, installing the neutralizer cartridge horizontally or vertically as specified by the manufacturer, and ensuring the effluent achieves a safe pH balance before entering the drainage system.

Pre-Installation Planning and Material Requirements

High-efficiency furnaces, specifically those with an Annual Fuel Utilization Efficiency (AFUE) rating of 90 percent or higher, produce acidic condensate as a byproduct of the combustion process. This liquid typically has a pH level between 3.0 and 4.0, which is sufficiently acidic to dissolve copper, cast iron, and even concrete piping over time. Before beginning, ensure the furnace is powered down and the condensate trap is clear of debris.

• Essential Tools and Gear
• Adjustable pipe cutter or fine-tooth hacksaw for PVC piping.
• Deburring tool or fine-grit sandpaper to smooth cut edges.
• PVC primer and medium-bodied cement for watertight connections.
• Adjustable wrench or channel-lock pliers for securing fittings.
• Replacement neutralizer media (calcium carbonate or magnesium oxide pellets).
• Bucket or catch basin to collect residual acidic water during the installation.
• Safety glasses and nitrile gloves to protect against acidic contact and PVC adhesives.
• Mandatory Standards: Verify that the neutralizer is rated for the BTU output of your specific furnace model to ensure adequate contact time for neutralization.

Executing the Condensate Neutralizer Installation Workflow

Step 1: Locating the Condensate Discharge Point

Identify the condensate drain line exiting the furnace cabinet. This is typically a 3/4-inch PVC pipe. You must install the neutralizer after the condensate trap but before the drainage line ties into the home’s main plumbing system. Choose a location that allows for easy access to the cartridge, as the internal media will require annual inspection and replacement.

Warning: Never install the neutralizer upstream of the condensate trap. Doing so will prevent the trap from maintaining its water seal, allowing combustion gases, including potentially deadly carbon monoxide, to leak into the living space.

Step 2: Cutting the Discharge Line

Once the installation path is cleared, place a catch bucket directly beneath the work area. Use the pipe cutter to remove a section of the discharge line commensurate with the length of the neutralizer housing plus an additional two inches for coupling room. Ensure the cut is clean and square to prevent leaks at the coupling points. Use the deburring tool to remove any burrs or rough edges from the interior of the pipe, as these can snag debris and lead to blockages.

Step 3: Configuring the Neutralizer Housing

Most neutralizers are directional. Check the housing for a directional flow arrow indicating the required orientation. Dry-fit the neutralizer into the gap in the pipe. If the installation is vertical, ensure the unit is braced securely to the furnace cabinet or a wall stud using the provided mounting clips. Excessive weight from the water-filled cartridge can cause the PVC piping to sag and eventually snap at the glued joints.

Step 4: Securing and Sealing Connections

Apply a uniform layer of PVC primer to the exterior of the furnace drain pipe and the interior of the neutralizer fittings. Once the primer is tacky, apply a thin, consistent coat of PVC cement. Insert the pipe fully into the fitting and give it a quarter-turn to ensure a hermetic seal. Hold the connection firmly for thirty seconds. Repeat this process for the downstream side of the unit. Allow the cement to cure for at least two hours before resuming furnace operations to prevent joint failure under pressure.

Step 5: Priming the Media and Final Testing

Before full-scale operation, pour a small amount of water through the inlet side of the neutralizer to verify flow and ensure no leaks are present at the joints. Observe the outlet to ensure the water flows freely. Once verified, monitor the furnace during the next heating cycle to confirm that the condensate flows through the neutralizer rather than backing up into the furnace cabinet.

Technical Parameters and Media Comparison

Troubleshooting Common Installation Failures

• Root Cause: Water Backing Up into Furnace. This is often caused by an improper slope or a blockage within the neutralizer cartridge itself. Actionable Fix: Ensure the discharge line has a minimum downward slope of 1/4-inch per foot. If the slope is correct, check the neutralizer for clogged media or sediment accumulation and flush the system.
• Root Cause: Leaking at PVC Joints. The most common culprit is improper application of primer or failing to wait for the glue to cure. Actionable Fix: Cut out the leaking section, re-clean the pipe ends, and re-glue using high-quality PVC solvent cement, ensuring you allow the full curing time recommended by the manufacturer.
• Root Cause: Acidic Corrosion Continuing Downstream. This occurs if the media is spent or the water is flowing through the unit too quickly for neutralization to occur. Actionable Fix: Check the pH level of the effluent with test strips. If the pH is below 6.0, replace the media pellets entirely and inspect for internal channeling where water may be bypassing the media bed.

Frequently Asked Questions

How often should I change the condensate neutralizer media?

You should typically replace the media every 12 months, or at the start of every heating season. It is recommended to check the level of the pellets periodically; if they have shrunk to less than half of the original volume, they are no longer providing effective neutralization and must be replenished.

Can I install a neutralizer on a gravity-drain system?

Yes, a neutralizer can be installed on both gravity-drain and pump-assisted systems. However, ensure the neutralizer is placed after the condensate pump if one is present, as the pump will move the fluid through the neutralizer regardless of gravity.

What happens if I do not install a neutralizer?

Without a neutralizer, the acidic condensate will eat through metal plumbing drains and degrade concrete foundations or septic system components over time. This leads to costly plumbing repairs that far exceed the price of a simple, annual neutralizer maintenance task.

Is it possible to bypass the neutralizer if it clogs?

You should never bypass a neutralizer. If the unit clogs, the internal condensate will back up into the furnace, potentially triggering a safety float switch that will disable the furnace. Always address the blockage or replace the unit to restore proper function.

Schedule your annual furnace maintenance check with a certified HVAC professional to ensure your drainage system remains compliant with building codes and free from acidic damage. Protecting your internal plumbing and the environment starts with a properly functioning condensate management system.
