How To Install A 30 Amp RV Outlet: A Comprehensive Electrical Guide
Installing a 30-amp RV outlet requires a dedicated 120-volt circuit using 10-gauge copper wiring terminated at a NEMA TT-30R receptacle. This process mandates adherence to the National Electrical Code (NEC) Article 551 to prevent terminal overheating, voltage drops, and critical damage to your RV power converter.
Pre-Procedure Planning and Electrical Requirements
Before beginning the physical installation, verify that your existing electrical service panel has sufficient capacity to handle an additional 30-amp load. An RV 30-amp circuit is not the same as a household 220/240-volt dryer outlet; it is a single-pole 120-volt connection. Connecting an RV to a 240-volt source will result in immediate and catastrophic destruction of the RV electrical system and appliances.
The following checklist covers the essential materials and safety prerequisites for a code-compliant installation:
- Essential Electrical Components: One NEMA TT-30R receptacle, one 30-amp single-pole circuit breaker (compatible with your specific panel brand), a weatherproof electrical box, and a weather-resistant (WR) cover plate.
- Cabling and Conduit: 10/2 gauge NM-B cable (if running indoors) or THHN wire inside rigid PVC conduit (if running outdoors). Ensure the wire gauge is 10 AWG; using 12 AWG or smaller poses a significant fire risk due to resistance-based heating.
- Safety and Testing Tools: A non-contact voltage tester, a digital multimeter capable of reading AC voltage, a wire stripper, a screwdriver set, and a conduit bender if performing an outdoor installation.
- Project Benchmarks: Expect a duration of two to four hours for a standard residential panel-to-exterior-wall installation. The budget should account for quality copper cabling, which remains the primary cost driver.
- Prerequisites: Basic knowledge of panel safety protocols, including the ability to identify live bus bars and the importance of ensuring the main breaker is off before entering the panel.
Step-by-Step Installation Workflow
Step 1: Panel De-energization and Site Preparation
Ensure the main power to the entire service panel is switched off. Even with the main breaker off, the service lugs coming from the utility meter remain live; never touch these lugs. Use your non-contact voltage tester to verify that no current is flowing through the panel bus bars. Plan your cable route from the panel to the chosen location, ensuring the receptacle is mounted securely to a stud or a weather-rated enclosure.
Step 2: Circuit Breaker Installation
Snap the 30-amp single-pole breaker into an empty slot in your service panel. If your panel is full, you may need to install a tandem breaker if the panel allows, though a dedicated slot is preferred for high-load appliances like RV air conditioners. Connect the black (hot) wire of your 10/2 cable to the terminal lug on the new breaker.

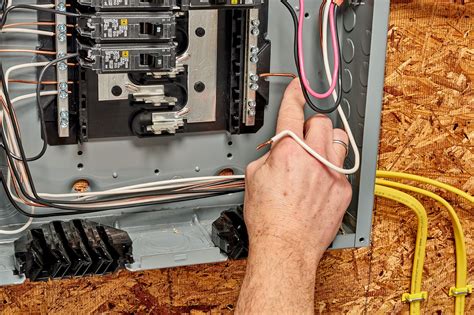

Step 3: Neutral and Ground Termination
The 10/2 cable contains a white wire, a black wire, and a bare copper ground. Connect the white wire to the neutral bus bar in the panel. Connect the bare copper ground wire to the equipment grounding bus bar. Ensure all connections are torqued according to the manufacturer's specifications printed on the breaker or panel label; loose connections are the leading cause of electrical arc fires.
Step 4: Terminating the NEMA TT-30R Receptacle
Route your cable to the mounting location and install the NEMA TT-30R receptacle. You will notice three terminals on the receptacle: a hot terminal (usually brass-colored), a neutral terminal (silver-colored), and a ground terminal (green). Attach the black wire to the brass terminal, the white wire to the silver terminal, and the bare copper/green wire to the green grounding screw. Double-check that no stray copper strands are touching adjacent terminals.
Warning: Never attempt to convert a standard 15/20-amp household outlet by simply replacing the faceplate with a 30-amp receptacle. The branch circuit wiring and the upstream breaker must also be upgraded to 30-amp capacity, or you will create a severe fire hazard.
Pro-Tip: Apply a light coating of electrical joint compound to the wire ends before inserting them into the terminals to prevent oxidation and ensure a low-resistance connection for high-amperage draw.

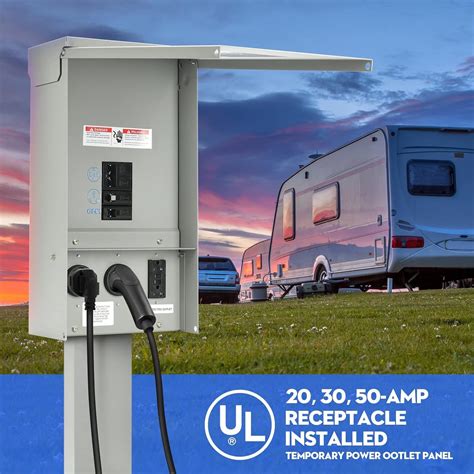

50 Amp RV Outlet Box & GFCI Outlet 20 Amp, Temporary Power Outlet Panel ...
Technical Specifications for 30-Amp RV Circuits
Proper installation relies on strict adherence to NEMA standards and NEC compliance. The following table highlights the critical differences and requirements for a safe 30-amp RV service.
| Parameter | 30-Amp RV (NEMA TT-30R) | Household 15/20A Outlet |
|---|---|---|
| Voltage | 120V AC Single Phase | 120V AC Single Phase |
| Required Wire Gauge | 10 AWG Copper | 12 or 14 AWG Copper |
| Breaker Size | 30 Amp | 15 or 20 Amp |
| Neutral Required | Yes | Yes |
| Ground Required | Yes | Yes |
| Max Continuous Load | 24 Amps (80% of 30A) | 12-16 Amps |
Common Field Failures and Troubleshooting
Electrical systems in outdoor environments are subject to thermal expansion and moisture, which can degrade connections over time.
- Issue: High Voltage Reading.
- Root Cause: The RV is accidentally connected to a 240-volt circuit, or the neutral wire has a high-resistance fault.
- Actionable Fix: Immediately disconnect the RV. Use a multimeter to check the voltage between the hot and neutral terminals on the outlet; it must be 120V, not 240V.
- Issue: Frequent Breaker Tripping Under Load.
- Root Cause: Exceeding the 30-amp limit or loose terminal connections creating excessive heat (voltage drop).
- Actionable Fix: Inspect all wire terminations at the receptacle and panel for signs of charring. Re-torque connections to the manufacturer’s specified inch-pounds.
- Issue: Melted Receptacle Face or Plug.
- Root Cause: Arcing caused by a loose grip in the receptacle or a corroded plug on the RV shore power cord.
- Actionable Fix: Replace both the wall receptacle and the RV plug end immediately. Do not attempt to sand or file corroded contacts, as the metal plating has been compromised.
Frequently Asked Questions
Can I use 12-gauge wire for a 30-amp RV outlet?
No, 12-gauge wire is rated for a maximum of 20 amps. Using it on a 30-amp circuit will cause the wire to overheat under the heavy load of an RV, potentially melting the insulation and starting an electrical fire.
Why does my RV require a special TT-30R outlet?
The TT-30R (Travel Trailer 30 Amp) is a specific NEMA configuration designed to handle 30 amps at 120 volts. It is keyed differently than standard residential outlets to prevent the accidental insertion of high-amperage plugs into lower-rated household circuits.
Is it possible to use a 30-amp to 50-amp adapter?
You can use a dogbone adapter to connect a 30-amp RV to a 50-amp pedestal, but you cannot adapt a 50-amp RV to a 30-amp outlet without severely limiting your power usage. If you try to draw 50 amps from a 30-amp source, the breaker will trip immediately.
Should I install a surge protector?
Installing a hardwired or plug-in EMS (Electrical Management System) is highly recommended. These units monitor for voltage spikes, reverse polarity, and low-voltage conditions that can destroy expensive RV electronics like converters and refrigerators.
Secure Your Mobile Power Supply
Proper installation of your 30-amp RV outlet ensures that your travel trailer receives the consistent power required for climate control and essential appliances. If you encounter any uncertainty during the installation process, consult a licensed master electrician to ensure your setup meets local building codes and safety standards.
