How To Inspect Rotors: The Complete Professional Brake Maintenance Guide

Inspecting brake rotors involves a rigorous visual and dimensional evaluation of friction surfaces to detect wear, scoring, lateral runout, and parallel thickness variation. By utilizing precision measurement tools like outside micrometers and dial indicator gauges, technicians can accurately determine whether brake discs meet manufacturer specifications for safe resurfacing or require immediate replacement.

Pre-Operation and Equipment Checklist

Performing an accurate brake rotor inspection requires professional-grade equipment, adherence to vehicle manufacturer service limits, and proper safety protocols. Skipping preparatory steps can lead to inaccurate measurements or safety hazards while working with hydraulic braking systems and heavy iron castings.

• Essential Equipment & Tools: High-intensity inspection light, heavy-duty jack and jack stands, lug wrench, brake cleaner aerosol, non-residue shop rags, outside micrometer calibrated in thousandths of an inch (or millimeters), dial indicator with a magnetic base, flat-bladed pry bar, and a torque wrench.
• Prerequisite Knowledge & Standards: Understanding of discard thickness limits stamped directly onto the rotor hat or hub, knowledge of safe vehicle lifting procedures, and familiarity with floating versus fixed brake caliper designs.
• Budget & Duration Benchmarks: Minimal equipment investment if you already own precision measuring tools; professional dial indicators and micrometers range from fifty to two hundred dollars. Expect the complete four-wheel inspection process to take between forty-five and ninety minutes.

Step-by-Step Brake Rotor Inspection Workflow

Step 1: Secure the Vehicle and Remove Wheels

1. Park the vehicle on a level, solid surface, engage the emergency brake, and loosen the lug nuts on the wheels you plan to inspect.
2. Raise the vehicle using a hydraulic floor jack at factory-approved pinch welds or frame lifting points, then securely support the chassis with rated jack stands.
3. Completely remove the lug nuts and pull the wheel and tire assemblies off the hub studs, placing them flat on the ground to expose the brake assembly.

Warning: Never rely solely on a hydraulic jack to support a vehicle while inspecting or servicing brakes. Always support the chassis with certified jack stands and block the remaining wheels to prevent rolling.

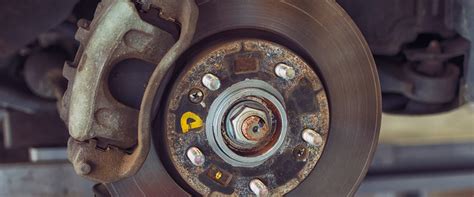

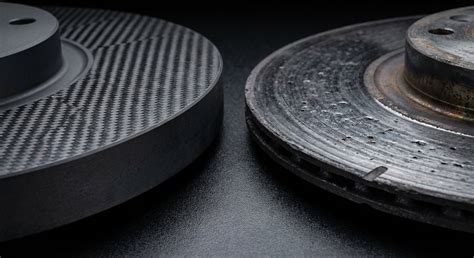

Step 2: Clean and Visually Inspect the Friction Surfaces

1. Spray the rotor friction surfaces liberally with a fast-evaporating automotive brake cleaner to wash away brake dust, road grime, and old oil films.
2. Wipe the rotor clean with a lint-free shop towel, ensuring both the inboard and outboard faces are completely clear of debris.
3. Visually examine the rotor for thermal cracking, deep scoring grooves, blue-tinted hot spots, heavy rust scaling, or edge lip formations. Minor surface rust from morning dew is normal, but deep radial grooves or hairline cracks radiating from the center vent require instant part replacement.

Step 3: Measure Rotor Thickness and Parallel Variation

1. Clean the anvil and spindle faces of your outside micrometer to ensure zero measurement error.
2. Measure the rotor thickness at four or more equidistant points around the circumference, staying approximately one-half inch inward from the outer edge to avoid the outer lip.
3. Compare your lowest measured reading against the minimum discard thickness specification cast into the rotor hub. If the rotor is at or below this numerical threshold, discard and replace it immediately.
4. Calculate parallel thickness variation by subtracting the minimum thickness measurement from the maximum thickness measurement; a variation exceeding 0.0005 inches (0.013 mm) causes severe steering wheel pulsation during braking.

Pro-Tip: Always cross-reference your micrometer readings with the specific vehicle service manual. Modern thin-wall rotors leave very little margin for machining, making replacement far more common than traditional resurfacing.

Step 4: Measure Lateral Runout with a Dial Indicator

1. Secure the rotor firmly against the wheel hub using at least three lug nuts threaded down with flat washers or spacer sleeves to mimic wheel torque pressure.
2. Mount a dial indicator with a magnetic base rigidly to a non-moving suspension component, positioning the plunger tip perpendicular to the rotor friction surface approximately one-half inch from the outer edge.
3. Preload the dial indicator needle by one-half revolution and zero the gauge face.
4. Slowly and smoothly rotate the brake rotor one full revolution by hand while observing the total needle deflection. Compare this total indicator reading (TIR) against the manufacturer maximum runout limit, which typically ranges between 0.0015 and 0.002 inches. Excessive runout indicates a warped rotor or an unseated hub mounting surface.

Brake Rotor Wear Specifications and Diagnostics Matrix

Common Brake Rotor Failures and Field Fixes

• Root Cause: Thermal shock and aggressive driving causing microscopic casting fractures.


  • Actional Fix: If hairline cracks extend across the friction face or connect cooling vanes to the outer edge, discard the rotors immediately and install high-carbon alloy replacements.
• Root Cause: Stuck sliding caliper pins or frozen piston assemblies causing uneven pad drag.


  • Actional Fix: Service, clean, and lubricate all caliper slide pins with high-temperature silicone brake grease. If boot seals are torn or pistons are pitted, rebuild or replace the entire brake caliper assembly before installing new rotors.
• Root Cause: Rust scaling or debris trapped between the new rotor hat and the wheel hub flange.


  • Actional Fix: Remove the rotor, clean the wheel hub face down to bare metal using a wire wheel or conditioning disc, and recheck lateral runout before final assembly.

Frequently Asked Questions

How do I know when my brake rotors need to be replaced?

Brake rotors typically require replacement when they wear down to the minimum thickness stamped on the hub, exhibit visible thermal cracks, or cause persistent brake pedal pulsation. Additionally, if the vehicle vibrates violently during highway-speed stops, your rotors are likely warped beyond acceptable runout limits and must be serviced.

Can I machine or turn my old brake rotors instead of replacing them?

You can machine rotors only if sufficient metal thickness remains above the minimum discard limit after the cutting process. Modern brake rotors are manufactured thinner to save weight and improve fuel economy, meaning many contemporary rotors lack the structural mass required for safe resurfacing.

What causes brake rotors to warp prematurely?

Premature rotor warping is most frequently caused by excessive thermal stress from riding the brakes down steep grades, uneven wheel lug nut torque applied with an impact wrench without a torque stick, or a stuck brake caliper holding a pad against the rotor surface continuously.

Is it necessary to replace brake pads whenever I replace my rotors?

Yes, you should always install new brake pads whenever you replace or machine brake rotors. Old pads conform to the wear patterns and surface imperfections of the previous rotors, which can glaze the new friction surface, reduce stopping power, and accelerate uneven wear.

How does lateral runout affect vehicle braking performance?

Lateral runout means the rotor wobbles side-to-side as it spins, acting like a cam that pushes the brake caliper pistons back into their bores. When you press the brake pedal, the pads must travel extra distance to contact the wobbling disc, causing a spongy pedal feel and rhythmic vibration.

Master your vehicle maintenance routine by scheduling regular brake inspections every ten thousand miles to catch wear before it compromises your stopping power.
