Effective grounding for an electric fence requires creating a low-resistance path for current to return to the energizer by driving at least three 6-8 foot galvanized steel rods into the earth at 10-foot intervals. Proper grounding ensures the circuit completes when an animal touches the wire, delivering a pulse that exceeds the animal's pain threshold despite soil resistivity variations.


Engineering the Ground Field: Preparation and Material Selection

The success of any electric fencing system—whether for high-tensile cattle enclosures or temporary poultry netting—hinges entirely on the grounding (earthing) system. Approximately 80% to 90% of all electric fence power failures are the direct result of an inadequate ground field. Before driving the first rod, you must understand that the soil acts as a conductor; its ability to carry current back to the energizer is dictated by moisture content, mineral density, and the surface area of the metal rods in contact with the earth.

To ensure a professional-grade installation that meets international safety and performance standards (such as those outlined by the IEC), you must source materials that resist corrosion and facilitate maximum conductivity.



Essential Equipment and Technical Requirements



  • Grounding Rods: Minimum of three galvanized steel rods, each 6 to 8 feet in length and at least 1/2 inch to 5/8 inch in diameter. Avoid copper-clad rods as they can cause galvanic corrosion when connected to galvanized fence wire.
  • Ground Clamps: Heavy-duty, high-pressure galvanized steel clamps specifically designed for 5/8-inch rods.
  • Lead-out Cable: Double-insulated 12.5-gauge high-voltage cable rated for at least 15,000V. Standard household 12-gauge copper wire is insufficient and will likely short-circuit or degrade under high-voltage pulses.
  • Driving Tools: A post driver or heavy sledgehammer.
  • Digital Volt Meter: A dedicated fence tester capable of measuring up to 10,000V to verify ground field efficiency.
  • Soil Amendments: Bentonite clay or specific salt-gel mixtures (only required for extremely arid or sandy environments).
  • Time Benchmark: Allow 2-4 hours for a standard 3-rod array installation.
  • Safety Standards: Maintain a minimum 30-foot distance from utility ground rods, telephone lines, and underground water pipes to prevent inductive interference.

Systematic Execution of the Grounding Field

Grounding is not a localized event but a field of influence. The following steps outline the procedure for establishing a "Ground Return" system, which is the standard for most agricultural applications where the animal completes the circuit between the hot wire and the soil.



Step 1: Site Assessment and Location Optimization

The grounding field should be located where the soil stays moist year-round. While the energizer is often placed in a shed or near a power source, the ground rods do not have to be immediately adjacent to the energizer. They should be placed in an area with high water table access, such as the north side of a building or a low-lying drainage area.

Warning: Never use the grounding system of a residential house or utility pole for your electric fence. This can cause high-voltage feedback into your home’s electrical system, potentially destroying appliances or creating a fire hazard.



Step 2: Driving the Ground Rods

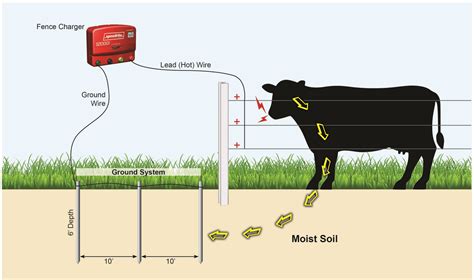

The "Rule of Three" is the industry standard for most 5-joule to 15-joule energizers. Drive three galvanized rods into the earth at least 10 feet apart. The distance between the rods is critical; if they are too close together, their "spheres of influence" overlap, which reduces the total surface area contact with the earth and increases resistance.



  1. Identify the first rod location and drive it vertically until only 2-4 inches remain above the surface.
  2. Measure 10 feet in a straight line (or along the fence line) and drive the second rod.
  3. Measure another 10 feet and drive the third rod.
  4. In rocky terrain where 8-foot depths are impossible, rods may be driven at an angle or buried in a deep trench, though vertical placement is preferred for consistent moisture contact.


Step 3: Interconnecting the Grounding Array

Once the rods are in place, they must be connected in a series (daisy-chain) back to the energizer's ground terminal. Use a continuous length of 12.5-gauge galvanized wire or double-insulated lead-out wire.



  1. Strip back approximately 2 inches of insulation from your lead-out wire.
  2. Secure the wire to the first rod using a galvanized clamp. Tighten it until the wire is crushed slightly against the rod to ensure a gas-tight connection.
  3. Run the wire to the second rod and then the third, securing each with its own clamp.
  4. Ensure the wire remains taut and protected from livestock trampling or mower blades.

Pro-Tip: If you are using a high-output energizer (over 15 Joules), add one additional 8-foot ground rod for every 5 Joules of output to ensure the system can handle the massive electron return required during a heavy fault.



Step 4: Connecting to the Energizer

The wire from your rod array connects directly to the green or "earth" terminal on your energizer.



  1. Route the lead-out wire through a protective conduit if it passes through walls or high-traffic areas.
  2. Clean the energizer terminal of any dust or oxidation.
  3. Secure the wire firmly to the terminal.
  4. Ensure the "hot" terminal (usually red) is connected to the fence line with separate insulation to avoid any "arcing" between the ground and hot terminals.


Step 5: The Short-Circuit Performance Test

After installation, you must verify that the ground system is working. This is done through a "Short Circuit" or "Ground Leakage" test.



  1. Turn the energizer off and "dead-short" the fence at least 300 feet away from the ground rods. You can do this by leaning several steel pipes or rods against the hot wire so that the fence voltage drops below 2,000V.
  2. Turn the energizer back on.
  3. Use a digital voltmeter to measure the voltage on the last ground rod in your array.
  4. If the meter reads more than 300V, your ground system is inadequate. You are losing power into the soil around your rods rather than forcing it through the fence circuit. You must add more rods or move them to deeper, wetter soil.

How to Choose the Best Electric Fence Charger for Cattle

How to Choose the Best Electric Fence Charger for Cattle

Technical Specifications for Grounding Arrays

The following table provides a guideline for grounding requirements based on soil type and energizer output.



Soil Matrix Type Conductivity Level Recommended Rod Count (per 5 Joules) Required Rod Depth
Moist Loam/Clay High 2 - 3 Rods 6 Feet
Silt / Wet Sand Moderate 3 - 5 Rods 8 Feet
Dry Sand / Gravel Low 6 - 10 Rods 10 Feet
Rocky / Shale Extremely Low Use Wire-Return System* N/A
Frozen Ground Negligible Use Wire-Return System* N/A

*Wire-Return System: A system where every other wire on the fence is a ground wire, connected directly back to the ground rods, so the animal touches both a hot and a ground wire simultaneously.

Common Site Failures and Field Fixes

Even a perfectly installed system can fail over time due to environmental shifts or mechanical degradation. Recognizing these failure points is essential for maintenance.

Scenario 1: Voltage drop during summer months despite a high-output energizer.



  • Root Cause: The soil has dried out to a depth below the grounding rods, increasing electrical resistance to the point where the circuit cannot be completed.
  • Actionable Fix: Increase the number of grounding rods or install a "wicking" system where a PVC pipe with small holes is buried near the rods to allow for periodic watering of the ground field. Alternatively, transition to a ground-wire return system for the duration of the dry season.

Scenario 2: Rapid corrosion at the clamp connection points.



  • Root Cause: Dissimilar metal corrosion (electrolysis). This typically happens when copper wire is clamped to galvanized steel rods.
  • Actionable Fix: Replace all copper components with galvanized steel. Ensure that every component from the energizer terminal to the tip of the rod is of the same metallic family to prevent the chemical reaction that creates a high-resistance oxide layer.

Scenario 3: Interference with household electronics or telephone lines.



  • Root Cause: "Inductive coupling" or ground leakage caused by the fence grounding system being located too close to utility grounds.
  • Actionable Fix: Relocate the entire grounding array at least 50 feet away from the utility company's ground rod. Ensure the lead-out wire is properly insulated and not running parallel to buried power lines.

Scenario 4: Energizer clicks but the fence shows zero voltage.



  • Root Cause: A complete break in the lead-out cable or a total short of the ground system to the hot wire at the energizer.
  • Actionable Fix: Inspect the lead-out cable for physical damage or rodent chews. Check the "hot" and "ground" terminals to ensure they are not bridged by cobwebs, moisture, or debris that could cause a localized arc.

Frequently Asked Questions



Can I use a copper rod instead of galvanized steel for grounding?

While copper is a superior conductor, it is generally discouraged for electric fencing because the fence wire itself is almost always galvanized steel. Connecting copper to zinc (galvanization) causes electrolysis, which leads to rapid corrosion and a failed connection within months. Always match your metals.



How far apart should my grounding rods be placed?

Grounding rods should be spaced at least 10 feet apart. This ensures that each rod has access to a fresh "pool" of earth to dissipate or collect electrons. Placing them too close together creates a bottleneck effect, significantly reducing the efficiency of the array.



Why does my fence lose power when the ground is frozen?

Ice is a poor conductor of electricity. When the ground freezes, the moisture in the soil turns into an insulator, preventing the animal’s feet from completing the circuit back to the rods. In cold climates, you must use a two-wire system where the animal touches both a hot and ground wire to receive a shock.



Do I need a lightning arrestor in my grounding system?

Yes, a lightning arrestor is highly recommended to protect your energizer. It should be installed between the fence and the energizer and must have its own separate grounding rod system located at least 65 feet away from the main energizer ground field to prevent a surge from jumping back into the unit.

Secure Your Perimeter with Expert Grounding

Building a robust grounding system is the most significant investment you can make in the reliability of your electric fence. By following these technical standards, you ensure maximum livestock control and long-term hardware durability.
