How To Grease Wheel Bearings Without Removing Them Using Bearing Buddies

Greasing wheel bearings without removing the hub is primarily achieved through the use of a bearing protector system, most commonly known as a Bearing Buddy, which utilizes a spring-loaded piston to maintain constant positive pressure on the grease cavity. This method prevents water intrusion and ensures that fresh lubricant is forced through the inner and outer bearings without the need for manual repacking, provided the hub assembly features the necessary grease zerk configurations.

Essential Preparation and Tool Requirements

Before attempting to lubricate your wheel bearings, it is critical to verify the type of spindle and hub assembly currently installed on your vehicle or trailer. This procedure is specifically designed for trailers equipped with grease-able spindles or aftermarket bearing protectors. Attempting to force grease into a sealed hub assembly without an exit point or a specialized pressure-cap system will result in the rupture of the rear grease seal, leading to catastrophic bearing failure or contaminated brake components.

• Essential Gear and Materials:
• High-temperature, water-resistant marine grade grease (NLGI No. 2 lithium complex).
• A high-quality lever-action grease gun.
• Rags or shop towels for containment of purged grease.
• A flat-head screwdriver or a specialized hub cap removal tool.
• A torque wrench (if checking lug nuts post-procedure).
• Safety jack stands and a hydraulic floor jack.
• Clean, lint-free cloth for wiping the zerk fitting.

Duration and Benchmarks:

• Estimated duration: 20 to 30 minutes for a standard dual-axle trailer.
• Safety standard: Never rely on a hydraulic jack alone; always utilize jack stands rated for the vehicle weight.
• Maintenance interval: Inspect for water contamination every 500 miles; perform a full grease flush every 2,000 to 3,000 miles or annually.

Procedural Workflow for In-Place Bearing Lubrication

Step 1: Secure the Vehicle and Access the Hub

Begin by parking the vehicle on a level, solid surface. Chock the wheels on the opposite side to prevent rolling. Use a hydraulic jack to lift the trailer until the tire clears the ground, then secure the frame on a jack stand. Remove the dust cap or the existing bearing protector cover. If using a standard rubber plug, pry it out carefully with a flat-head screwdriver.

Warning: Do not over-inflate the jack. Only lift enough to allow the wheel to rotate freely during the lubrication process to ensure even distribution of the grease.

Step 2: Clean and Inspect the Zerk Fitting

Using a clean shop towel, wipe away all old grease, dirt, and road grime from the zerk fitting located on the end of the spindle or the center of the Bearing Buddy. Any debris forced into the bearing assembly during the pumping process will act as an abrasive, significantly shortening the lifespan of the races and rollers. Inspect the zerk fitting to ensure the internal spring-loaded check ball moves freely. If the fitting is seized or rusted, it must be replaced before proceeding.

Step 3: Injecting Lubricant

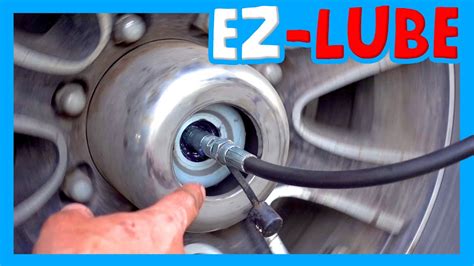

Attach your grease gun nozzle firmly onto the zerk fitting. If using a Bearing Buddy system, pump the grease gun slowly while simultaneously rotating the tire by hand. As you pump, you will notice the spring-loaded piston on the bearing protector move outward. This movement indicates that the hub cavity is filling with fresh grease and displacing the air. Continue pumping until you see the old, discolored grease beginning to emerge around the rear seal area or until the piston reaches its specified outward limit.

Pro-Tip: Monitor the color and texture of the emerging grease. If the grease appears milky or cloudy, this indicates moisture contamination, meaning the rear seal has likely failed and requires a full manual teardown and seal replacement.

Step 4: Final Inspection and Cap Reinstallation

Once the fresh grease appears at the seal or the piston reaches the fill line, stop pumping immediately. Over-pressurization is the most common cause of grease seal blowouts. Wipe away all excess lubricant from the exterior of the hub assembly. Replace the rubber cap or the protective cover on the Bearing Buddy. Lower the trailer from the jack stands, remove the wheel chocks, and perform a short test drive to ensure the hub does not overheat.

Technical Specifications for Bearing Lubricants and Components

Addressing Common Maintenance Failures and Field Remedies

• Failure: Grease is leaking from the rear of the hub immediately after lubrication.

• Root Cause: Over-pressurization during the greasing process has forced the inner grease seal to pop out of its seat.

• Actionable Fix: Stop lubricating immediately. If the seal is compromised, the hub must be removed, the seal replaced, and the bearing cleaned manually.

• Failure: Grease gun will not accept grease or locks onto the zerk fitting.

• Root Cause: The check ball in the zerk fitting is seized or the grease gun nozzle is damaged.

• Actionable Fix: Use a zerk cleaning tool to free the ball or replace the zerk fitting entirely; do not attempt to force high-pressure grease through a blocked fitting.

• Failure: The bearing makes a grinding or roaring noise during the post-maintenance test drive.

• Root Cause: The bearings have already sustained surface pitting or spalling prior to the lubrication attempt.

• Actionable Fix: Lubrication cannot repair physical metal degradation. The bearings and races must be inspected and replaced by a qualified technician.

Frequently Asked Questions

Is it safe to mix different types of grease in my wheel bearings?

Mixing grease types with different thickeners, such as lithium-based and calcium-based, can cause the base oils to separate or solidify into a thick paste. Always purge as much old grease as possible and stick to the same high-temperature, water-resistant lithium complex grease for consistent performance.

How do I know when I have added enough grease?

If using a Bearing Buddy, the indicator piston will move outward as the cavity fills; stop when it reaches the marked safety line. If using a standard spindle zerk, stop as soon as you see a small amount of clean grease beginning to push out from behind the rear seal or the hub cap.

Why do my wheel bearings get hot after I grease them?

Over-filling the hub creates hydraulic resistance and internal friction, which generates significant heat. If the bearings are excessively hot to the touch after a short drive, remove the excess grease and ensure the bearings have sufficient room for thermal expansion.

Can I use this method on vehicles with disc brakes?

You must be extremely cautious when greasing hub assemblies near disc brakes. Excess grease escaping from the rear seal can contaminate the brake rotors and pads, leading to a total loss of stopping power. Always use a shield to catch purged grease and clean the hub assembly thoroughly before operating the vehicle.

Optimize Your Trailer Reliability

Regular lubrication is the single most effective way to extend the service life of your wheel assemblies and prevent highway breakdowns. Maintain a consistent maintenance log and always carry a spare set of bearings and a high-quality grease gun for peace of mind on long hauls.
