Comprehensive Treatment Protocols To Eliminate Heel Spur Pain And Restore Mobility

Eliminating the symptoms of a heel spur requires a dual-track approach focusing on reducing localized inflammation of the plantar fascia and correcting biomechanical abnormalities through orthotic intervention. Success is measured by the reduction of "first-step" morning pain and the restoration of a 90-degree dorsiflexion range without acute discomfort.

Diagnostic Assessment and Conservative Management Prerequisites

Before initiating a treatment plan for a calcaneal spur, it is essential to distinguish between the spur itself—a calcium deposit forming on the underside of the heel bone—and plantar fasciitis, which is the inflammation of the connective tissue. While the spur is visible on an X-ray, the pain typically stems from the soft tissue irritation. Effective management requires a combination of mechanical support, inflammatory control, and kinetic chain rehabilitation.

Essential Gear and Clinical Benchmarks:

• Supportive Footwear: Shoes must possess a rigid heel counter, limited midfoot torsion, and a stack height that provides a slight heel-to-toe drop (8mm to 12mm).
• Orthotic Inserts: Medical-grade, semi-rigid longitudinal arch supports or custom-molded functional orthotics.
• Therapeutic Tools: High-density foam rollers, lacrosse balls for myofascial release, and cryotherapy wraps.
• Clinical Measurements: Baseline pain scale (1-10), weight-bearing X-ray (lateral view) to confirm spur size/location, and Windlass Test results for fascia integrity.
• Timeline: Expect 4 to 8 weeks for significant symptomatic relief; 6 to 12 months for full tissue remodeling.

Clinical Step-by-Step Protocol for Resolving Heel Spur Symptoms

Step 1: Acute Phase Inflammatory Control

The primary goal in the first 72 hours of a flare-up is to arrest the inflammatory cycle. This prevents the formation of micro-tears in the fascia where the spur attaches.

1. Apply cryotherapy using a "frozen bottle roll" technique: Place a frozen water bottle under the arch and roll with moderate pressure for 15 minutes, three times daily.
2. Implement a temporary activity modification protocol, eliminating high-impact loading (running, jumping) and replacing it with non-weight-bearing cardiovascular exercise like swimming or cycling.
3. Utilize non-steroidal anti-inflammatory drugs (NSAIDs) such as ibuprofen or naproxen as directed by a physician to reduce systemic inflammation.

Warning: Avoid walking barefoot on hard surfaces (hardwood, tile, or concrete) during this phase. Even a single step without support can re-traumatize the inflamed attachment point of the spur.

Step 2: Biomechanical Realignment and Loading Off-Load

Once acute pain subsides, the focus shifts to removing the mechanical stress that caused the spur to form. Heel spurs are a response to chronic tension; if you do not remove the tension, the pain will return.

1. Evaluate current footwear: Replace any shoes where the midsole is compressed or the outer heel shows significant uneven wear.
2. Incorporate heel seats or silicone heel cups. these devices provide a "donut" effect, redirecting pressure away from the calcaneal tuberosity (the spur site) and toward the surrounding soft tissue.
3. Utilize night splints or Strassburg socks. These maintain the foot in a state of constant dorsiflexion during sleep, preventing the fascia and calf muscles from contracting overnight.

Pro-Tip: When selecting over-the-counter orthotics, ensure the arch support is firm. If you can easily collapse the arch of the insert with your thumb, it will not provide sufficient structural support to off-load a heel spur.

Step 3: Kinetic Chain Flexibility and Strengthening

Heel spurs are frequently the result of "equinus," or tightness in the calf muscles (Gastrocnemius and Soleus), which pulls on the Achilles tendon and subsequently the plantar fascia.

1. Wall Calf Stretch: Stand with hands against a wall, one foot back with the knee straight and heel down. Hold for 30 seconds, repeating 3 times per side.
2. Soleus Stretch: Similar to the wall stretch, but slightly bend the back knee to isolate the deeper calf muscle.
3. Great Toe Extension: While seated, cross your foot over your knee and gently pull your toes back toward your shin until you feel a stretch in the arch.
4. Intrinsic Muscle Strengthening: Perform "towel curls" by using your toes to pull a hand towel toward you across a smooth floor to strengthen the small muscles that support the arch.

Step 4: Advanced Clinical Interventions

If conservative measures do not yield a 50% reduction in pain within six weeks, secondary clinical treatments are required to stimulate a healing response in the chronic tissue.

1. Extracorporeal Shockwave Therapy (ESWT): High-energy sound waves are directed at the spur site to create micro-trauma, which triggers the body’s natural healing response and increases blood flow to the poorly vascularized fascia.
2. Corticosteroid Injections: A potent anti-inflammatory is injected near (but not directly into) the fascia to provide rapid relief. Note that excessive injections can lead to fat pad atrophy or fascial rupture.
3. Platelet-Rich Plasma (PRP) Therapy: Autologous blood is centrifuged and injected into the site to provide growth factors that accelerate tissue repair.

Step 5: Surgical Resection and Fasciotomy

Surgery is considered a last resort, reserved for patients who have failed 6 to 12 months of aggressive conservative therapy.

1. Endoscopic Plantar Fasciotomy: A surgeon makes a small incision to release a portion of the plantar fascia ligament, relieving the tension that pulls on the bone.
2. Spur Removal: While the spur itself is rarely the sole cause of pain, a surgeon may elect to remove large or particularly sharp protrusions during the fasciotomy if they are interfering with joint mechanics.

Comparison of Heel Spur Treatment Modalities

Common Treatment Failures and Remedial Actions

While most heel spur cases resolve with the steps above, certain factors can stall progress. Identifying these failures early is critical for long-term recovery.

• Failure Scenario: Pain persists despite using high-end orthotics.




  • Root Cause: The patient may have "Morton’s Extension" or an undiagnosed structural limb length discrepancy that the standard orthotic is not addressing.
  • Actionable Fix: Seek a formal gait analysis from a podiatrist using pressure mapping technology (such as Pedobarography) to identify specific high-pressure zones that require custom off-loading.

• Failure Scenario: Morning pain returns after a period of relief.




  • Root Cause: Premature return to high-impact activity or "dormant stretching" habits. The fascia has not fully remodeled and remains brittle.
  • Actionable Fix: Re-implement the night splint for an additional 30 days and transition back to impact sports using a "10% rule"—increasing weekly volume by no more than 10% to allow for collagen synthesis.

• Failure Scenario: Injection provides relief for only one week.




  • Root Cause: The injection addressed the inflammation but the underlying mechanical cause (e.g., tight calves or flat feet) was never corrected.
  • Actionable Fix: Switch focus immediately to eccentric calf strengthening (Heel Drops) and ensure 100% compliance with supportive footwear, even inside the house.

• Failure Scenario: Pain is localized to the sides of the heel rather than the bottom.




  • Root Cause: Possible Calcaneal Stress Fracture or Baxter’s Nerve Entrapment rather than a simple heel spur.
  • Actionable Fix: Request an MRI to rule out bone marrow edema or nerve compression, as these conditions require immobilization (walking boot) rather than stretching.

Frequently Asked Questions

Can you dissolve a heel spur naturally with apple cider vinegar or essential oils?

There is no clinical evidence that topical applications can dissolve a calcium deposit located deep within the soft tissue of the heel. Treatment must focus on the biomechanical tension and inflammation surrounding the bone rather than attempting to chemically melt the calcium.

Is walking barefoot good for strengthening the feet if I have a spur?

While barefoot walking can strengthen intrinsic muscles in healthy feet, it is contraindicated for those with active heel spur pain. The lack of an elevated heel and arch support increases the tension on the plantar fascia, which can exacerbate the injury and enlarge the spur over time.

How do I know if my pain is a heel spur or just a bruise?

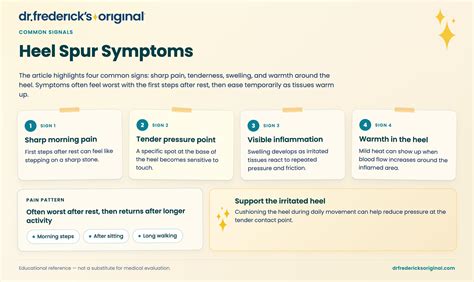

A bone bruise (calcaneal contusion) usually results from a specific impact event and feels like a dull ache across the entire heel. A heel spur typically presents as a sharp, stabbing sensation specifically at the front-inner base of the heel, which is most intense during the first few steps after waking up.

Does losing weight help get rid of heel spur pain?

Weight reduction significantly reduces the vertical load placed on the calcaneus during the gait cycle. For every pound of body weight lost, the pressure on the heel during running is reduced by approximately four-fold, making weight management a highly effective long-term strategy for preventing recurrence.

Can I continue to run with a heel spur?

Running with an active flare-up is generally discouraged as it prevents the micro-tears in the fascia from healing. If you must run, utilize kinesiology tape (Low-Dye taping technique), wear maximalist cushioned shoes, and limit your route to soft surfaces like synthetic tracks or level trails.

Professional Podiatric Consultation and Recovery

Persistent heel pain requires a professional evaluation to ensure your treatment plan aligns with your specific foot structure and gait pattern. Schedule a comprehensive biomechanical assessment today to transition from temporary pain relief to a permanent, functional recovery.
