How To Gap Iridium Spark Plugs: The Expert Precision Guide

Gapping iridium spark plugs requires extreme caution because the fine-wire iridium center electrode is exceptionally brittle and can snap under minimal pressure. You must measure the gap using a wire-style gauge rather than a blade-style tool to prevent damage to the precious metal, ensuring you follow the manufacturer’s exact clearance specifications for optimal ignition performance.

Essential Preparation and Technical Prerequisites

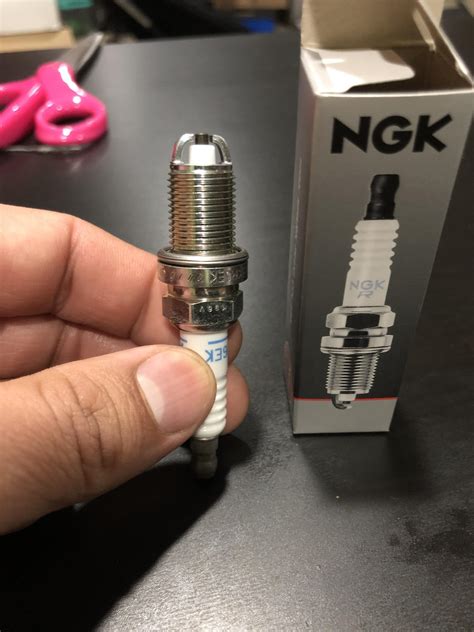

Before beginning the gapping process, it is critical to recognize that iridium plugs are often pre-gapped at the factory. Unlike copper or nickel plugs, the electrode material is laser-welded and laser-tipped, meaning mechanical stress often ruins the component before it is even installed.

• Essential Gear and Materials:
• Wire-style spark plug gap gauge (round wire type is non-negotiable).
• Needle-nose pliers or a dedicated spark plug gapping tool with a soft-touch lever.
• A flat, clean work surface.
• A flashlight or bright workbench lighting to inspect the fine-wire tip.
• Manufacturer service manual or official technical data sheet for your specific engine model.
• High-quality microfiber cloth to keep the tip free of debris.

Preparation time for an experienced mechanic is approximately 15 minutes for a set of four plugs. Budget for potential replacement plugs if you lack the manual dexterity required, as a damaged iridium tip cannot be repaired or re-welded in a home shop environment.

The Technical Execution Workflow for Precision Gapping

Step 1: Verification of Factory Gap

Before attempting to adjust anything, measure the existing gap. Slide the appropriately sized wire gauge from your tool kit between the center electrode and the ground strap. The gauge should slide through with light friction. Do not force a thick gauge between the electrodes. If the measurement matches the vehicle’s service manual, stop immediately; no further action is required. If the plug arrives within an acceptable tolerance range, leave it alone.

Step 2: Measuring Without Electrode Contact

To get an accurate reading, you must hold the wire gauge straight across the gap. Ensure the gauge is perfectly parallel to the ground strap and the center electrode. If the plug has a tapered ground strap, measure from the center of the electrode to the closest point of the ground strap.

Warning: Never use a coin-type gap gauge. The wedge-shaped edge of a coin tool will exert uneven pressure on the iridium center electrode, leading to micro-fractures in the ceramic insulator or the complete snapping of the iridium wire tip.

Step 3: Adjusting the Ground Strap Only

If the gap must be adjusted, you must only move the ground strap. Use a dedicated gapping tool that leverages the metal body of the plug rather than the tip. Place the gapping tool’s hook on the ground strap and gently push or pull to move the strap toward or away from the center electrode. Make microscopic adjustments. Even a fraction of a millimeter is significant in high-compression ignition systems.

Pro-Tip: If you need to decrease the gap, tap the ground strap very lightly against a hard, clean surface. This provides better control than trying to force the strap down with pliers, which often results in over-adjustment.

Step 4: Final Inspection and Verification

Once you have adjusted the strap, re-measure the gap using the wire gauge. Re-verify the gap three times to ensure the ground strap has not experienced spring-back. Inspect the center electrode under bright light to ensure no bending, shearing, or ceramic chipping occurred during the process. If you notice any irregularities, the plug must be discarded.

Technical Specifications and Material Performance Parameters

The following table outlines the mechanical thresholds that differentiate iridium plugs from traditional materials. Understanding these limits is essential for long-term engine reliability.

Common Procedural Failures and Field Remedies

• Root Cause: Over-bending the ground strap to achieve the gap.

• Actionable Fix: If you accidentally over-close the gap, do not attempt to pry the strap open using the center electrode as a fulcrum. Use a precision flat-head screwdriver to gently pry the strap upward from the base where it attaches to the threaded shell.

• Root Cause: Contamination of the iridium tip during handling.

• Actionable Fix: Skin oils can create hot spots on the fine-wire electrode. If you touch the tip, clean it gently with an electrical contact cleaner and allow it to air dry fully before installation.

• Root Cause: Ignoring the "Pre-Gapped" label on packaging.

• Actionable Fix: If the gap is within 0.002 inches of the target, leave it. Over-handling is the leading cause of premature iridium failure.

Frequently Asked Questions

Is it safe to gap iridium spark plugs if the manufacturer says they are pre-gapped?

Generally, no. Manufacturers design these plugs to be ready for installation out of the box. If you find the gap is incorrect, it is often safer to return the plug for a replacement rather than attempting to force the ground strap to a specific clearance.

What happens if I accidentally touch the iridium tip with a gap tool?

The iridium tip is extremely brittle and sensitive to side-loading. Even a minor scratch or contact can induce stress fractures that will lead to a total breakdown of the spark plug while the engine is under load, potentially causing misfires.

Can I use a standard blade-style gap tool for iridium plugs?

You should avoid blade-style tools because they can scrape the precious metal coating off the center electrode. Always use a wire-gauge tool to ensure that you are only measuring the space between the surfaces without applying leverage to the electrode itself.

How precise do I need to be when gapping?

Spark plug gaps are typically specified with a tolerance of plus or minus 0.002 inches. Given that iridium electrodes are thinner than a human hair in some cases, your movements must be slow, measured, and incremental to stay within these critical engineering tolerances.
