How To Frame Garage Doors: The Complete Structural Installation Guide

Framing a garage door requires absolute dimensional precision, strict adherence to local building codes, and robust load-bearing engineering. This comprehensive guide covers every phase of rough opening construction, from calculating header spans to installing structural jambs and securing moisture barriers for long-term operational integrity.

Pre-Operation & Equipment Checklist

Successfully framing a garage door opening demands careful planning, structural safety compliance, and proper material selection. Whether you are cutting into an existing load-bearing wall or framing a new construction opening, preparation dictates the structural rigidity of your installation.

• Essential Gear, Tools, and Materials:


  • Framing hammer, pneumatic framing nailer (with 3-inch 16d nails), and 3-inch structural screws.
  • 2x4 and 2x6 dimensional lumber (Kiln-Dried Heat-Treated / KD-HT lumber to prevent warping).
  • Engineered lumber (LVL - Laminated Veneer Lumber or Glu-lam beams) sized according to local snow load and span tables.
  • 4-foot and 6-foot spirit levels, heavy-duty chalk line, tape measure, and speed square.
  • Self-adhering flashing membrane (butyl or rubberized asphalt) and compressible sill gasket.
  • Personal Protective Equipment: safety glasses, work gloves, and steel-toe boots.
• Mandatory Prerequisite Knowledge & Standards:


  • Verification of local International Residential Code (IRC) wind load and snow load requirements.
  • Identification of load-bearing wall status and temporary shoring/wall-bracing protocols prior to cutting studs.
  • Standard rough opening tolerances: typically 3 inches wider than the finished door width and 1.5 inches taller than the finished door height (accounting for jambs, spring mounting pads, and finish trim).
• Project Budget & Duration Benchmarks:


  • Estimated Time: 6 to 10 hours for a single-car garage opening; 10 to 14 hours for a double-car opening.
  • Estimated Material Cost: 150 to 500 USD depending on header sizing requirements and whether structural modifications to load-bearing walls are necessary.

Step-by-Step Rough Opening Construction

Step 1: Layout and Opening Dimensions

1. Establish the exact center point of the garage door opening on the exterior wall plate and transfer the layout down to the subfloor or concrete slab using a plumb bob.
2. Measure outward from the centerline in both directions. For a standard 16-foot wide double garage door, mark 8 feet 1.5 inches to the left and right (allowing for a standard 3-inch overall rough opening tolerance).
3. Snap parallel chalk lines vertically on the wall studs and horizontally along the sole plate to outline the outer perimeter of the rough framing.

Warning: Never cut load-bearing wall studs without first installing a temporary ceiling support wall (dead-man wall) at least 3 feet inside the room to bear the weight of roof trusses or ceiling joists.

Step 2: Demolition and Temporary Support

1. Construct a temporary support wall parallel to the wall being modified, utilizing 2x4 studs spaced every 16 inches and topped with a double top plate wedged firmly against the ceiling joists.
2. Carefully remove the drywall, siding, and existing wall studs within the chalk-lined rough opening boundary.
3. Cut the sole plate flush with the newly established vertical king stud locations, ensuring a clean, level surface at the concrete slab or subfloor junction.

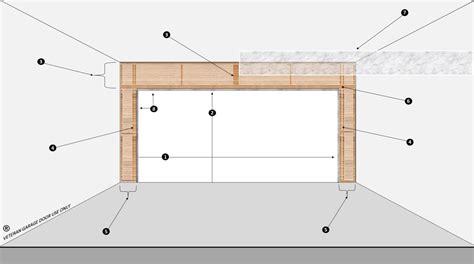

Step 3: Installing King and Jack Studs

1. Cut your king studs to run continuously from the bottom sole plate (or anchor-bolted sill plate) up to the double top plate of the wall. Install the outer left and right king studs, securing them with three 16d nails every 16 inches.
2. Measure and cut the inner jack studs (also known as trimmers), which will directly support the structural header. The height of the jack studs must equal the desired rough opening height plus the thickness of the finished floor material.
3. Plumb each jack stud using a 4-foot spirit level and nail them securely to the adjacent king studs using a staggered pattern of 16d nails spaced every 8 to 12 inches.

Pro-Tip: Apply a continuous bead of construction adhesive between the king and jack studs before nailing them together to eliminate future shifting, squeaking, or structural micro-movements caused by garage door opener vibrations.

Step 4: Assembling and Mounting the Header

1. Construct the structural header based on engineering load tables for your specific span. For single-car openings (9 feet or less), a double 2x10 or 2x12 header with a 1/2-inch plywood spacer is typically required. For double-car openings (up to 18 feet), engineered LVL beams are mandatory.
2. Lift the assembled header into place, resting the ends squarely on top of the newly installed jack studs.
3. Square the entire assembly, ensuring the header is perfectly level across its entire span. Secure the header by toenailing it into the king studs and driving 16d face nails down through the wall's double top plate directly into the top of the header.

Step 5: Cripple Studs and Exterior Flashing

1. Measure, cut, and install short vertical framing members, known as cripple studs, spaced 16 inches on center between the top of the header and the double top plate of the wall.
2. Install a continuous strip of self-adhering flashing tape along the exterior face of the jack studs and header, overlapping layers shingle-style to direct moisture away from the rough opening.
3. Check all diagonal measurements from top-left to bottom-right and top-right to bottom-left to ensure the rough opening is perfectly square within a 1/16-inch tolerance.

Structural Framing Specifications and Material Comparison

Choosing the correct lumber dimensions and structural components ensures that your garage door frame can handle the continuous dynamic loads of a heavy motorized door, spring torsion tension, and high wind pressures.

Common Site Failures and Field Fixes

Even experienced builders can encounter structural challenges when framing garage doors. Recognizing these issues early prevents costly tearing out of finished work.

• Root Cause: The rough opening is out of square or out of plumb, causing the garage door tracks to bind during operation.


  • Actionable Fix: Remove fasteners from the jack studs, insert cedar shims between the king and jack studs until a 4-foot level indicates true vertical alignment, and re-secure with structural screws.
• Root Cause: Sagging header due to undersized lumber or failure to account for roof load calculations.


  • Actionable Fix: Install temporary shoring, remove the undersized header, and replace it with an engineered LVL beam or properly sized glulam matching the exact load span requirements.
• Root Cause: Water intrusion and wood rot at the base of the jack and king studs due to direct concrete contact.


  • Actionable Fix: Cut out the rotted lower section of the wood studs, install a galvanized metal standoff base, and mount treated lumber anchored securely to the concrete slab over a closed-cell foam sill gasket.
• Root Cause: Fasteners splitting the ends of dimensional lumber during framing assembly.


  • Actionable Fix: Pre-drill all nail and screw holes within 2 inches of lumber ends using a high-speed twist bit, and switch to blunt-tip pneumatic framing nails to minimize wood splitting.

Frequently Asked Questions

What is the standard rough opening size for a standard garage door?

The rough opening should always be constructed exactly the same width as the finished door (e.g., a 16-foot door requires a 16-foot rough opening) and 1.5 inches taller than the finished door height to accommodate bottom weatherstripping and track mounting hardware. Always verify the specific manufacturer specifications provided with your purchased door model before building.

Do I need a permit to frame a garage door opening in an existing wall?

Yes, creating or expanding a garage door opening involves modifying load-bearing walls and altering structural load paths. Local building departments require structural drawings, a permit, and subsequent framing inspections to ensure compliance with wind-shear and dead-load safety standards.

What is the difference between a king stud and a jack stud?

A king stud runs continuously from the bottom plate to the top plate of the wall and provides overall wall stability. A jack stud (or trimmer) is a shorter stud that fits underneath the ends of the header, acting as the direct vertical support that transfers the heavy load of the header down to the foundation.

Can I use standard 2x4 lumber for a double-car garage header?

Standard 2x4 lumber is completely inadequate for double-car garage doors spanning 16 feet or wider due to excessive deflection risks under roof loads. Double-car openings require engineered lumber such as Laminated Veneer Lumber (LVL) or steel-reinforced headers sized specifically by a structural engineer or lumberyard software.

How do I anchor the bottom of the frame to a concrete slab?

The base plates and bottom of the king/jack studs must be anchored to the concrete foundation using approved wedge anchors or concrete screw bolts spaced no more than 32 inches apart. Additionally, always place a layer of closed-cell sill sealer beneath all wood touching concrete to act as an impermeable moisture and termite barrier.

Secure Your Structural Integrity Today

Mastering the precise techniques of framing garage doors guarantees a plumb, square, and structurally sound opening that ensures smooth, trouble-free operation for decades. Equip yourself with certified engineered lumber, adhere strictly to local load-span codes, and execute every step with meticulous dimensional accuracy.
