How To Fix A Outlet That Does Not Work: A Comprehensive Diagnostic And Repair Guide

Troubleshooting a dead electrical outlet requires a systematic approach beginning at the circuit breaker and extending to internal terminal wiring. By safely isolating voltage, verifying ground continuity, and inspecting back-stab or side-screw connections, homeowners can permanently restore power while adhering strictly to National Electrical Code (NEC) standards.

Pre-Operation & Equipment Checklist

Fixing a non-working receptacle safely requires specialized electrical tools and an understanding of residential alternating current (AC) circuits. Before removing any cover plates, assemble the correct instruments to verify zero energy state conditions and execute precise mechanical adjustments.

• Essential Gear, Tools, and Materials: Non-contact voltage tester (NCVT), digital multimeter rated CAT III or CAT IV, insulated 1000V screwdrivers (Phillips and flathead), wire strippers, needle-nose pliers, flashlight or headlamp, replacement 15-amp or 20-amp tamper-resistant duplex receptacle, and electrical tape.
• Mandatory Prerequisite Knowledge and Standards: Familiarity with standard 120V split-phase residential wiring, understanding of hot (black/red), neutral (white), and ground (bare copper/green) wire functions, and compliance with local municipal electrical codes and NEC Article 406.
• Estimated Budget and Duration Benchmarks: Financial investment ranges from ten to thirty dollars for replacement hardware and basic tools. Time commitment spans thirty to forty-five minutes per outlet location.

Step-by-Step Diagnostic and Replacement Workflow

Step 1: Initial Power Isolation and Verification

Locate the main service panel or sub-panel and switch the corresponding circuit breaker to the OFF position. Walk to the non-working outlet and insert a known working lamp or plug-in circuit analyzer to confirm power has been successfully cut. Remove the wallplate retaining screw using a screwdriver, and carefully peel away the plastic cover plate to expose the face of the duplex receptacle.

Warning: Never rely solely on the breaker panel label directory, as these are frequently mislabeled. Always verify de-energization at the box itself.

Step 2: Double-Checking Voltage States at the Box

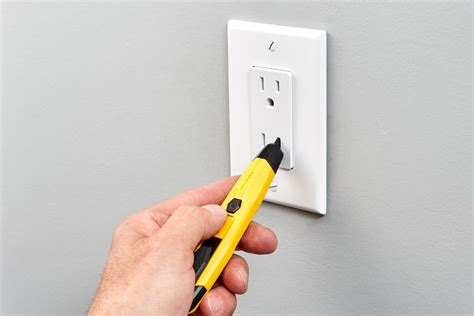

Hold a calibrated non-contact voltage tester directly against the face of the outlet slots and around the perimeter of the mounting yoke. For absolute safety, insert the black probe of a digital multimeter into the neutral slot (larger opening) and the red probe into the hot slot (smaller opening), ensuring the meter reads zero volts alternating current (VAC). If the NCVT or multimeter lights up or registers voltage, return to the breaker panel immediately and identify the correct breaker.

Step 3: Unseating and Inspecting the Receptacle Body

Loosen the top and bottom long mounting screws that secure the metal receptacle yoke to the electrical box ears. Gently pull the duplex outlet straight out of the wall box, taking care not to stress or bend the attached copper conductors. Inspect the plastic body for discoloration, charring, melted plastic, or carbon scoring, which indicate a severe arc fault or thermal overload requiring immediate replacement.

Step 4: Evaluating Terminal Connections and Wire Integrity

Examine how the supply wires are connected to the sides of the device. Many older installations utilize back-stab holes on the rear of the outlet rather than side terminal screws, a common point of mechanical failure due to spring-clip degradation. Inspect the bare copper wire ends for oxidation, nicks from wire strippers, or loose binding screws.

Pro-Tip: Wrap clockwise loops of solid copper wire three-quarters of the way around the side terminal screws before tightening firmly to ensure superior mechanical clamping force compared to push-in back-stabs.

Step 5: Installing the New Receptacle and Restoring Power

Disconnect the hot, neutral, and ground wires from the old outlet and transfer them to the identical terminal positions on the new duplex receptacle (black wires to brass screws, white wires to silver screws, and ground to the green hex head). Fold the wires accordion-style into the junction box, secure the yoke level with the wall surface, snap or screw on the cover plate, and turn the circuit breaker back ON to test continuity.

Receptacle Performance and Specification Parameters

Common Site Failures and Field Fixes

• Root Cause: A tripped Ground Fault Circuit Interrupter (GFCI) upstream on the same branch circuit.


  • Actionable Fix: Locate the parent GFCI receptacle—often situated in a bathroom, garage, or kitchen—and press the reset button firmly until an audible click is heard.
• Root Cause: Loose terminal screw connection causing an open circuit along a multi-outlet daisy chain.


  • Actionable Fix: Turn off power, pull the preceding working outlet in the circuit loop, and secure any loose side-terminal wire connections that feed downstream power.
• Root Cause: Broken or cracked internal contact fingers within an aged receptacle face.


  • Actionable Fix: Replace the entire duplex assembly with a commercial-grade or tamper-resistant residential receptacle.
• Root Cause: Loose wire nut connection inside the junction box severing continuity.


  • Actionable Fix: Strip back damaged insulation, twist the bundle of conductors cleanly together with lineman's pliers, and secure them inside a properly sized fresh wire connector.

Frequently Asked Questions

Why do some outlets stop working while others on the same wall still work?

This typically happens because outlets are wired in a continuous loop or parallel circuit, where power flows from one device to the next. If a wire pops loose from a terminal screw or a push-in back-stab connection fails at the first outlet, it breaks the electrical pathway for all downstream receptacles.

How do I know if an outlet failure is caused by a tripped circuit breaker?

If multiple outlets, lights, or appliances across an entire room or zone go dead simultaneously, the issue originates at the main service panel. Inspect your breaker box for a handle resting in the middle trip position, push it firmly to the OFF position, and then switch it back to the ON position.

Can I replace a standard two-prong outlet with a three-prong grounded outlet?

You can only replace a two-prong outlet with a three-prong grounded version if an actual equipment grounding conductor is present inside the electrical box or if the box is fed by rigid metal conduit acting as an approved ground path. Installing a three-prong outlet without a ground requires either running a new cable or protecting the circuit with a downstream GFCI receptacle labeled "No Equipment Ground."

Is it safe to use push-in wire connectors on the back of a new outlet?

While building codes permit back-stabbing for 14 AWG solid copper wire, electricians generally discourage it because the internal spring clips lose tension over high current loads and time. Wrapping solid copper wire securely around the side terminal binding screws provides a far more reliable, permanent connection.

When should I call a licensed electrician instead of fixing it myself?

Call a qualified professional immediately if you detect a burning smell, notice scorched wallplates, find aluminum branch wiring, or observe persistent breaker tripping immediately after resetting. These symptoms point to hidden structural wiring faults, overloaded circuits, or potential electrical fire hazards.
