How To Fix An Electric Scooter: A Complete DIY Troubleshooting And Repair Guide

Maintaining and repairing an electric scooter requires systematic diagnostic workflows, specialized insulated tools, and precise multimeter testing to address common electrical and mechanical faults safely. By isolating issues ranging from voltage drop in lithium-ion battery packs to Hall sensor failures in brushless hub motors, riders can restore optimal torque, range, and structural integrity.

Diagnostic Preparation and Safety Equipment Checklist

Approaching electric scooter maintenance requires a disciplined methodology to prevent short circuits, thermal runaway, or structural compromise. Personal protective equipment and precise testing instruments are mandatory before opening the deck housing or servicing the powertrain.

• Essential Gear, Tools, and Materials: Digital Multimeter (DMM) with alligator clips, insulated hex key (Allen wrench) set ranging from 2mm to 6mm, precision Phillips and flathead screwdrivers, soldering iron with heat-shrink tubing, isopropyl alcohol (99 percent purity), threadlocker (blue Loctite 242), and safety glasses.
• Mandatory Safety and Operational Standards: Power off the scooter completely, disconnect the charging cable, and wear nitrile gloves to avoid chemical exposure from compromised lithium-ion cells or old thermal paste. Discharge static electricity by touching a grounded metal surface before handling internal printed circuit boards (PCBs).
• Time and Budget Benchmarks: Minor adjustments (brake cable tension, tire changes) require 30 to 45 minutes with minimal parts cost. Deep electrical diagnostics (controller replacement, BMS resets) demand 1 to 3 hours and variable replacement component budgets.

Step-by-Step Electric Scooter Troubleshooting and Repair Execution

Step 1: Power Diagnostic and Battery Health Verification

Begin troubleshooting by assessing the power delivery system when the scooter fails to turn on or exhibits severely reduced range. Power on the digital display and check for error codes, which typically correspond to specific controller or throttle faults in manufacturer documentation. Open the scooter's deck housing by removing the perimeter screws using the appropriate hex key, taking care not to pinch internal wiring harnesses.

Set your digital multimeter to direct current (DC) voltage mode, ensuring the range exceeds the maximum pack voltage (e.g., 42V for a 36V system or 54.6V for a 48V system). Measure the main discharge leads coming directly out of the Battery Management System (BMS). If the multimeter reads zero volts despite a fully plugged-in charger, the BMS may have tripped due to over-discharge, or a fusible link within the nickel strip matrix has blown.

Warning: Never puncture, crush, or probe individual lithium-ion pouch cells with sharp metallic instruments. A short circuit in a high-capacity PEV battery can instantly generate extreme heat and toxic smoke.

Step 2: Throttle, Controller, and Wiring Harness Inspection

Inspect all external and internal wiring junctions for signs of thermal stress, water ingress, or loose connections. Trace the throttle cable from the handlebars down through the steering column to the main electronic speed controller housed in the belly pan. Check the waterproof multi-pin connectors (often Julet or SM plugs) to ensure pins are not bent, oxidized, or loose.

Test the throttle potentiometer or Hall effect sensor by back-probing the signal wire with the multimeter while the scooter is powered on and safely propped on a stand with the drive wheel elevated. The output signal should scale smoothly from approximately 0.8 volts at rest to 4.2 volts at wide-open throttle. If the voltage remains static or jumps erratically, replace the throttle assembly.

Pro-Tip: Apply a small amount of dielectric grease to all electrical connector pins before reassembly to permanently prevent moisture corrosion and intermittent connection drops.

Step 3: Brushless Hub Motor and Phase Wire Maintenance

If the scooter powers on, the throttle responds, but the motor stutters, hums, or refuses to spin, the issue usually lies in the phase wires, internal Hall sensors, or the motor controller. Check the three thick phase wires (typically yellow, green, and blue) exiting the axle for melted insulation, which indicates an overcurrent event or a stalled motor condition.

Unscrew the axle nuts and slide the hub motor out of the fork dropouts to inspect the axle entry point where the silicone seal prevents water intrusion. Using your multimeter set to continuity mode, test the resistance between each phase wire pair; the readings should be identical and very low (fraction of an ohm). If a phase wire shows an open circuit, you must unlace or open the motor casing to locate the break in the copper winding.

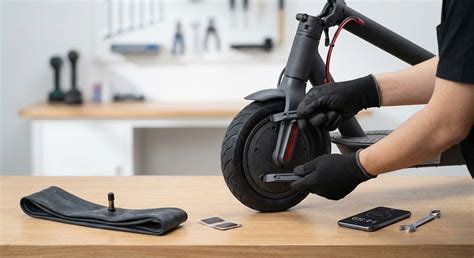

Step 4: Mechanical Brake, Tire, and Suspension Adjustment

Address mechanical wear points that affect stopping power and ride quality, such as disc brake alignment, cable tension, and tire inflation. For cable-actuated disc brakes, loosen the anchor bolt, pull the brake cable taut to remove slack, and retighten the bolt while squeezing the brake lever firmly. Adjust the inner pad using a 2mm hex wrench so the rotor sits centrally without dragging.

For pneumatic tires, maintain pressures between 45 and 50 PSI (pounds per square inch) to prevent pinch flats and reduce rolling resistance. If dealing with solid honeycomb tires, soak the tire in boiling water for 15 minutes to soften the rubber compound before using tire levers to stretch the bead over the rim flange.

Electric Scooter Component Technical Specifications Matrix

Common Electric Scooter Failures and Field Fixes

• Root Cause: The scooter cuts out abruptly under heavy acceleration or uphill climbs due to voltage sag tripping the controller's low-voltage cutoff (LVC) protection.


  • Actionable Fix: Test individual cell groups in the battery pack. If one parallel group drops significantly lower than the others under load, replace the degraded group or the entire battery pack to restore safe operating voltage thresholds.
• Root Cause: The motor makes a grinding noise or resists free spinning when powered off, caused by failed internal deep-groove ball bearings letting moisture into the stator.


  • Actionable Fix: Remove the hub motor side covers using a puller tool, drive out the old sealed bearings (e.g., standard 6002 or 6901 types), and press in new rubber-sealed replacements coated with marine-grade waterproof grease.
• Root Cause: The dashboard displays an electronic error code related to communication failure (such as Error E1 or E4 on common commuter scooter platforms), preventing motor activation.


  • Actionable Fix: Disconnect the handlebar dashboard cable, inspect the internal data wires for pinching inside the stem fold mechanism, and ensure the multi-pin connectors are fully clicked together.

Frequently Asked Questions

Why does my electric scooter battery drain extremely fast?

Battery degradation occurs naturally over hundreds of charge cycles, but rapid discharge is often accelerated by riding in freezing temperatures, carrying loads exceeding the maximum weight limit, or keeping tires chronically underinflated. Inspect the pack for cell imbalance where one damaged group pulls down the total capacity. Replacing worn cells or adopting proper charging habits between 20 and 80 percent state-of-charge helps recover runtime.

Can I replace a pneumatic tube tire with a solid rubber tire?

Yes, many riders switch to solid tires to eliminate flat tires entirely, but doing so drastically increases vibration transferred to the frame, battery solder joints, and rider joints. Solid tires also reduce top speed slightly and decrease wet-weather traction due to a stiffer rubber compound. If you make the switch, use boiling water or a microwave heating method to soften the solid tire before installation.

What should I do if my electric scooter gets wet in the rain?

Power off the scooter immediately if you notice water entering the deck or display console, and do not attempt to charge it until it dries completely. Open the deck housing in a dry, well-ventilated room, disconnect the battery harness to halt electrolytic corrosion, and use a fan to blow air across the internal electronics. Inspect the silicone gaskets around the deck lid and replace any degraded seals before riding in wet conditions again.

How do I reset the error code on my scooter dashboard?

Most consumer electric scooters clear temporary electronic faults automatically once the underlying issue is resolved and the unit is power-cycled. If the error persists, consult your specific user manual to locate the manufacturer's master reset sequence, which often involves holding the power and brake levers down simultaneously for ten seconds. Persistent error codes indicate a hard mechanical or electrical failure requiring component replacement.
