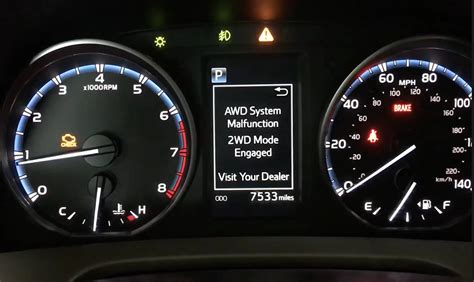

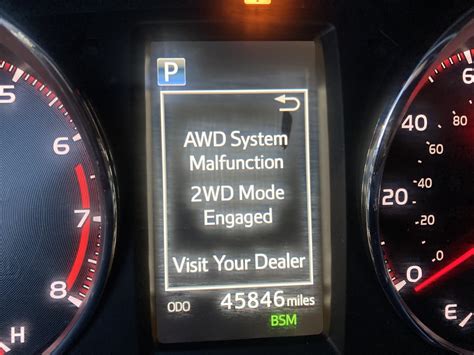

How To Fix AWD System Malfunction 2WD Mode Engaged: A Complete Diagnostic And Repair Guide

To fix an AWD system malfunction and exit 2WD mode, you must first utilize an OBD-II scanner to retrieve chassis-specific fault codes (C-codes) from the All-Wheel Drive Control Module. Common triggers include mismatched tire circumferences exceeding 3/32 of an inch, failing wheel speed sensors, or degraded rear differential fluid causing the electromagnetic coupling to overheat. Clearing the codes after verifying tire pressures and electrical continuity typically restores the torque distribution system to active status.

Pre-Diagnostic Preparation and Technical Requirements

Before attempting to dismantle drivetrain components, it is critical to understand that the "AWD System Malfunction 2WD Mode Engaged" message is a programmed fail-safe. Modern Electronic On-Demand AWD systems, common in vehicles like the Toyota RAV4, Mazda CX-5, and Ford Explorer, utilize a series of sensors to monitor wheel slip, steering angle, and yaw rate. When the ECU detects a parameter outside of the calibrated threshold, it disengages the rear electromagnetic coupling to prevent mechanical "binding" or thermal damage. Proceeding without the correct diagnostic tools can lead to unnecessary component replacement.

Essential Diagnostic Gear and Standards

• OBD-II Diagnostic Scanner: A unit capable of reading manufacturer-specific Chassis (C) and Powertrain (P) codes. Basic scanners may only read generic engine codes, which is insufficient for AWD troubleshooting.
• Digital Multimeter (DMM): Required for back-probing sensor connectors and checking the resistance of the rear differential solenoid.
• Tire Tread Depth Gauge: Critical for measuring the uniformity of tire wear across all four wheels.
• Precision Tire Pressure Gauge: Must be accurate to within +/- 0.5 PSI.
• Standard Workshop Tools: A socket set, jack stands, and contact cleaner for electrical connectors.
• Estimated Duration: 1 to 3 hours depending on the depth of the electrical fault.
• Budget Benchmarks: $20 (DIY sensor cleaning) to $1,200 (Professional replacement of the electromagnetic coupling).

Comprehensive Step-by-Step Diagnostic and Repair Workflow

Step 1: Perform a Comprehensive OBD-II System Scan

The vehicle's Electronic Control Unit (ECU) has likely stored a specific code that triggered the 2WD fail-safe. Connect your diagnostic tool to the OBD-II port located under the driver’s side dashboard. Specifically look for codes related to the "4WD/AWD" or "Coupling Control" modules.

1. Turn the ignition to the "On" position without cranking the engine.
2. Initiate an "All Systems" scan.
3. Identify C-series codes. For example, C1280 (AWD Control System Malfunction) or C1298 (Linear Solenoid Malfunction) provide the direct roadmap for repair.
4. Record the "Freeze Frame" data, which shows the exact vehicle speed, temperature, and voltage at the moment the failure occurred.

Pro-Tip: If you see codes related to "Communication Error" (U-codes), the issue is likely a wiring harness fault or a blown fuse in the Integrated Power Distribution Center (IPDM), rather than a mechanical failure of the AWD unit.

Step 2: Audit Tire Circumference and Pressure

The most frequent cause of an AWD malfunction is "tire stagger." If one tire is significantly smaller or larger than the others—due to uneven wear, a different brand, or incorrect inflation—the wheel speed sensors report different RPMs even while traveling in a straight line. The ECU interprets this as constant wheel slip and eventually shuts down the AWD system to protect the transfer case.

1. Use a precision gauge to set all four tires to the exact PSI listed on the driver’s side door jamb sticker.
2. Measure the tread depth of all four tires. In AWD vehicles, the tread depth should ideally be within 2/32" to 3/32" of each other.
3. Check the tire brand and model. Mixing different tire models, even if they share the same size (e.g., 225/65R17), can result in different rolling circumferences.

Warning: Never replace just one tire on an AWD vehicle. If one tire is damaged and the others are significantly worn, you must replace all four or have the new tire "shaved" to match the diameter of the remaining three.

Step 3: Inspect Wheel Speed (ABS) Sensors

The AWD system relies on the ABS sensors at each wheel to determine when to send power to the rear. These sensors are Hall Effect sensors that read a notched tone ring on the axle.

1. Visually inspect the wiring harnesses leading to each wheel. Look for fraying, rodent damage, or ice buildup.
2. Remove the sensor (usually held by a 10mm bolt) and check for metallic debris stuck to the magnetic tip. Shavings from brake rotors or bearings can "blind" the sensor.
3. Clean the sensor with a rag and re-install.
4. Using a multimeter, test for the 5V or 12V reference signal from the ECU and check the ground continuity.

Step 4: Evaluate the Rear Differential Fluid and Temperature

Many modern AWD vehicles use a "coupling" located at the front of the rear differential. This unit contains a series of wet clutches. If the fluid is old, burnt, or low, the clutches will slip, generating heat that triggers a thermal protection mode.

1. Locate the fill plug on the rear differential/coupling.
2. Extract a small sample of fluid. If the fluid is black or smells like burnt toast, it has lost its viscosity and frictional properties.
3. Drain and refill with the manufacturer-specified fluid (e.g., Toyota Genuine 75W-85 or Mazda SG1).
4. Ensure the breather vent on top of the differential is not clogged; a clogged vent causes pressure buildup that forces fluid out through the seals.

Step 5: Test the Electromagnetic Coupling Solenoid

If the OBD-II scan reveals a "Solenoid Circuit Range/Performance" code, you must test the actuator that engages the rear wheels. This component sits between the driveshaft and the rear differential.

1. Locate the electrical connector on the rear differential housing.
2. Disconnect the harness and use a multimeter to measure the resistance (Ohms) across the solenoid terminals.
3. Compare your reading to the factory service manual. Most solenoids should show between 1.0 and 3.0 Ohms at room temperature. An "OL" (Open Loop) reading indicates a dead solenoid that requires replacement of the entire coupling assembly.
4. Apply 12V power directly to the solenoid pins momentarily. You should hear a distinct "click" as the clutch pack engages.

Step 6: System Reset and Calibration

Once the mechanical or electrical fault is rectified, the system will not always reset itself automatically.

1. Clear the fault codes using your OBD-II scanner.
2. Perform a "Zero Point Calibration" if your scanner supports it. This aligns the steering angle sensor and G-sensors with the new AWD parameters.
3. Perform a test drive involving at least three right-hand turns and three left-hand turns at speeds above 25 MPH to allow the ECU to re-map the wheel speed data.

Technical Specifications and Drivetrain Tolerances

The following table outlines the operational thresholds that, when exceeded, typically trigger the AWD to 2WD fail-safe mode.

Common Drivetrain Failures and Field Fixes

Scenario 1: The "Snow and Slush" False Positive

In heavy winter conditions, snow can pack into the wheel wells and freeze onto the ABS tone rings. This creates an erratic signal that the ECU cannot interpret, leading to an immediate AWD shutdown.

• Root Cause: Physical obstruction of the wheel speed sensor signal by ice or packed debris.
• Actionable Fix: Pressure wash the wheel wells and the area behind the brake rotors. Clear the codes and drive the vehicle to allow the sensors to re-sync.

Scenario 2: Deteriorated Battery Health

Modern AWD control modules are highly sensitive to "dirty" power. If the battery is aged (3+ years), the voltage may dip during high-torque demands when the AWD solenoid tries to engage.

• Root Cause: Low voltage causes the AWD module to lose communication with the main ECU.
• Actionable Fix: Perform a load test on the battery. If the resting voltage is below 12.4V, replace the battery and clean the terminal connectors to ensure a stable 14.4V charging current reaches the drivetrain modules.

Scenario 3: Overheated Rear Coupling After Highway Driving

The "2WD Mode Engaged" warning appears only after 30 minutes of highway driving but disappears after the car sits for an hour.

• Root Cause: Mismatched tire sizes or a failing internal bearing in the coupling is generating excess heat.
• Actionable Fix: Check for "Tire Stagger" using a tape measure around the circumference of the tire (the "roll-out" method). If tires are matched, replace the rear differential fluid with a high-performance synthetic equivalent that offers better thermal stability.

Frequently Asked Questions

Can I drive my vehicle indefinitely in 2WD mode?

While it is generally safe to drive on dry pavement in 2WD mode, you should avoid heavy acceleration and slippery conditions. The vehicle’s stability control and traction control systems are calibrated for AWD; driving in 2WD mode may result in unpredictable handling during emergency maneuvers.

Why did my AWD light come on after installing a spare tire?

Most "donut" spare tires are significantly smaller in diameter than standard tires. The AWD system detects the massive RPM difference on that axle and disables the system to prevent the center differential from burning out. You must replace the spare with a full-sized matched tire to restore AWD functionality.

Will a software update fix the AWD malfunction?

In some cases, manufacturers (notably Toyota and Ford) release TSBs (Technical Service Bulletins) that involve reflashing the AWD Control Module. These updates often widen the "tolerance" for sensor noise or temperature fluctuations. Check with a dealership to see if your VIN has a pending drivetrain software update.

How much does it cost to replace an AWD coupling?

If the internal electromagnetic clutch fails, the part typically costs between $600 and $900. Labor usually adds another $200 to $400. However, most AWD malfunctions are resolved through sensor cleaning or tire replacement, which are significantly less expensive.

Resolve Your AWD Malfunction Today

Ignoring an AWD warning can lead to permanent damage to your vehicle's transfer case and differential assemblies. By following these diagnostic steps, you can identify whether your issue is a simple tire pressure imbalance or a more complex electrical fault requiring professional intervention.
