How To Fit A Suffolk Latch: A Masterclass In Traditional Door Hardware Installation

Fitting a Suffolk latch requires the precise execution of a vertical mortise slot for the thumb-lever and the exact horizontal alignment of the latch bar to ensure a secure gravity-fed closure. Success is measured by the fluid mechanical movement of the lever and a 2mm clearance within the keeper to account for seasonal timber expansion and contraction.

Essential Hardware Inventory and Pre-Installation Calibration

Before commencing the installation, it is imperative to distinguish between a Suffolk latch and its cousin, the Norfolk latch. While the Norfolk latch features a full backplate for the handle, the Suffolk latch utilizes a traditional "thumbtack" handle that mounts directly to the timber. This guide assumes the installation is being performed on a standard internal "ledge and brace" door, typically constructed from oak or pine, which requires specific considerations for grain direction and screw retention.

Technical Tool and Material Checklist

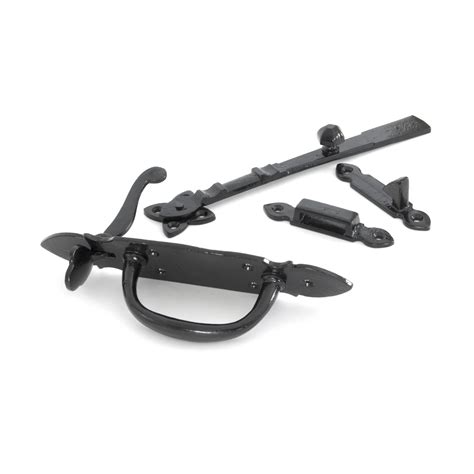

• Primary Hardware: Suffolk latch set (Handle, thumb-piece/lever, latch bar, staple/bridge, and keep/striker).
• Precision Marking: Spirit level (300mm), marking gauge, sharpened 2H pencil, and a combination square.
• Boring and Cutting: Power drill with a 10mm or 12mm flat wood bit (spade bit) and a high-quality 12mm (1/2 inch) bevel-edge wood chisel.
• Fastening: Assorted pilot drill bits (2mm and 3mm), pozi-drive or slotted screwdrivers (traditional slotted screws are preferred for historical accuracy), and beeswax or candle wax for screw lubrication.
• Safety and Maintenance: Safety goggles, a mallet, and a fine-grit sandpaper (120-180 grit) for smoothing the mortise slot.

Baseline Benchmarks

• Estimated Duration: 45 to 90 minutes depending on timber density.
• Standard Mounting Height: Traditionally set at 1300mm from the floor line, or centered on the middle "ledge" of the door for aesthetic symmetry.
• Clearance Requirements: Ensure the latch bar has a minimum of 25mm of "overlap" onto the door frame when in the closed position.

Technical Workflow for Suffolk Latch Integration

Successful installation follows a specific sequence where the handle side (opening side) is prepared first, followed by the mechanical bar assembly on the reverse (closing side).

Step 1: Ergonomic Positioning and Marking

The handle must be placed on the side of the door that opens toward you. Hold the handle against the door at your chosen height. The thumb-piece—the curved lever that passes through the door—must sit comfortably at a height where the thumb can naturally depress it.

1. Mark the two screw holes for the handle.
2. Identify the center point where the thumb-piece will pass through the door. This is usually located near the top of the handle grip.
3. Use a combination square to transfer this center point to the edge of the door and then onto the reverse side. This ensures the slot you are about to cut is perfectly perpendicular to the door face.

Step 2: Excavating the Thumb-Piece Slot

The most critical technical stage is creating the slot for the lever. This slot must be wide enough to allow the lever to move up and down freely but narrow enough to be hidden by the handle's decorative flange.

1. Drill two 10mm or 12mm holes, one above the other, to create a vertical channel approximately 30mm high.

2. Warning: To prevent "blowout" (shattering the wood grain on the exit side), drill until the point of the bit just breaks through the reverse side, then move to the other side to finish the hole.

3. Use your 12mm chisel and a mallet to remove the "waste" timber between the two holes.
4. Pare the sides of the slot until they are smooth. Test the thumb-piece; it should move through its full arc without grinding against the timber.

Step 3: Mounting the Handle Assembly

With the slot cleared, you can now secure the handle.

1. Insert the thumb-piece through the slot from the front side.
2. Align the handle vertically using a spirit level.
3. Drill 2mm pilot holes for the mounting screws. This is essential in hardwoods like oak to prevent the screw heads from shearing off or the timber from splitting.
4. Drive the screws manually. If using traditional black iron screws, apply a small amount of beeswax to the threads to ease the torque requirement.

Step 4: Latch Bar Alignment and Pivot Point

Move to the reverse side of the door. The latch bar (the "sneak") is the horizontal component that will be lifted by the thumb-piece.

1. Position the latch bar so that the thumb-piece sits underneath it, roughly 20mm to 30mm from the pivot end of the bar.
2. Place a spirit level on top of the bar to ensure it is perfectly horizontal.
3. Mark the pivot hole—this is the hole at the end of the bar furthest from the door frame.
4. Drill a pilot hole and fix the pivot screw. Tighten it enough to hold the bar, but keep it loose enough so the bar can move freely under its own weight.

Step 5: Installing the Staple (The Bridge)

The staple is the U-shaped piece that straddles the bar. Its function is to limit the vertical and lateral travel of the bar, preventing it from falling off the thumb-piece.

1. Slide the staple over the bar, positioning it approximately 50mm from the edge of the door.
2. Ensure there is enough "play" within the staple for the bar to rise high enough to clear the keep (striker) later.
3. Hammer the staple into the timber (if it is a spiked version) or screw it in (if it has a backplate).

4. Pro-Tip: If the door is particularly thin, ensure the staple legs do not protrude through the front face of the door. You may need to trim the spikes with a hacksaw.

Step 6: Fitting the Keep (Striker Plate)

The final component is the keep, which is fixed to the door frame (the jamb).

1. Close the door fully.
2. Lift the latch bar to its highest point and mark where the bottom of the bar rests on the door frame.
3. Position the keep so that the latch bar can drop into it securely.
4. If using a "screw-in" keep, simply pilot drill and fix. If using a "drive-in" spike keep, you may need to chisel a small pilot notch to ensure the spike enters the frame straight.
5. Test the operation: depressing the thumb-lever should lift the bar clear of the keep, allowing the door to swing. Releasing it should allow gravity to drop the bar back into the keep.

Architectural Hardware Specification Standards

The selection of a Suffolk latch should be dictated by the door's environment and usage frequency. The following table outlines the technical variations in common latch materials and their performance metrics.

Troubleshooting Common Mechanical Failures

Even with precise measurements, timber movement or hardware casting irregularities can cause operational issues. Use these remedies to fix common site failures.

• The Latch Bar Fails to Drop (Binding):




  • Root Cause: The pivot screw is over-tightened, or the staple is too tight against the bar, creating friction.
  • Actionable Fix: Back off the pivot screw by a quarter turn. If the staple is the issue, gently pry it outward using a flat-head screwdriver to increase the internal clearance.

• Thumb-Piece is Hard to Depress:




  • Root Cause: The mortise slot is too narrow, or the lever is rubbing against the top of the slot due to door sag.
  • Actionable Fix: Remove the handle and use a rasp or chisel to widen the slot by 2mm on each side. Ensure the lever does not contact the wood at any point in its arc.

• The Door Rattles When Latched:




  • Root Cause: The keep (striker) is mounted too far back from the door face, leaving a gap.
  • Actionable Fix: Reposition the keep 2-3mm closer to the door face. Alternatively, if using a metal keep, you can sometimes carefully bend the "tongue" of the keep inward to create a tighter fit.

• Timber Splitting During Screw Entry:




  • Root Cause: Failure to account for the root diameter of the wood screw, particularly in seasoned oak.
  • Actionable Fix: Always use a pilot bit that is roughly 70% of the screw's shank diameter. For a 4mm screw, use a 2.5mm or 3mm pilot bit.

Frequently Asked Questions

Which side of the door does a Suffolk latch go on?

The handle and thumb-piece are installed on the side of the door that pulls toward the user (the side without the hinges visible). The latch bar and keep are installed on the reverse side where the door meets the frame.

What is the difference between a Suffolk latch and a Norfolk latch?

The Suffolk latch features a handle with two separate fixing points (top and bottom) that are screwed directly into the wood. A Norfolk latch has a continuous metal backplate behind the handle, which offers more support for thinner or weaker door materials.

Can I fit a Suffolk latch to a modern hollow-core door?

It is not recommended. Suffolk latches are heavy and require solid timber for the pivot screw and the staple. Hollow-core doors lack the internal structure to hold the screws under the mechanical stress of the lever action unless significant internal blocking is added.

At what height should a Suffolk latch be installed?

While 1300mm is the architectural standard for most latches, for a ledge and brace door, it is best to align the latch bar with the center of the middle horizontal ledge. This provides the most stable fixing point for the hardware.

How do I stop my Suffolk latch from rusting?

For beeswax-finished latches, a light coat of high-quality furniture wax or "3-in-1" oil applied every few months will prevent oxidation. For outdoor use, ensure you purchase a galvanized or stainless steel variant with a black UV-resistant coating.
