How To Find The Volume Of A Ramp: A Complete Engineering And Concrete Estimation Guide

To find the volume of a ramp, calculate the volume of its underlying right triangular prism shape using the geometric formula: Volume equals 0.5 multiplied by the Rise (height) multiplied by the Run (length) multiplied by the Width. For concrete ordering, convert the final volume from cubic feet to cubic yards by dividing the total by 27, then apply a 10% waste factor to ensure complete structural coverage.

Pre-Estimation Planning and Field Measurement Requirements

Accurately calculating the volume of a ramp is a foundational step in structural engineering, concrete estimation, and earthwork logistics. Whether you are pouring a permanent ADA-compliant commercial concrete ramp, building a timber skateboard ramp, or estimating the aggregate fill required for a driveway transition, a minor mathematical error can lead to costly material shortages or expensive waste.

Before picking up a calculator, you must establish the exact boundary lines of the ramp and account for site conditions. If you are pouring concrete or laying asphalt, the grade must be excavated, compacted, and framed with wooden forms. For accurate volume calculation, measurements must be taken from the inside faces of these forms to capture the true volume of the material to be deposited. Additionally, you must determine if your ramp requires structural elements like footings, curbs, or landing pads, as these features will require separate volume calculations that must be added to your final tally.

Essential Estimating Toolkit and Field Equipment

• Measurement Tools: Laser measure or high-tension steel engineering tape measure to eliminate sag errors over long runs.
• Leveling Equipment: A digital level or transit level to verify the precise rise and slope percentage over the total run.
• Prerequisite Mathematical Knowledge: Mastery of basic volume conversions (such as converting cubic inches to cubic feet, and cubic feet to cubic yards) and an understanding of right-angle trigonometry for slope calculation.
• Standard Estimating Benchmarks: A baseline concrete density assumption of 145 to 150 pounds per cubic foot, along with a standard 5% to 10% material waste factor depending on the stability of the subgrade.
• Estimated Calculation Duration: 15 to 30 minutes of field measurement and mathematical verification.

Technical Step-by-Step Ramp Volume Calculation

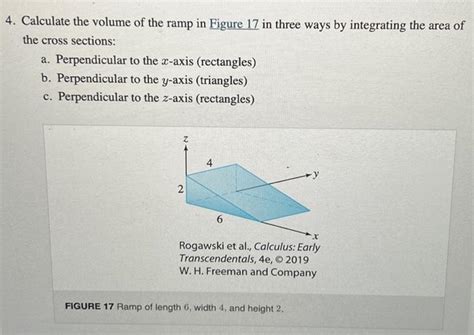

A standard ramp is geometrically classified as a right triangular prism. This means its volume is exactly half of a rectangular box with the same maximum height, length, and width dimensions. To calculate this volume with pinpoint accuracy, follow this systematic field procedure.

Step 1: Measure and Record the Primary Dimensions in Consistent Units

To prevent conversion errors during the calculation phase, you must measure the three key dimensions of the ramp cavity using the exact same unit of measurement. For most construction projects in North America, this unit is feet. If you record any measurements in inches, immediately convert them to decimal feet by dividing the value by 12.

Measure the following dimensions:

1. The Rise (Height): The vertical distance from the bottom of the subgrade or ground level to the highest point of the finished ramp deck.
2. The Run (Length): The horizontal distance from the very start of the ramp incline to the point directly beneath the highest point. Do not measure the diagonal slope length of the ramp surface; you must measure the flat, horizontal distance along the ground.
3. The Width: The horizontal distance across the ramp surface from one side to the other, measured perpendicular to the run.

Pro-Tip: Never use the diagonal length of the ramp face (the hypotenuse) in place of the horizontal run. Using the slope distance instead of the horizontal distance will artificially inflate your calculated volume, leading to over-ordering of materials.

Step 2: Apply the Right Triangular Prism Volume Formula

Once your rise, run, and width are expressed in decimal feet, calculate the basic three-dimensional volume of the ramp. Since a triangle is half of a rectangle, the cross-sectional area of the side of your ramp is calculated as 0.5 multiplied by the rise multiplied by the run. Multiplying this cross-sectional area by the width yields the total volume.

Use the primary formula:

• Volume (Cubic Feet) = 0.5 * Rise (Feet) * Run (Feet) * Width (Feet)

For example, if you are calculating the volume of an accessibility ramp with a vertical rise of 2.5 feet, a horizontal run of 30 feet, and a total width of 4 feet, the calculation is:

• Volume = 0.5 * 2.5 * 30 * 4
• Volume = 150 Cubic Feet

Step 3: Convert Cubic Feet to Cubic Yards for Material Ordering

Bulk materials such as ready-mix concrete, crushed stone, and asphalt are sold and delivered by the cubic yard. Because there are 27 cubic feet in a single cubic yard (3 feet wide by 3 feet long by 3 feet deep), you must convert your calculated cubic feet to cubic yards to place an accurate order.

Use the conversion formula:

• Volume (Cubic Yards) = Volume (Cubic Feet) / 27

Using the previous example of 150 cubic feet:

• Volume = 150 / 27
• Volume = 5.56 Cubic Yards

Warning: Ready-mix concrete suppliers generally do not sell or deliver fractions of a yard smaller than quarter-yard or half-yard increments. Always round your calculated material requirements up to the nearest logical delivery threshold after applying your waste factor.

Step 4: Calculate and Apply the Subgrade Waste Factor

When pouring concrete or placing aggregate base materials on site, the ground underneath is rarely a perfectly flat, non-porous plane. Excavation depth variances, soil compaction, and deflection of wooden formwork under the hydraulic pressure of wet concrete will increase the required material volume. To prevent running short, you must add a waste factor.

For tight wooden forms built over solid concrete or hard rock, apply a 5% waste factor. For standard soil, sand, or gravel subgrades, apply a 10% waste factor.

To apply a 10% waste factor:

• Total Material Volume = Calculated Volume (Cubic Yards) * 1.10
• Total Material Volume = 5.56 * 1.10 = 6.12 Cubic Yards

Step 5: Calculate Supplementary Structural Elements

Many modern commercial or residential ramps require more than just a simple inclined plane. You must calculate and add the volumes of any auxiliary structures:

1. Top and Bottom Landings: Flat transition zones are typically shaped as rectangular prisms. Calculate their volume using the standard formula: Volume = Height * Length * Width, and add this directly to your ramp volume.
2. Safety Curbs and Retaining Side Walls: If your ramp features solid concrete curbs along the sides to prevent wheels from slipping off, calculate these as individual rectangular prisms and add them to the total.
3. Frost Footings or Thickened Edges: For heavy-duty concrete installations, the perimeter or the base of the ramp may require deep footings. Calculate the trench volume of these footings (Depth * Width * Length) and include them in your final material order.

Technical Ramp Parameters and Conversion Metrics

The following reference table provides structural dimensions, slope ratios, and the corresponding material volumes and weights per foot of ramp width. These calculations are based on standard concrete weighing 145 pounds per cubic foot.

Common Calculation Failures and Field Adjustments

Even experienced project managers can run into discrepancies between their calculated material volume and the actual volume consumed on site. Understanding these real-world failure scenarios helps you avoid costly errors.

• Dimensional Unit Mixing (Inches and Feet Intermixed)




  • Root Cause: Multiplying dimensions measured in different units (for example, multiplying a 6-inch rise by a 12-foot run by a 36-inch width) without first converting all values to a common base unit. This can result in volume calculations that are off by several orders of magnitude.
  • Actionable Fix: Establish a strict site measurement policy where all dimensions are immediately converted to decimal feet before any mathematical operations occur. Divide all inch values by 12 to secure the correct decimal foot equivalent (e.g., 6 inches becomes 0.5 feet).

• Neglecting Subgrade Absorption and Soil Deflection




  • Root Cause: Placing high-slump concrete directly onto dry, uncompacted sandy or porous clay soil. The soil absorbs water from the mix, which can lead to settling, while the weight of the concrete compresses the loose soil, resulting in a deeper cavity than originally measured.
  • Actionable Fix: Thoroughly compact the subgrade with a mechanical plate compactor and dampen the ground with water prior to pouring concrete. Additionally, increase your standard waste allowance from 5% to 10% or 12% when working over softer soils.

• Omitting Formwork Bowing Under Hydrostatic Pressure




  • Root Cause: Using thin, under-braced wooden forms (such as 1/2-inch plywood without adequate stakes) to hold heavy wet concrete. As the concrete is poured, the wooden forms bow outward, creating a wider ramp than planned and consuming more volume than estimated.
  • Actionable Fix: Install strong 2x4 wooden stakes every 3 feet along the perimeter of the forms. Add diagonal outrigger braces to reinforce the sides of the forms, preventing any lateral movement or bowing during the pour.

Frequently Asked Questions

How do you find the volume of a ramp with a flat landing platform?

To find the volume of a ramp with a flat landing platform, divide the structure into two distinct geometric sections: the inclined triangular prism and the flat rectangular landing. Calculate the volume of the triangular ramp section using the formula (0.5 * Rise * Run * Width), then calculate the landing volume using the formula (Height * Length * Width). Finally, add these two volumes together to determine the total material required.

What is the formula for calculating the cubic yards of concrete for a ramp?

To calculate the cubic yards of concrete required for a ramp, first find the volume in cubic feet by multiplying 0.5 by the Rise (in feet) by the Run (in feet) by the Width (in feet). Divide this total cubic feet value by 27 to convert it to cubic yards, and then multiply the result by 1.10 to include a standard 10% material waste and subgrade compaction factor.

How does the slope ratio affect the overall volume of a ramp?

The slope ratio directly dictates the horizontal run required for a specific vertical rise, which heavily influences the overall volume of material. For example, a standard 1:12 ADA slope requires 12 feet of run for every 1 foot of rise, whereas a steeper 1:8 slope only requires 8 feet of run; consequently, the 1:12 ramp will require exactly 50% more material volume than the 1:8 ramp for the same rise and width.

How do I calculate the volume of a ramp that has curved or sloping side walls?

For a ramp with integral concrete side walls, calculate the central triangular prism of the ramp walkway first. Next, calculate each side wall as a separate right triangular prism by multiplying 0.5 by the wall height, wall length, and wall thickness, then double this value for both sides and add it to the core walkway volume to get the combined total.
