Methods And Formulas To Calculate The Volume Of An Irregular Object
Determining the volume of an irregular object relies primarily on the Archimedes' principle of displacement, where the volume of an submerged object is equal to the volume of fluid it displaces. This approach provides a precise, non-destructive method for measuring three-dimensional capacity in objects lacking uniform geometric dimensions or mathematical symmetry.
Essential Preparation and Measurement Requirements
Successfully calculating the volume of an irregular object requires precision in fluid dynamics and surface tension management. Before beginning, ensure the workspace is stabilized to prevent parallax errors during measurement reading. The accuracy of your result is tethered to the sensitivity of your measuring device and the consistency of the liquid used.
- Essential Tools: A graduated cylinder or a volumetric beaker, a precision balance (if using mass-based displacement), a displacement tank (for large objects), and a fluid with known density, typically water at 20 degrees Celsius.
- Mandatory Prerequisites: Ensure the object is non-porous and non-absorbent. If the object absorbs water, it will yield a falsely high volume reading. If the object floats, you must use a rigid, thin tether or a sinker of known volume to force complete submersion.
- Estimated Benchmarks: For standard laboratory-grade results, allow 15 to 30 minutes for setup and multiple trials to account for meniscus variation. The total cost for entry-level measurement equipment typically falls under 50 dollars.
Technical Execution of Volume Displacement
Step 1: Baseline Fluid Volumetric Reading
Fill your graduated cylinder or displacement vessel with a sufficient volume of water to fully submerge the object. Record this initial volume level exactly at the bottom of the meniscus curve. If the container is opaque, use a high-precision mass scale to calculate the initial weight of the water, then convert the mass to volume using the density constant of water at room temperature.
Step 2: Object Immersion and Displacement
Gently place the object into the container, ensuring that no air bubbles are trapped on its surface, as air pockets will skew your final volume calculation. If the object has complex crevices, tilt it slightly while submerging to release trapped air. If the object is too large for a cylinder, place it into a filled overflow can and collect the displaced water in a separate graduated vessel.
Warning: Never drop the object into the water directly, as the kinetic energy can cause splashing, which leads to a loss of total fluid volume and invalidates the measurement.
Step 3: Final Volumetric Differential
Record the new water level after the object is fully submerged. Subtract the initial baseline volume from this final volume. The difference represents the exact volume of the irregular object. If you are working in cubic centimeters, remember that one milliliter of water is exactly equivalent to one cubic centimeter of volume.
Step 4: Verification and Surface Tension Adjustment
Repeat the process at least three times to determine an average volume. If your results vary by more than two percent, investigate for persistent air bubbles or inconsistent manual handling. For very small objects, use a micrometer to verify that no significant fluid loss occurred due to adhesion to the object's surface upon removal.
Find the volume of an irregular object
Comparative Methodologies and Material Parameters
The following table outlines the efficacy of different volume measurement techniques based on object properties and required precision levels.
| Methodology | Best For | Technical Limitation | Accuracy Level |
|---|---|---|---|
| Water Displacement | Solid, non-porous objects | Potential for fluid absorption | High |
| Geometric Approximation | Objects with near-uniform sides | High margin of error | Low |
| Gas Pycnometry | Porous or absorbent materials | Expensive equipment required | Extreme |
| Mathematical Integration | Digital 3D models | Requires CAD software | Absolute |
Addressing Measurement Discrepancies and Field Failures
Excessive Air Bubble Entrapment
- Root Cause: Rapid submersion creates surface tension barriers that trap atmosphere against the irregular surfaces of the object.
- Actionable Fix: Use a drop of surfactant or a mild detergent to lower the surface tension of the water, allowing the liquid to coat the object fully and forcing air to the surface.
Object Density and Buoyancy Issues
- Root Cause: Objects with lower density than the displacement liquid will float, preventing a full volume measurement.
- Actionable Fix: Utilize a thin, high-density wire to push the object beneath the surface, then perform a separate displacement test for the wire alone to subtract its volume from the total result.
Parallax and Meniscus Misreading
- Root Cause: Viewing the water level from an angle rather than at eye level creates a shift in the perceived reading of the graduated scale.
- Actionable Fix: Position the eyes at the exact level of the meniscus. Ensure the cylinder is placed on a perfectly level surface to prevent volume distortion.
Frequently Asked Questions
What should I do if the object is too large for a cylinder?

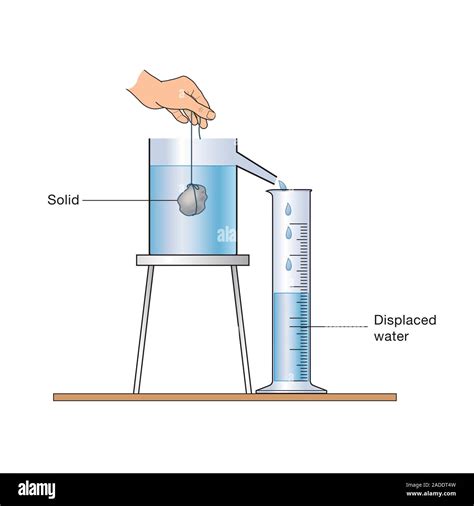

Use the overflow method, also known as the Archimedes method. Fill a vessel to the absolute brim, place an overflow collection container beneath the spout, and submerge the object to collect the displaced water, which can then be measured in a precise graduated cylinder.
How does porosity affect volume accuracy?
Porosity introduces an error where the water enters the pores of the object, measuring both the volume of the material and the volume of the internal void spaces. If total displacement is required, seal the object with a thin, water-repellent wax coating before testing to ensure only external volume is measured.
Can I calculate volume using weight?
Yes, if you know the density of the object material. Using the formula Volume equals Mass divided by Density, you can derive the volume. However, this is only accurate if the material is homogeneous and the density is verified in a laboratory setting.
How accurate is water displacement?
Water displacement is generally accurate to within one percent for standard irregular shapes. Factors like temperature, impurities in the water, and the precision of the graduated instrument are the primary variables that dictate the final margin of error.
