How To Find Screw Size: A Professional Guide To Precise Fastener Identification
Identifying screw size requires a systematic assessment of three primary variables: major diameter, thread pitch, and total length. By utilizing a combination of a digital caliper and a thread pitch gauge, you can convert physical measurements into standard ISO metric or Unified National (SAE) specifications to ensure mechanical compatibility and prevent thread stripping.
Essential Tools and Metric Verification Prerequisites
Accurate fastener identification relies on objective measurement rather than visual estimation, which is prone to error due to slight variations in manufacturing standards. Before beginning the process, organize your workspace to ensure all variables are isolated. You will need a high-quality digital caliper capable of reading in both millimeters and inches to within 0.01mm accuracy. A thread pitch gauge, which acts as a comb-like reference tool to match the ridges of your screw, is non-negotiable for determining the distance between thread crests.
- Essential Hardware: Digital calipers (stainless steel preferred), thread pitch gauges (metric and imperial), a ruler or tape measure for rough estimation, and a clean, well-lit surface.
- Mandatory Prerequisites: Basic understanding of the difference between fine and coarse threading, and the ability to differentiate between tapered (wood/self-tapping) and machine threads.
- Operational Benchmarks: The entire identification process for a single bolt or screw typically takes between three to five minutes when performed with a calibrated digital toolset.
Procedural Workflow for Fastener Specification
Step 1: Measuring the Major Diameter
The major diameter is the widest point of the screw measured from the top of the thread on one side to the top of the thread on the opposite side. Place the jaws of your caliper against these peaks while ensuring the tool remains perpendicular to the shaft. For machine screws, this diameter usually correlates to the nominal size (e.g., 1/4 inch or 6mm).
Pro-Tip: If the screw is damaged or rusted, take the measurement on the cleanest section of the threads. If measuring a tapered screw, measure the diameter at the thickest part of the shank just below the head.
Step 2: Determining the Thread Pitch or Count
Thread pitch refers to the distance between two consecutive thread crests. For metric fasteners, this is expressed as the distance in millimeters (e.g., 1.0mm). For Imperial (SAE) fasteners, this is expressed as Threads Per Inch (TPI). Place your thread pitch gauge against the threads of your screw until you find a tooth profile that fits perfectly without light gaps or rocking.
Warning: Do not force a gauge into the threads. If the gauge does not sit flush against the entire length of the screw, you are likely using the wrong standard (Imperial vs. Metric), and forcing it will damage both the tool and the fastener.
Step 3: Measuring Total Length
The method for measuring length depends entirely on the head style of the screw. For flat-head or countersunk screws, measure from the very top of the head to the bottom tip, as the head is designed to sit flush with the material surface. For pan, hex, or round-head screws, measure from the underside of the head—where it would sit against the material—down to the bottom of the tip.
Step 4: Finalizing the Specification

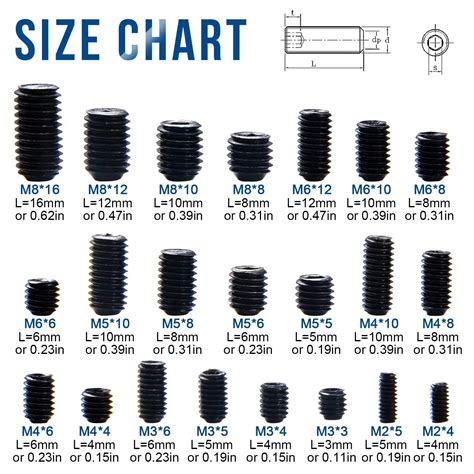

Combine your findings to generate a complete fastener description. A metric screw will be described as the nominal diameter multiplied by the pitch (e.g., M6 x 1.0). An imperial screw is described by its gauge or nominal diameter and the TPI (e.g., 1/4-20). If the screw is a wood screw or self-tapping screw, you must also note the gauge number (e.g., #8) and the total length in inches.
Servo Screw Size at Edna Mondragon blog
Technical Parameters of Common Fastener Standards
The following table outlines the correlation between nominal sizing and common thread counting standards found in industrial and residential applications.
| Fastener Type | Measurement Standard | Key Characteristic | Typical Application |
|---|---|---|---|
| Metric (ISO) | Diameter (mm) x Pitch (mm) | Uniform spacing | Automotive/Mechanical |
| Unified (UNC) | Diameter (Fractional) x TPI | Coarse thread | Construction/General |
| Unified (UNF) | Diameter (Fractional) x TPI | Fine thread | Precision Assembly |
| Wood Screw | Gauge (#) x Length (in) | Tapered shank | Carpentry |
| Sheet Metal | Gauge (#) x Length (in) | Hardened tip | HVAC/Metal Framing |
Troubleshooting Common Identification Errors
Even with precise tools, human error or component damage can complicate the process. Use these remediation strategies to verify your data before proceeding with hardware procurement.
- Root Cause: The caliper reading does not match any standard nominal size.
- Actionable Fix: You are likely dealing with a proprietary fastener, common in consumer electronics or specialized machinery. Re-measure using a high-precision digital caliper and check the manufacturer’s technical manual or schematics for specific hardware part numbers.
- Root Cause: The thread pitch gauge matches closely but feels loose.
- Actionable Fix: Cross-check your metric gauge against an imperial gauge. It is common to confuse coarse imperial threads with similar metric pitches. Never assume a "near fit" is acceptable; a misaligned thread pitch will cause significant structural failure during installation.
- Root Cause: The screw is stripped, preventing accurate measurement.
- Actionable Fix: Use a known-good nut or threaded insert of a known size to test the threading. If a known M6 nut threads onto the mystery bolt smoothly, you have confirmed the diameter and pitch regardless of the physical damage to the threads.
Frequently Asked Questions
How do I tell if my screw is metric or imperial?
The easiest way is to use a thread pitch gauge. Metric fasteners will align with millimeters, while imperial fasteners will align with threads per inch. If your screw is from a piece of equipment manufactured in the United States, it is likely imperial; if it is from a vehicle or imported electronic device, it is almost certainly metric.
Does the screw length include the head?
For flat-head (countersunk) screws, the length includes the head because the head sits flush with the surface. For all other head types, such as pan, truss, or hex heads, the length is measured from the underside of the head to the tip of the screw.
What is the difference between major and minor diameter?
The major diameter is the widest part of the screw, measured at the peaks of the threads. The minor diameter is the narrowest part, measured at the root of the threads (the valley). Nominal size is always defined by the major diameter.
What should I do if my screw size is not available in stores?
If you cannot source a replacement, do not attempt to force a similar-looking screw into the hole. Seek out a fastener specialty house that deals in surplus or industrial hardware, or consider using a thread repair kit (such as a helicoil) to adapt the existing hole to a more standard, readily available screw size.
Ensure Structural Integrity With Professional Fastening
By following these precise measurement protocols, you eliminate the risk of hardware failure and project delays caused by mismatched fasteners. Secure your next assembly with confidence by verifying your specifications using our professional identification guidelines today.
