How To Find A Leak In Power Steering: Complete Diagnostic And Repair Guide
Detecting a power steering fluid leak requires a systematic inspection of the high-pressure lines, pump seals, steering gear, and fluid reservoir. By identifying the specific color, viscosity, and accumulation point of the fluid, you can isolate the source of pressure loss and prevent premature hydraulic pump failure.
Pre-Procedure Planning and Diagnostic Preparation
Pinpointing a power steering leak effectively requires an understanding of hydraulic system components and a clean working environment. Power steering systems operate under intense pressures—often exceeding 1,500 psi during dynamic steering maneuvers—meaning even minor seal degradation will result in active fluid expulsion. Before lifting the vehicle, assemble the necessary tools to perform a comprehensive visual and tactile sweep of the entire hydraulic circuit.
- Essential Gear and Tools: Automotive jack and heavy-duty jack stands, mechanic inspection mirror, high-lumen LED flashlight, clean microfiber shop rags, aerosol brake cleaner, and a bottle of UV dye testing kit (optional for micro-leaks).
- Prerequisite Knowledge and Standards: Familiarize yourself with your vehicle's specific steering fluid specification, whether it utilizes Dexron ATF, specialized CHF synthetic hydraulic fluid, or standard power steering fluid. Mixing incompatible fluid types can destroy internal elastomeric seals.
- Budget and Duration Benchmarks: Diagnostic execution takes between 30 to 60 minutes. Material costs for basic tools or replacement hose clamps range from 10 to 50 dollars, while pump or rack replacements scale based on vehicle make and model.
Step-by-Step Power Steering Leak Detection Workflow
Step 1: Inspect the Fluid Reservoir and Level
Park the vehicle on a flat, level surface, engage the parking brake, and pop the hood. Locate the power steering fluid reservoir, typically marked with a steering wheel icon on the cap. Wipe the cap clean before opening it to prevent dirt from entering the hydraulic system. Check the fluid level against the cold or hot indicator lines molded into the plastic or dipstick.
Warning: Never open the power steering reservoir cap while the engine is running or immediately after driving, as the fluid is pressurized and scalding hot.
If the reservoir is significantly below the minimum line or completely dry, you have an active leak that requires correction before refilling to prevent pump cavitation.
Step 2: Trace the Accessory Drive Belt and Pump Assembly
Move your inspection light downward toward the power steering pump, which is typically driven by the serpentine belt. Inspect the body of the pump, the front shaft seal, and the pressure switch (if equipped). Look for dark, wet pooling around the mounting brackets or slinging patterns on the underside of the hood caused by the serpentine belt catching escaping fluid.
Pro-Tip: If the pump pulley shaft exhibits lateral play or wobbles when manipulated by hand, the internal shaft bearing and front seal have failed, necessitating a complete pump rebuild or replacement.

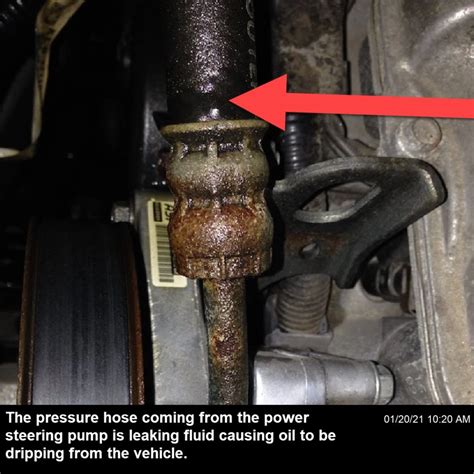

Step 3: Examine Pressure and Return Hoses
Trace both the high-pressure metal-and-rubber line running from the pump to the steering gear, and the low-pressure return line running back to the cooler or reservoir. Run a clean gloved hand or a shop rag along the entire length of each hose, paying close attention to crimped metal fittings, junction blocks, and rubber sections resting near hot exhaust manifolds or engine blocks, which accelerates dry rot. Fluid tracking down a hose from a higher mounting point often mimics a hose failure, so always trace the dampness upward to its true origin.
Step 4: Inspect the Steering Gearbox or Rack and Pinion Bellows
Elevate the front end of the vehicle securely using an automotive hydraulic jack and stable jack stands. Locate the steering gear assembly at the base of the steering column. For rack and pinion systems, inspect the rubber bellows (boots) on both the driver and passenger sides.
Warning: Never place any portion of your body underneath a vehicle supported solely by a hydraulic jack; always utilize certified jack stands rated for your vehicle's gross weight.
Squeeze the rubber bellows gently. If fluid pours out of the boot, the internal rack seals (hydraulic cylinder seals) have ruptured, filling the boot with fluid. For traditional steering gearboxes on trucks, inspect the pitman shaft seal at the bottom of the steering box housing, which is a common failure point for weeping fluid.
Power Steering Pump Leak?? | Toyota 4Runner Forum [4Runners.com]
Power Steering Component Failure Matrix
| Component | Common Failure Mode | Diagnostic Indicator | Corrective Action |
|---|---|---|---|
| High-Pressure Hose | O-ring degradation or rubber line rupture | Fluid spraying onto engine bay, active dripping under load | Replace hose assembly and crush washers |
| Power Steering Pump | Front shaft seal or housing gasket wear | Wet pulley, whining noise, heavy steering effort | Replace pump unit or rebuild with seal kit |
| Rack and Pinion Bellows | Internal steering cylinder seal blowout | Oil pooling inside rubber inner tie rod boots | Replace rack and pinion assembly |
| Reservoir / Return Line | Loose spring clamp or cracked plastic body | Slow weeping around hose connection points | Replace constant-tension clamps or reservoir |
Common Site Failures and Field Fixes
Addressing power steering leaks requires targeting the root cause rather than relying on temporary external patches.
- Root Cause: Degraded aluminum crush washers on banjo-style high-pressure line fittings.
- Actionable Fix: Unbolt the banjo fitting, discard the old copper or aluminum washers, clean the seating surfaces with brake cleaner, and install new manufacturer-specified crush washers torqued to exact factory specifications.
- Root Cause: Spring-type hose clamps losing tension on aging rubber return lines.
- Actionable Fix: Trim a quarter-inch off the end of the deteriorated rubber hose to expose fresh, un-stretched material, slide the line back onto the nipple, and replace the factory spring clamp with a heavy-duty worm-gear or constant-tension screw clamp.
- Root Cause: Internal steering rack seal degradation due to particulate contamination.
- Actionable Fix: Completely flush the power steering hydraulic system with fresh fluid to remove suspended metallic debris, then replace the rack and pinion unit if mechanical scoring prevents new seals from holding pressure.
Frequently Asked Questions
Can I use a stop-leak additive to fix a power steering leak?
Power steering stop-leak additives contain chemical plasticizers designed to swell and soften hardened rubber seals temporarily. While this can provide a short-term band-aid for minor seepage in older steering gears or pumps, it is not a permanent engineering repair and can clog internal control valves or damage modern electronic power-assisted systems.
What type of fluid should I use if my power steering is leaking?
Always consult your vehicle owner manual to verify the precise fluid standard required. Mixing automatic transmission fluid (ATF) into a system engineered for specialized CHF synthetic mineral oil will cause internal seal decomposition, catastrophic pump failure, and complete loss of hydraulic assist.
How do I distinguish between engine oil and power steering fluid?
Engine oil is typically amber to dark brown or black depending on mileage, whereas power steering fluid is often clear, light amber, or bright red if it shares specifications with Dexron ATF. Placing a clean white paper towel under the leak drop helps clarify the true hue and viscosity of the fluid.
Is it safe to drive with a power steering fluid leak?
Driving with a minor leak is temporarily permissible provided you monitor and maintain the fluid reservoir level regularly to prevent the pump from running dry. However, a severe leak that empties the reservoir in minutes will instantly burn out the power steering pump and make the steering wheel exceptionally heavy and dangerous to maneuver at low speeds.
Perform a thorough visual inspection of your steering lines and pump today, and replace compromised components immediately to maintain safe, responsive vehicle control.
