How To Figure Door Swing: The Complete Architectural & Installation Guide

Determining door swing correctly prevents costly framing errors, structural interference, and clearance violations during both new construction and retrofitting. This guide outlines the precise architectural standards used by builders and hardware specialists to identify handing, opening direction, and swing angles for residential and commercial openings.

Pre-Operation & Equipment Checklist

Accurately figuring a door swing requires an understanding of architectural terminology and precise physical verification at the rough opening or finished jamb. Misidentifying a swing direction leads to incorrect pre-hung unit fabrication, improper hinge mortising, and hardware misalignment that can stall a project.

• Essential gear, tools, and materials: A standard 25-foot steel tape measure, a magnetic spirit level, a notepad for recording handing schedules, and painters tape to simulate operational arcs on subfloors if needed.
• Mandatory prerequisite knowledge and standards: Familiarity with standard residential swing conventions (ANSI/BHMA standards), egress clearance requirements under the International Residential Code (IRC), and the difference between outswing, inswing, left-handed, and right-handed configurations.
• Estimated budget and duration benchmarks: Zero financial cost for tools if standard measuring equipment is already available; approximately 5 to 10 minutes of direct physical verification per opening.

Step-by-Step Architectural Door Swing Identification

Step 1: Stand on the Exterior or Hallway Side

Position yourself facing the door from the correct reference side. For exterior doors, always stand outside the building looking inward. For interior doors, stand on the hallway, corridor, or room-entry side looking into the room the door services.

Warning: Standing on the wrong side of the opening reverses the perceived handing and will result in ordering a door that swings into the room incorrectly or exposes exterior hinges to security vulnerabilities.

Step 2: Locate the Hinge Side

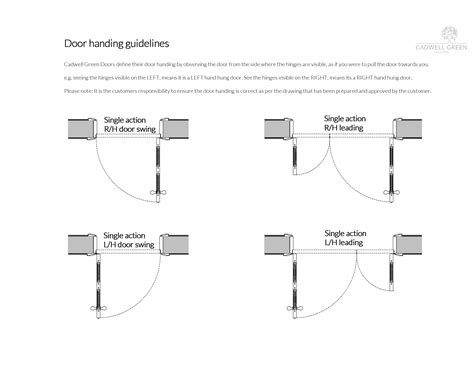

Observe which vertical jamb holds the hinges. If the hinges are attached to the left side of the frame from your reference vantage point, you are dealing with a left-hand configuration. If the hinges are anchored to the right side of the frame, it is a right-hand configuration.

Pro-Tip: Remember the golden rule of thumb for locating hinges: look for the visible barrel of the hinges from your chosen viewing side. If you see the hinge knuckles, the door swings toward you. If you only see a flat door edge, the door swings away from you.

Step 3: Determine the Direction of Travel

Decide whether the door panel swings toward you (inswing relative to your stance) or away from you (outswing). Push the door open mentally or physically in the direction it is designed to travel.

1. If the door pulls open toward your body, it is an inswing door.
2. If the door pushes open away from your body into the space, it is an outswing door.

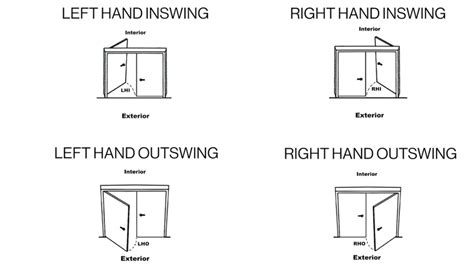

3. Combine the hinge location and the travel direction to establish the formal swing notation (e.g., Left-Hand Inswing or Right-Hand Outswing).

Step 4: Measure the Swing Arc and Clearance

Open the door to its maximum intended travel angle (typically 90 degrees or 180 degrees) and measure the radius from the pivot point of the hinge to the outermost edge of the door slab. Check for potential obstructions such as baseboard heaters, adjacent walls, plumbing fixtures, or furniture placement that might restrict full operation.

Door Handing and Swing Technical Specifications Matrix

Common Site Failures and Field Fixes

• Failure: Ordering a Pre-Hung Door with Reversed Handing


  • Root Cause: Viewing the door from the interior side during framing layout instead of following the exterior/hallway standard reference rule.
  • Actionable Fix: Check if the pre-hung unit features a reversible universal jamb. If non-reversible, remove the casing, detach the split jambs, and reassemble the frame components if the header allows symmetry, or reorder the correct slab and re-mortise the hinges.
• Failure: Door Swing Bumping into Adjacent Vanity or Toilet


  • Root Cause: Failing to map the 180-degree or 90-degree swing arc against bathroom fixtures during the rough-in framing phase.
  • Actionable Fix: Convert the opening to a pocket door system, change the swing from inswing to outswing, or install a restricted-degree heavy-duty door stop to limit the operational arc.
• Failure: Exterior Outswing Door Hinge Pins Exposed to Intrusion


  • Root Cause: Installing an outswing exterior configuration without specifying security hardware.
  • Actionable Fix: Replace standard hinge pins with security hinges featuring non-removable set screws (NRP pins) or integral security studs that lock the door leaf to the frame even if the exterior pin is cut or removed.

Frequently Asked Questions

How do I figure door swing if the door slab has already been removed?

Locate the mortise pockets or pre-bored latch holes in the jamb and door frame. The deeper hinge gains or pre-cut hinge mortises on the jamb indicate the hinge side, while the strike plate routing on the opposite jamb reveals where the latch engages, allowing you to deduce the correct handing by visualizing the pivot point.

What is the difference between a reverse bevel door and a standard door?

A reverse bevel door refers to an exterior door that swings outward rather than inward. This terminology is frequently used in commercial and high-wind residential building codes to prevent rain infiltration and to satisfy emergency egress mandates.

Can a standard interior door swing be changed after installation?

Yes, but it requires substantial carpentry work. You must remove the door from the jamb, chisel out new hinge mortises on the opposite edge and jamb, fill the old mortises with matching wood dutchmen, patch and re-bore the latch-set hole, and reinstall the hardware.

Why do building codes regulate outswing versus inswing exterior doors?

Building codes generally mandate outswing configurations for commercial public egress buildings to prevent panic crowds from crushing against a door that pulls inward. Conversely, many residential codes prefer inswing exterior doors to protect exterior-mounted hinges from weather corrosion and forced entry.

Master Your Construction and Renovation Layouts

Mastering door swing calculations guarantees seamless hardware installation, code compliance, and structural integrity for every room in your architectural plan. Explore our professional-grade estimating guides to streamline your next building project from rough framing to final trim.
