How To Eliminate Microphone Feedback: The Definitive Audio Engineering Guide

Microphone feedback is an acoustic loop created when a sound signal from a loudspeaker is picked up by a microphone, amplified, and sent back out through the speaker indefinitely. Eliminating this disruptive squeal requires a systematic approach combining physical placement adjustments, strategic equalization, and precise gain structuring to maintain maximum gain before feedback.

Pre-Operation & Equipment Checklist

Effective feedback elimination begins long before any audio hits the main mixing console. Understanding the physical relationship between transducers and acoustic environments prevents loop scenarios before they start.

• Essential Gear & Tools: Professional cardioid or supercardioid dynamic/condenser microphones, multi-band parametric equalizer or digital signal processor (DSP), acoustic RTA (Real-Time Analyzer) microphone, closed-back monitoring headphones, and heavy-duty microphone stands.
• Mandatory Prerequisite Standards: Knowledge of inverse square law, directional polar patterns, phase cancellation principles, and unity gain staging across the mixer preamp channels.
• Estimated Setup Benchmarks: 30 to 45 minutes for systematic system ringing out and acoustic optimization in a medium-sized venue.

Step-by-Step Acoustic Remediation and System Calibration

Step 1: Optimize Spatial Placement and Microphone Distance

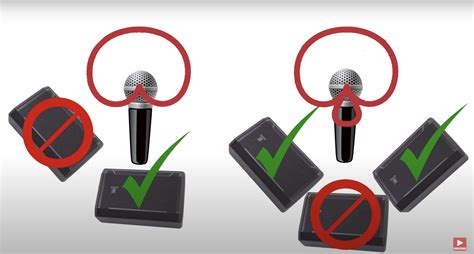

The primary defense against feedback is physical distance management and directional control. Position all loudspeakers downstage of the performance microphone plane so that the active null points of the microphones face directly toward the sound sources.

1. Ensure directional microphones, such as cardioid, supercardioid, or hypercardioid models, are pointed away from floor monitors and main house speakers.
2. Utilize the inverse square law to your advantage by moving the vocalist closer to the microphone. Decreasing the distance from the sound source to the microphone by half increases the direct voice signal by 6 dB, allowing you to lower the overall monitor or house gain accordingly.
3. Keep stage monitors within the narrowest rejection angle of directional microphones, typically 180 degrees off-axis for cardioid capsules and 125 degrees off-axis for supercardioid capsules.

Pro-Tip: If using handheld wireless systems, never cup the grille of the microphone with your hand. Capping alters the acoustic cavity of the capsule, disrupting the phase cancellation ports and turning a directional microphone into an omnidirectional receiver prone to instant feedback.

Step 2: Set Proper Gain Structure and Preamp Calibration

Improper gain staging forces audio engineers to push faders into unsafe zones, drastically reducing headroom and triggering feedback loops.

1. Set the input trim (gain) on the mixing console with the performer delivering the material at their maximum expected volume. The signal should average around 0 VU or peak consistently between -18 dBFS and -12 dBFS on digital meters.
2. Keep channel faders near the unity gain marker (0 dB) rather than running them excessively low with high preamp gain, or vice versa, to maintain optimal signal-to-noise ratios.
3. Mute unused microphones on stage automatically using an automixer or manually when not in use. Each open microphone on an active stage cuts the overall system headroom before feedback by 3 dB according to the acoustics logarithmic summation rule.

Step 3: Ring Out the Room Using Parametric Equalization

Systematic ring-out is the process of intentionally finding and taming room-resonant frequencies that naturally feed back.

1. Slowly raise the master fader or monitor send level until the sound system begins to ring or whistle at its resonant frequency.
2. Identify the exact offending frequency using a Real-Time Analyzer (RTA) or by sweeping a narrow-bandwidth parametric equalizer cut across the spectrum until the feedback stops.
3. Apply a narrow notch filter (high Q factor of 5 to 10) and attenuate the specific frequency by 3 dB to 6 dB. Repeat this process no more than three to four times to avoid degrading the natural tonal balance of the vocal or instrument.

Warning: Avoid applying wide-band shelving cuts to eliminate feedback. Over-equalizing broad frequency ranges strips the audio mix of warmth and intelligibility, forcing performers to ask for more volume, which re-introduces feedback.

Step 4: Implement Advanced DSP and Feedback Suppressors

Modern digital signal processors offer automated tools that track and eliminate feedback in real time without manual operator intervention.

1. Insert an adaptive digital feedback suppressor (DFS) into the monitor or master output insert points. These algorithms detect narrow-band, persistent tones that match feedback characteristics and instantly deploy floating notch filters.
2. Set the processor to a balanced mode rather than aggressive mode to prevent artifacts or phase smearing on transient-heavy acoustic instruments and vocals.
3. High-pass filter (HPF) every microphone channel aggressively. Roll off all unnecessary low-end frequencies below 80 Hz to 120 Hz on vocals and speech channels, as sub-bass rumble consumes valuable headroom and feeds back easily through stage floors.

Acoustic Control Methods and Gear Comparison

Common Site Failures and Field Fixes

Even with rigorous preparation, acoustic anomalies and operator errors can trigger sudden feedback during a live performance.

• Root Cause: A performer steps directly in front of the main house PA loudspeaker while singing.


  • Actionable Fix: Establish clear boundary lines on stage using gaffer tape or physical risers to keep talent behind the speaker plane. If monitors are the issue, reposition the wedge speakers so their high-frequency horns point directly at the performer's ears rather than the chest or microphone capsule.
• Root Cause: Stage floor vibrations travel up microphone stands and excite capsule elements, causing low-frequency rumble feedback.


  • Actionable Fix: Replace rigid mic clips with shock-mount suspensions, deploy heavy cast-iron base stands, and place isolation pads beneath drum risers and guitar amplifier cabinets.
• Root Cause: Excessive stage volume bleeding into open boundary microphones (such as podium mics or choir mics).


  • Actionable Fix: Implement strict gating thresholds, utilize automatic microphone mixers (AMM) to attenuate inactive channels, or switch to shorter throw, directional boundary elements placed closer to the source.

Frequently Asked Questions

Why does my microphone feedback only when I get close to the speakers?

Proximity to loudspeakers decreases the physical path length between the sound source and the microphone receiver, amplifying the loop gain. When the loop gain equals or exceeds unity ($1$), the system breaks into oscillation, resulting in audible feedback. Maintaining safe distance and keeping speakers downstage prevents this.

Can wireless microphones cause more feedback than wired ones?

Wireless systems do not inherently cause more feedback than wired systems, but latency in digital wireless transmission or improper gain structure on the wireless receiver output can compromise headroom. Always match the wireless receiver output level to the console's expected line-level input specs.

How does the inverse square law affect microphone feedback?

The inverse square law states that sound pressure level decreases by 6 dB every time the distance from the acoustic source is doubled. Moving a microphone closer to the sound source increases the direct signal level relative to ambient stage bleed, allowing you to run lower overall amplification levels and avoid feedback.

Are automatic feedback suppressors better than manual graphic EQs?

Automatic feedback suppressors offer real-time protection against changing acoustic environments, making them ideal for dynamic theatrical or mobile events. Manual parametric or graphic EQs provide finer artistic control over tonal quality, making them superior for permanent music venues where the acoustic space is well-understood.

What is the role of a high-pass filter in stopping feedback?

A high-pass filter (HPF) blocks low-frequency rumble, stage vibrations, and HVAC hums that consume valuable headroom on the mixing console. By cutting frequencies below 100 Hz on non-bass sources, the overall energy in the signal chain drops, preventing low-end modal feedback loops in enclosed rooms.

Master Your Live Sound Environment Today

Eliminating microphone feedback requires disciplined stage geometry, precise gain staging, and targeted equalization rather than relying solely on automated signal processors. Implement these acoustic engineering principles during your next soundcheck to achieve pristine clarity, maximum gain before feedback, and a flawless live audio experience.
