Professional Guide To Dyeing Automotive Carpet: Techniques For A Factory Restoration

Dyeing automotive carpet involves deep-cleaning fibers to a pH-neutral state, applying specialized water-based or solvent pigments, and mechanically agitating the solution into the pile. Achieving a professional-grade finish requires maintaining a consistent saturation level and allowing for a minimum 24-hour curing period to ensure colorfastness and prevent pigment transfer to footwear or upholstery.

Pre-Operation Requirements and Material Selection

Before beginning the dyeing process, you must identify the composition of your vehicle's carpet. Most modern automotive carpets are manufactured from either nylon or polypropylene. Nylon is highly receptive to acid-based dyes and liquid pigments, whereas polypropylene is essentially a plastic fiber that does not absorb liquids, requiring a specialized "fabric paint" or resin-based colorant that bonds to the surface of the fiber. Neglecting this distinction often leads to total project failure, where the dye remains on the surface and eventually rubs off onto the skin or clothing.

Essential Equipment and Materials Checklist

• Cleaning Apparatus: High-pressure steam cleaner or a hot water extractor, stiff-bristle nylon scrub brushes, and a high-pH degreaser followed by a pH-neutralizing rinse.

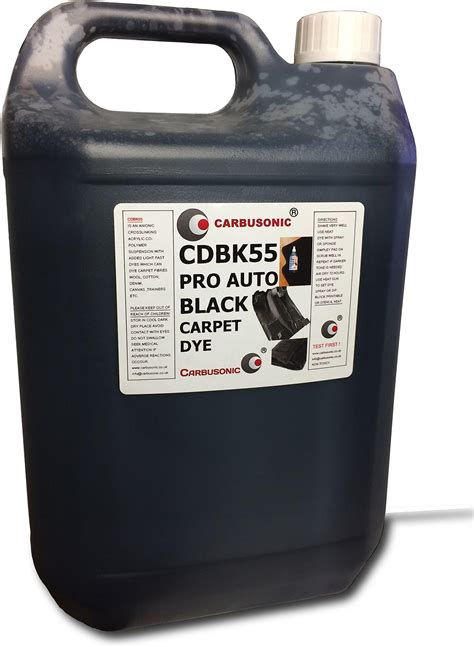

• Colorant Selection: Automotive-specific carpet dye (liquid concentrate for spray guns or high-quality aerosol for small areas), such as those produced by SEM, VHT, or professional upholstery suppliers.
• Protective Gear: Nitrile gloves, a NIOSH-approved respirator (especially if using solvent-based aerosols), and wrap-around safety goggles.
• Masking Supplies: Automotive-grade masking tape (green or blue), plastic drop cloths, and heavy-duty paper for protecting seats and dashboard components.
• Environmental Benchmarks: An ambient temperature between 65°F and 85°F (18°C–29°C) with humidity levels below 50% to ensure proper evaporation and bonding.

Executing the Restoration: A Phased Approach to Carpet Re-Coloring

The success of a carpet dye job is 90% preparation and 10% application. If the fibers contain any residual silicone from "new car scent" sprays, oils from foot traffic, or alkaline soap residues, the dye will fail to penetrate the molecular structure of the carpet pile.

Step 1: Decontamination and Fiber Stripping

The carpet must be surgically clean. Begin by vacuuming the interior twice—once in a north-south pattern and once in an east-west pattern—to remove all encapsulated grit. Apply a heavy-duty interior degreaser to any visible oil or grease stains. Use a steam cleaner to lift these contaminants to the surface and extract them.

Once the visible stains are gone, the entire carpet must be "stripped" of previous cleaners. Use a solution of white vinegar and water (1:1 ratio) to neutralize the pH of the carpet. This opens the "pores" of nylon fibers, making them more receptive to new pigment. The carpet must be 100% dry before proceeding to the next step; any trapped moisture will dilute the dye and cause splotchiness.

Step 2: Interior Masking and Component Protection

Dye is permanent and unforgiving. If you are not removing the carpet from the vehicle, you must mask every square inch of the interior that you do not want dyed. Remove the seats if possible; this provides access to the center hump and ensures a uniform color across the entire floor pan. Use plastic sheeting to cover the lower dashboard, door panels, and center console. Secure the edges with high-tack masking tape, tucking it roughly 1/4 inch under the plastic trim pieces to ensure no "halo" of the original color remains visible at the edges.

Step 3: Preparation of the Dye Solution

If using a liquid concentrate, mix the dye according to the manufacturer's specifications. Professional results often require a 1:1 or 1:4 dilution ratio depending on the desired color depth.

Pro-Tip: Always test the dye on a concealed area, such as the carpet located directly under the rear seat bench, to verify the color match and check for fiber compatibility.

If you are using aerosol cans, place the cans in a bucket of warm water for 10 minutes. This increases the internal pressure and ensures a finer, more consistent atomization of the spray, which prevents the "spitting" of large droplets that cause dark spots.

Step 4: Primary Application and Cross-Hatch Patterns

Apply the dye in thin, even coats. Avoid the temptation to achieve full opacity in the first pass. Hold the spray nozzle approximately 6 to 8 inches from the surface. Use a "cross-hatch" technique: spray the entire carpet in horizontal rows, followed immediately by vertical rows. This ensures that the dye reaches both sides of the carpet fibers.

Warning: Do not over-saturate the carpet backing. If the liquid dye reaches the jute or foam padding beneath the carpet, it can lead to mold growth and a permanent "chemical smell" inside the cabin.

Step 5: Mechanical Agitation and Fiber Alignment

Immediately after spraying a section (while the dye is still wet), use a stiff-bristle nylon brush to scrub the dye into the pile. This is the most critical step for a factory-look finish. Scrubbing breaks the surface tension of the liquid and forces the pigment down to the base of each fiber. After scrubbing, use the brush to "comb" the fibers in one uniform direction. This prevents the carpet from drying with a "matted" or "crusty" texture.

Step 6: Curing and Final Inspection

Allow the carpet to dry for at least 4 to 6 hours before applying a second coat if needed. Once the desired color depth is achieved, the carpet must cure for 24 to 48 hours in a well-ventilated area. After the carpet is dry to the touch, take a clean, white microfiber towel and briskly rub the surface. If any color transfers to the towel, the carpet needs to be lightly misted with water and blotted to remove excess surface pigment that failed to bond.

Comparative Metrics for Carpet Coloring Agents

Selecting the correct medium is vital for durability. The following table compares the primary methods used in the automotive restoration industry.

Common Restoration Failures and Remedial Actions

Even with meticulous planning, chemical variables can cause unexpected results. Understanding how to pivot when a failure occurs is the mark of a professional restorer.

• The "Crunchy" or Stiff Carpet Texture




  • Root Cause: This is caused by an over-application of pigment or using a resin-based paint on a high-pile carpet without sufficient brushing. The dye has dried on top of the fibers, effectively "gluing" them together.
  • Actionable Fix: Use a steam cleaner to lightly re-hydrate the surface resins. While the carpet is warm and damp, vigorously brush the fibers with a stainless steel upholstery rake or a very stiff nylon brush to break the resin bonds. Vacuum the carpet immediately afterward to lift the separated particles.

• Uneven Pigmentation and Blotching




  • Root Cause: This typically occurs due to "wicking," where deeper stains in the carpet backing rise to the surface as the dye dries, or due to inconsistent spray overlap.
  • Actionable Fix: Deep-clean the splotchy area with a pH-neutral cleaner and allow it to dry completely. Re-apply a light "mist" coat of dye over the area, extending the spray 6 inches past the edges of the blotch to "feather" the color into the surrounding carpet.

• Color Transfer (Dye Rubbing Off)




  • Root Cause: The dye failed to bond with the fiber, likely because the carpet was not properly stripped of factory Scotchgard or silicone-based protectors.
  • Actionable Fix: You must remove the excess pigment by blotting with a 50/50 mix of isopropyl alcohol and water. Once the excess is removed, apply a professional-grade "Dye Fixative" or "Color Setter" spray to lock the remaining pigment into the fibers.

Frequently Asked Questions

Can I dye my carpet a lighter color than it currently is?

No, automotive carpet dyeing is a subtractive/additive process that can only go darker or change the hue of a similar-tone carpet. To go from black to tan, you would have to use a heavy "color coating" or "fabric paint," which will significantly harden the carpet texture and is generally not recommended for high-end restorations.

How long does automotive carpet dye typically last?

When applied correctly to nylon fibers using a high-quality liquid pigment, the dye should last for the remaining life of the vehicle. UV exposure is the primary enemy of carpet dye; using ceramic window tint or high-quality floor mats will significantly extend the color's vibrancy.

Is it better to use a spray gun or aerosol cans?

A professional HVLP (High Volume Low Pressure) spray gun is superior because it allows you to control the dilution of the dye and the air pressure. This results in a much finer mist that penetrates the fibers without soaking the backing. Aerosols are acceptable for small repairs or floor mats but often lack the volume needed for a full interior.

Does the dye have a strong odor after it dries?

Water-based dyes typically lose their scent within 24 hours of drying. Solvent-based aerosols have a much stronger "paint-like" odor that may persist for 3 to 5 days. Keeping the windows cracked and using an ozone generator for one hour after the carpet is fully dry can eliminate these residual fumes.

Elevate Your Automotive Restoration Projects

Mastering the art of carpet dyeing allows you to breathe new life into vintage interiors and increase a vehicle's resale value. For those seeking the highest quality results, always source professional-grade pigments and dedicate ample time to the cleaning and neutralization phase.
