How To Draw A Helix: The Definitive Mathematical And Artistic Guide
Drawing a precise helix requires a clear understanding of its geometric properties, specifically the relationship between pitch, radius, and angular rotation. Whether constructing a three-dimensional model by hand or executing a digital rendering, mastering the underlying cylindrical coordinates ensures structural accuracy without distortions.
Geometric Fundamentals and Tool Preparation
A helix is a three-dimensional curve that turns around a central axis at a constant or variable distance while simultaneously moving parallel to that axis. This movement creates a continuous spiral path, identical to the threads of a screw or the structure of deoxyribonucleic acid. Accurate execution depends on establishing structural baselines before applying final line work.
- Essential Drawing Instruments: Mechanical pencils (0.3mm or 0.5mm for sharp guidelines), architectural or engineer's scale ruler, a drafting compass, a heavy-duty eraser, and artist-grade smooth bristol board or drafting vellum.
- Prerequisite Geometric Standards: Mastery of cylindrical perspective, equidistant point-plotting along vertical axes, and the ability to construct smooth sinusoidal wave transitions.
- Project Scope and Time Frame: Completing a precise, hand-drawn isometric helix typically requires 45 to 90 minutes of focused drafting, depending on the complexity of the pitch and revolutions.
Step-by-Step Construction Workflow
Step 1: Establish the Containing Cylinder and Central Axis
Begin by drawing a vertical centerline representing the longitudinal axis of your helix. Construct an isometric or orthographic bounding box (a cylinder) that defines the total height and diameter of your intended spiral. The width of this cylinder determines the total outer diameter of the helix, while its height establishes the overall vertical span.
Pro-Tip: Lightly sketch construction lines using a 2H or 4H pencil so they can be easily erased or obscured once the final form is established.
Step 2: Divide the Pitch and Vertical Increments
Calculate the pitch, which is the vertical distance the helix covers in one complete 360-degree rotation. Divide the height of your cylinder into equal vertical intervals based on the number of desired revolutions. For high precision, divide each single rotation into at least eight, preferably twelve, equal angular segments along the vertical axis. Mark these intersecting planes horizontally across the face of the cylinder.
Step 3: Plot the Radial Intersection Points
Map out the horizontal movement of the helix by dividing the circular cross-section of the cylinder into matching angular increments (e.g., every 30 or 45 degrees). Project these radial points outward to intersect with your horizontal pitch lines. The intersection of a specific vertical height line and its corresponding radial depth line marks a precise coordinate point through which the helical curve must pass.
Step 4: Sketch the Sinusoidal Wave Path
Connect the plotted coordinate points using a smooth, continuous freehand line or a flexible french curve. Pay close attention to the visual weight of the line: the segments of the helix that pass on the front side of the cylinder should be drawn with dark, bold lines to indicate proximity, while the segments passing behind the cylinder must be rendered as dashed lines or faded out entirely to maintain correct three-dimensional depth.
Warning: Avoid sharp, angular corners at the turning points of the front and back transitions. A true helix features a smooth, continuous sinusoidal transition without flat peaks.

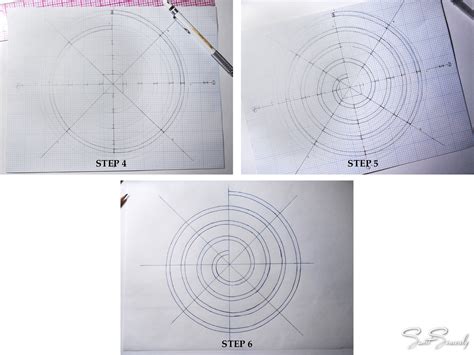

How to Draw the Golden Spiral: 13 Steps (with Pictures) - wikiHow
Technical Parameters and Method Comparison
| Method | Best Used For | Precision Level | Time Investment | Primary Limitation |
|---|---|---|---|---|
| Manual Point-Plotting | Conceptual sketching, art education | Moderate | High (45-90 mins) | Prone to human plotting errors |
| Orthographic Projection | Technical drawings, engineering | High | Moderate (30-60 mins) | Requires strict multi-view setup |
| Vector/CAD Modeling | Digital rendering, manufacturing | Absolute | Low (5-15 mins) | Dependent on software proficiency |
| Template-Assisted | Rapid illustration, jewelry design | Moderate-High | Low (10-20 mins) | Fixed diameter and pitch constraints |
Common Drafting Failures and Field Fixes
- Root Cause: The pitch appears uneven, with tighter coils at the top and looser coils at the bottom.
- Actionable Fix: Use a mechanical scale ruler to measure and tick off equidistant vertical increments before drawing the horizontal guidelines. Never rely on visual estimation for pitch distribution.
- Root Cause: The front and back curves look flattened, resembling a series of stacked ovals rather than a continuous thread.
- Actionable Fix: Increase the number of angular subdivisions from four quadrants to eight or twelve per rotation. More coordinate points eliminate angular transitions and enforce a smooth organic curve.
- Root Cause: The perspective looks inverted, making the object appear as a funnel or an hourglass instead of a straight cylinder.
- Actionable Fix: Re-verify that the bounding side boundaries of your containing cylinder are completely parallel. Any inward or outward taper of the guide lines distorts the cylindrical perspective.
Frequently Asked Questions
What is the difference between a helix and a spiral?
A helix is a three-dimensional curve winding around a cylinder at a constant distance from its axis, maintaining a fixed radius. A spiral is a two-dimensional curve that originates from a central point and continuously moves farther away as it revolves.
How do I make the helix look three-dimensional on a flat page?
Creating a convincing 3D effect relies on proper line weighting and occlusion. Darken the foreground strands of the curve where they cross in front of the central axis, and lighten, fade, or erase the background strands passing behind the structure.
Can I use a compass to draw a helix?
A standard compass cannot draw a complete helix because a compass is restricted to two-dimensional circles. However, you can use a compass to draw the circular top and bottom base views of the containing cylinder to map out your initial radial projection points.
What causes a hand-drawn helix to look lopsided?
Lopsided results typically stem from asymmetrical placement of the horizontal ellipses or inconsistent angular spacing when dividing the circular base. Using a protractor to measure precise radial degrees eliminates this imbalance.
Mastering the geometry of a helix elevates your overall technical illustration capabilities and provides a solid foundation for complex organic and mechanical modeling. Apply these systematic drafting principles to your next design project to achieve professional, mathematically sound results.
