How To Dimension Chamfer: Engineering Best Practices And ASME Y14.5 Standards
Proper dimensioning of a chamfer requires clear, unambiguous definition of the linear distance and the angular inclination relative to the part surface. By adhering to ASME Y14.5 guidelines, engineers ensure that machine shops can accurately interpret design intent, minimizing manufacturing errors and inspection rejects.
Technical Fundamentals for Precision Chamfer Specification
Before applying dimensions to a technical drawing, one must identify the functional intent of the chamfer. Chamfers are primarily utilized to remove sharp edges, facilitate assembly of mating parts, or provide clearance for weld beads. Misrepresenting the geometric definition often leads to over-constrained dimensions or ambiguity in inspection. Practitioners should ensure their CAD software settings are aligned with either ASME Y14.5 (the North American standard) or ISO standards, as notation conventions differ significantly between these governing bodies.
- Essential Documentation: Current project prints, ASME Y14.5-2018 GD&T Handbook.
- Required Software Tools: 3D CAD modeling software with drafting modules (e.g., SolidWorks, AutoCAD, Creo).
- Proficiency Requirements: Fundamental understanding of orthogonal projection, geometric tolerancing, and basic trigonometric calculations.
- Standard Measurement Precision: Expect standard tolerances to be ±0.01 inches or ±0.25 mm unless otherwise specified by tight-tolerance assembly requirements.
Step-by-Step Procedure for Accurate Chamfer Dimensioning
Step 1: Selecting the Appropriate Notation Style
The method chosen to dimension a chamfer must reflect the manufacturing method. For standard 45-degree chamfers, use a concise linear callout. For non-standard angles, provide both the leg length and the included angle. When dimensioning manually or within a CAD drafting environment, avoid placing dimensions on hidden lines whenever possible, as this complicates the work of the CNC machinist.
Step 2: Defining the Linear and Angular Parameters

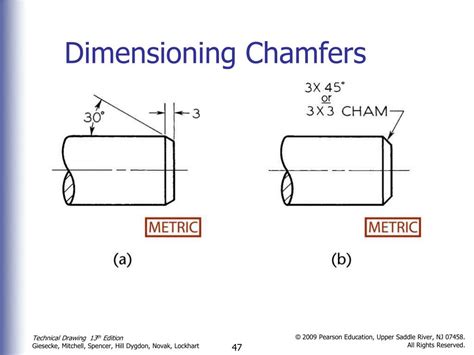

For a 45-degree chamfer, use the X notation format, such as 2mm x 45 degrees. This specifies that the distance from the edge is 2mm along both intersecting surfaces. If the chamfer is non-equilateral, you must dimension the two legs explicitly or provide one leg length and the angle from the adjacent surface.
Pro-Tip: Always verify that your angular dimension originates from a clearly defined reference surface to avoid stacking tolerances that could shift the chamfer location during high-volume production.
Step 3: Application of Tolerance and Surface Finish
Chamfers are often subject to deburring processes, which can affect the final geometry. Specify the tolerance immediately following the dimension. If the chamfer serves as a lead-in for a press-fit assembly, apply a tighter tolerance to ensure the entry angle does not interfere with the interference fit.
Warning: Avoid dimensioning chamfers on surfaces where the edge is a result of a sharp corner intersection in a casting or forging, as these often require a radius rather than a flat chamfer for structural integrity.
Step 4: Verification of Drawing Clarity
Review the drawing for dimension overlap. Ensure that the leader lines for the chamfer do not cross through other geometry or text, which can lead to misinterpretation on the shop floor. If multiple identical chamfers exist on a single component, use a single callout with a quantity multiplier (e.g., 4X 1mm x 45 degrees) to reduce drawing clutter.
How To Chamfer On Onshape at Michael Mock blog
Technical Parameters and Geometric Comparison Table
| Chamfer Type | Specification Style | Primary Usage Case | Precision Priority |
|---|---|---|---|
| Standard 45-Degree | Distance x Angle | General edge break/deburring | Low |
| Unequal Leg | Leg A x Leg B | Clearance for weld/fastener | Medium |
| Large Bevel | Distance x Angle | Structural load distribution | High |
| Internal/Bore | Diameter x Angle | Bearing or shaft insertion | High |
Addressing Common Manufacturing and Documentation Failures
- Root Cause: Ambiguous Angular Reference. If a drawing fails to specify whether an angle is measured from the axis of a cylinder or the face of a part, the machinist may machine the incorrect angle.
- Actionable Fix: Always use a clear leader line that terminates at the chamfer surface, and ensure the reference plane for the angle is explicitly illustrated or noted.
- Root Cause: Over-Dimensioning. Providing both leg lengths and an angle for a 45-degree chamfer creates a redundant dimension, which is considered bad practice under ASME standards.
- Actionable Fix: Use only the X notation for 45-degree chamfers; delete the extra angular or leg dimensions to maintain a clean, singular design intent.
- Root Cause: Failure to Account for Deburring. The drawing specifies a sharp, clean chamfer, but the manufacturing process leaves a radius due to manual filing.
- Actionable Fix: Clearly define the chamfer requirement as a "break edge" or "chamfer" and, if critical, specify a maximum radius or flatness profile on the chamfered surface.
Frequently Asked Questions
What is the difference between dimensioning a chamfer and a bevel?
A chamfer typically refers to a small, functional edge break or lead-in, usually specified at 45 degrees. A bevel generally refers to a larger, structural slope designed for mating parts or weld preparation, and it is usually dimensioned by the depth and the angle relative to the surface normal.
Should I dimension a chamfer using the leg length or the face distance?
You should dimension the leg length (the distance from the theoretical sharp corner). This is the standard in almost all engineering environments because it relates directly to the material removal process on a lathe or milling machine.
Is it acceptable to use a leader line for chamfers?
Yes, leader lines are the preferred method for dimensioning chamfers on circular features or small edges where placing a dimension between extension lines would be illegible. Ensure the leader arrow points directly to the chamfered surface.
How do I dimension a chamfer on an internal hole?
Dimension the diameter of the chamfer at the outer edge of the part, followed by the angle. For example, 10mm DIA X 45 degrees clearly communicates to the machinist the target size of the bore opening at the surface plane.
