How To Dim LED Lights Without A Dimmer Switch: Expert Alternative Methods

Dimming LED lights without a dedicated wall dimmer requires either hardware-level modification of the light source, the use of external power-limiting components, or the implementation of smart lighting integration. Achieving successful dimming depends entirely on the driver architecture of the LED bulb, specifically whether the light is rated as dimmable or non-dimmable, as attempting to restrict current to non-dimmable LEDs can result in rapid hardware failure or hazardous overheating.

Assessing Your Lighting Infrastructure and Compatibility

Before attempting to modify your illumination levels, you must identify the technical limitations of your existing LED fixtures. The majority of residential LED bulbs rely on an internal constant-current driver that is designed for a specific voltage range. If you introduce a power-limiting device to a bulb not designed to handle fluctuating voltage, you risk flickering, audible humming (electromagnetic noise), or permanent damage to the onboard capacitors.

Essential Checklist for Dimming Procedures

• Verified Hardware Compatibility: Ensure every bulb in the fixture is labeled as "Dimmable" on the manufacturer’s packaging. Non-dimmable LEDs contain simple bridge rectifiers that lack the phase-cutting logic required for dimming.
• Measurement Tools: A digital multimeter is essential for verifying circuit continuity and testing residual voltage if you opt for external resistance methods.
• Electrical Safety Gear: Always utilize insulated tools and, if working near high-voltage junctions, wear dielectric-rated gloves.
• Time and Cost Benchmarks: Expect to spend between 30 and 60 minutes for basic modifications, with material costs ranging from 15 to 50 dollars depending on whether you choose physical filters, inline controllers, or smart integration.
• System Knowledge: Understand the difference between Pulse Width Modulation (PWM) and Phase-Cut dimming, as most DIY hacks fail to account for the carrier frequency of the LED driver.

Procedural Workflow for External Brightness Reduction

If you cannot install a wall-mounted dimmer, you must address the brightness at the fixture or the bulb interface itself. These methods focus on physically attenuating the light or introducing an intermediate controller.

Step 1: Implementing Inline LED Controllers

The most effective way to dim non-hardwired lights is to insert a standalone RF or Bluetooth LED controller between the power source and the light. These small modules utilize Pulse Width Modulation to switch the power on and off at a frequency higher than the human eye can perceive, effectively lowering the perceived lumen output. Simply splice the controller into the positive lead of your LED circuit, pair it with the provided remote, and adjust the duty cycle.

Step 2: Applying Optical Density Filters

If the light fixture is a decorative pendant or a spotlight where the bulb is visible, neutral density (ND) films—commonly used in professional photography—can be applied directly to the lens. By reducing the luminous flux through physical obstruction, you avoid tampering with the electrical circuit entirely. Select a film with an optical density rating of 0.3 (50 percent light reduction) or 0.6 (25 percent light reduction) for natural, consistent dimming.

Pro-Tip: Ensure the ND film is heat-resistant. Many standard acetate films will degrade or emit toxic fumes if applied directly to the surface of a high-lumen LED bulb that runs hot.

Step 3: Integrating Smart Bulbs as a Retrofit

The most reliable, non-invasive method for dimming is to replace existing dumb LEDs with smart-enabled bulbs. These bulbs contain integrated dimming circuitry that responds to mobile application commands or voice assistants. By utilizing the Zigbee or Wi-Fi protocol, you can bypass the need for a physical dimmer switch entirely while gaining granular control over brightness levels and color temperature.

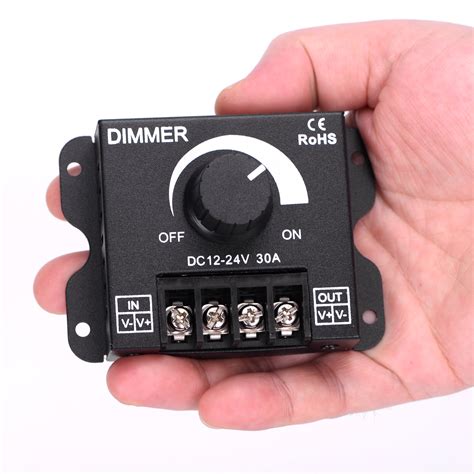

Step 4: Utilizing External Potentiometers for DC Circuits

For low-voltage LED systems, such as 12V or 24V under-cabinet strips, you can install a manual rotary potentiometer in the DC line. This acts as a variable resistor. While this is inefficient for high-power AC mains lighting, it is the industry standard for low-voltage setups. Ensure the wattage rating of your potentiometer exceeds the total draw of your LED strip by at least 20 percent to prevent heat accumulation in the component.

Technical Parameters and Dimming Methodologies

Troubleshooting Common Implementation Failures

Even with correct installation, LED systems often react unpredictably to unauthorized dimming attempts. Use these professional fixes to address common post-procedure issues.

• Root Cause: Audible Humming. This is caused by the internal driver’s inductors vibrating due to the mismatch between the power frequency and the dimming method.


  • Actionable Fix: Switch to an inline PWM controller that operates at a higher carrier frequency (above 20kHz), which moves the sound into the ultrasonic range where it is inaudible.
• Root Cause: Visible Strobe or Flickering. This occurs when the dimming mechanism interferes with the bulb’s ability to rectify the AC power cycle.


  • Actionable Fix: Replace the non-dimmable bulb with a compatible dimmable model, or remove the external dimmer and rely on optical filters instead.
• Root Cause: Sudden Power Cut-Off. Some smart bulbs or drivers have a "thermal trip" that cuts power if they sense an unconventional resistance pattern in the line.


  • Actionable Fix: Bypass any external resistors and utilize the software-based dimming features within the smart bulb’s native application to prevent hardware-level triggers.

Frequently Asked Questions

Can I dim non-dimmable LED bulbs using a physical cover?

Yes, using an optical filter or a physical lampshade is the only safe way to reduce the brightness of non-dimmable LEDs. Attempting to dim them electrically will cause the internal electronics to overheat and eventually fail.

Why do my LEDs flicker when I use a low-voltage potentiometer?

Flickering in this scenario is usually caused by an inadequate power supply rating or the potentiometer being incompatible with the LED driver's voltage range. Ensure your power supply is constant-voltage rated and that the potentiometer is correctly matched to the total load in Watts.

Is it dangerous to dim LEDs without a proper dimmer switch?

It is not inherently dangerous if you use external methods like optical filters, but tampering with the electrical circuit using improper dimmers can cause electrical fires. Always ensure your modifications meet local electrical code requirements and that you do not exceed the amperage rating of the wires.

Do smart bulbs require a specific switch?

No, smart bulbs are designed to be used with standard "on-off" switches. In fact, using a smart bulb with a traditional physical dimmer switch often results in catastrophic failure of the smart bulb's internal logic board.
