How To Determine The Size Of A Screw: A Professional Technical Guide

Determining the correct size of a screw requires measuring three primary variables: the nominal diameter, the thread pitch (or count), and the overall length. By utilizing a set of digital calipers and a thread pitch gauge, you can accurately identify standard or metric fasteners to ensure mechanical integrity in any assembly project.

Essential Preparation and Measurement Tooling

Before attempting to identify a fastener, ensure you are operating in a well-lit environment with the appropriate measurement equipment. Precise identification relies on differentiating between Imperial (Unified Thread Standard) and Metric (ISO) systems. Using the incorrect standard, even if the threads appear to match initially, will cause stripped threads, mechanical failure, or damaged internal threading in the mating part.

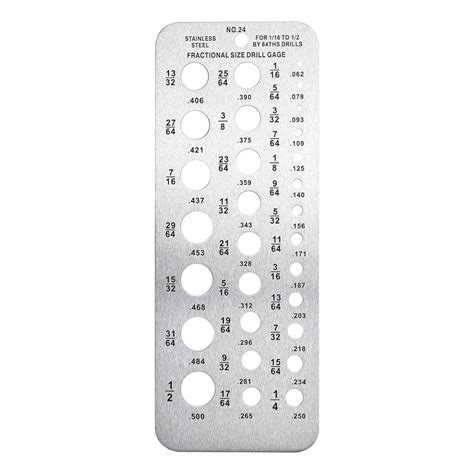

• Essential Measurement Tools:


  • Digital Calipers: Capable of measuring in both inches and millimeters to an accuracy of at least 0.01mm or 0.001 inches.
  • Thread Pitch Gauge: A comb-like tool used to compare the spacing of threads against a known standard.
  • Tapered Thread Gauge: Used to verify the internal thread diameter of a nut or a threaded hole.
  • Reference Chart: A printed or digital table mapping standard thread sizes to their respective diameters and pitches.
• Prerequisite Knowledge:


  • Understand the difference between a bolt (designed for a nut) and a screw (designed to engage with a tapped hole or self-tap into a material).
  • Recognize that head style (flat, pan, hex, socket) does not define the size, but is critical for counter-sinking or tool clearance.
  • Standardization: Know whether your assembly follows Unified National Coarse (UNC), Unified National Fine (UNF), or Metric (M-series) standards.

The Systematic Workflow for Accurate Fastener Identification

Identifying a screw correctly requires a disciplined approach to measurement. Always clear debris and rust from the threads using a wire brush before measuring, as surface contaminants can introduce errors in diameter readings.

Step 1: Measuring Nominal Diameter

Use your digital calipers to measure the major diameter of the screw. For externally threaded fasteners, this is the distance from the crest of the thread on one side to the crest of the thread on the opposite side.

1. Close the jaws of the caliper gently on the threads. Do not overtighten, as this can compress the threads and provide a false, smaller reading.
2. If the measurement is in inches, you are likely looking at a standard size (e.g., 1/4 inch, 5/16 inch). If in millimeters, it is a metric fastener.

3. Pro-Tip: If the diameter measurement results in a fractional number like 0.190 inches, compare it to a standard thread chart; 0.190 inches corresponds to a #10 machine screw.

Step 2: Determining Thread Count or Pitch

Once the diameter is known, you must identify how tightly the threads are spaced. This is the step most frequently bungled by DIYers, leading to cross-threading.

1. Place the blades of the thread pitch gauge against the screw until you find a blade that fits perfectly into the valleys of the threads without wobbling or creating gaps.
2. For Imperial screws, the result is "Threads Per Inch" (TPI). A 1/4-20 screw, for example, is 1/4 inch in diameter with 20 threads per inch.
3. For Metric screws, the result is "Pitch" measured in millimeters, representing the distance from the crest of one thread to the crest of the next. An M6x1.0 screw has a diameter of 6mm and a pitch of 1.0mm.

Step 3: Verifying Total Length

The measurement of length is dependent on the head design of the screw. This is a common point of confusion that results in purchasing fasteners that are either too long or too short for a given application.

1. For flat-head (countersunk) screws: Measure the length from the top of the head to the tip of the screw, as the head is designed to sit flush with the surface.
2. For pan, hex, or button-head screws: Measure from the underside of the head (the bearing surface) to the tip of the screw.

3. Warning: Never include the height of a protruding head in your length measurement for non-countersunk screws; this will result in a fastener that bottoms out before achieving full clamping force.

Fastener Specification and Measurement Parameters

The following table provides a reference for the most common hardware sizes encountered in general construction and mechanical engineering. Always cross-reference your specific findings against manufacturer documentation if the application involves high-stress load-bearing components.

Troubleshooting Common Fastener Mismatches

Even with precise measurement, field installation can reveal errors. Use these diagnostic steps to rectify assembly issues.

• Resistance During Threading: If the screw turns smoothly for a half-turn and then binds, you have a pitch mismatch (e.g., trying to force a 24 TPI screw into a 20 TPI hole). Stop immediately to prevent permanent damage to the female threads.
• Wobbling in the Hole: If the screw is the correct diameter but feels loose or rattles, you likely have a "coarse" thread screw in a "fine" thread nut, or the hole was drilled with a clearance bit that is too large for the fastener class. Re-measure the thread pitch gauge to confirm.
• Bottoming Out: If the screw head does not sit flush against the material but the threads are tight, the fastener is too long for the depth of the hole. Use a shorter screw or add an appropriately sized washer to distribute the load and fill the gap.

Frequently Asked Questions

How do I identify a screw size without a gauge?

You can use a known nut of the same diameter and gently test it. If the nut spins on freely, the threads match. Alternatively, place the screw against a ruler and count the number of thread crests over a 1-inch span to estimate the TPI.

Is there a difference between wood screws and machine screws?

Yes. Machine screws have uniform, finer threads intended for tapped holes or nuts, whereas wood screws feature deep, coarse threads designed to displace wood fibers and create their own holding path. Never use a machine screw in wood without an insert, as it will lack the necessary pull-out strength.

What is a #10-32 screw?

This is a standard machine screw. The #10 represents the nominal diameter (0.190 inches), and the 32 indicates there are 32 threads per inch along the shank. This is a common fine-thread size found in electronics and metal brackets.

How do I choose between Metric and Imperial fasteners?

Check the origin of your equipment. If the device was manufactured in the United States, it likely uses SAE/Imperial hardware. If it is European or Asian-made, it is almost certainly Metric. Never mix the two, as their thread profiles differ and will result in stripped threads.

Ensure Structural Integrity with Precise Hardware Selection

Accurate identification of screw sizes is the first step in ensuring the safety and longevity of your mechanical assemblies. Master the use of your digital calipers and pitch gauges to eliminate guesswork and prevent costly project failures.
