How To Design Your Own Stained Glass Pattern

Designing your own stained glass pattern bridges artistic expression with strict engineering rules, requiring a careful balance of lead line structural integrity, glass cutting physics, and visual composition. By mastering line weight management, piece count limits, and precise cardboard template fabrication, you can transform freehand sketches into stable, fabrication-ready blueprints.

Essential Equipment, Technical Standards, and Material Planning

Creating a professional-grade stained glass cartoon requires specific drafting tools that account for the physical realities of glass cutting, grinding, and metal caming or copper foiling. Unlike drawing on paper, a stained glass pattern must incorporate the hidden thickness of the joinery materials.

• Essential Tools and Media: Heavyweight vellum or translucent layout paper, a selection of hard graphite pencils (2H to 4H), an adjustable technical square, ultra-fine permanent markers (0.5mm and 1.0mm), a pattern shears scissors set (which cuts a three-way shim out of the paper to account for foil or lead width), and a heavy-duty self-healing cutting mat.
• Engineering Standards: Maintain a minimum interior radius of one-quarter inch to prevent glass fractures during score execution and thermal stress phases. Ensure no piece features acute internal angles less than sixty degrees unless you plan to execute relief cuts with a diamond-grit band saw.
• Time and Budget Benchmarks: A standard 12-inch by 12-inch beginner pattern containing twenty to thirty pieces generally requires four to six hours of design and refinement. Material overhead for drafting supplies remains minimal, usually under twenty dollars if utilizing standard hand-drafting equipment.

Step-by-Step Stained Glass Pattern Construction Workflow

Step 1: Establish Scale, Dimensions, and Structural Boundaries

Begin by drawing the exact perimeter of your finished window or panel on your layout paper, factoring in the framing channel or zinc margin. Determine the primary focal point of your design and position it according to the rule of thirds or classic geometric symmetry. Keep in mind that every single line you draw will eventually become a metal seam holding pieces apart.

Pro-Tip: Draw your exterior border twice: once for the exact glass size, and a secondary outer line representing the bite depth of your chosen zinc or wood frame.

Step 2: Draft the Primary Lead Lines and Structural Bridges

Sketch your major design motifs using flowing, continuous lines that span from one side of the panel to the other whenever possible. These structural "load-bearing" lines distribute the weight of the glass and prevent the panel from sagging over time. Avoid floating motifs or complex interlocking puzzle pieces that are impossible to wrap in copper foil or insert into lead came channels.

Warning: Never design a four-way intersection where four glass corners meet at a single point; this is known as a weak point in fabrication and often leads to structural failure or unresolvable stress fractures. Always stagger your joints into a "T" intersection.

Step 3: Optimize for Glass Cutability and Curvature Physics

Examine every enclosed space in your drawing and evaluate whether a glass cutter can physically trace the path from edge to edge. Deep concavities must be simplified into gentle curves or broken down into multiple smaller pieces.

1. Identify areas where a glass score line would naturally run off the edge of the glass.
2. Add strategic break lines to divide overly large or complex shapes into manageable, convex geometric polygons.
3. Check all narrow necks and thin tips to ensure they exceed three-eighths of an inch in width to survive the grinding wheel.

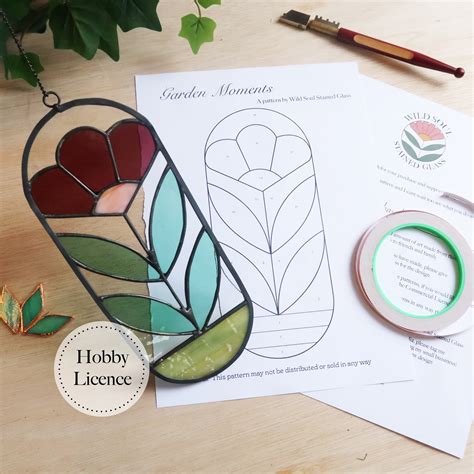

Step 4: Create Working Master Copies and Pattern Shim Separations

Trace your finalized master drawing onto multiple sheets of heavy paper or cardstock using carbon transfer paper or a light box. You will need one master key layout to glue to your workboard, and a secondary working copy designated specifically for cutting out individual pattern pieces with pattern shears.

• Cut out each shape using the specialized three-way pattern shears, which automatically remove the exact thickness of the copper foil adhesive or lead core.
• Label every single paper piece with a unique letter or number code, alongside an arrow indicating the preferred grain or direction of the glass texture.

Stained Glass Pattern Design Specifications Comparison

Common Design Failures and Field Fixes

• Root Cause: Glass pieces are cracking spontaneously along deep interior curves during the grinding or foiling stage.


  • Actionable Fix: Redraw the pattern to eliminate sharp internal curves by splitting the shape into two separate pieces along a natural contour line, or use a diamond ring saw to relieve stress points.
• Root Cause: The final assembled panel sags or warps under its own weight when lifted vertically.


  • Actionable Fix: Your pattern lacked continuous horizontal lead lines or structural armature bars; redesign the cartoon to include straight lead lines running edge-to-edge every eight to twelve inches.
• Root Cause: Solder joints or foil overlaps overlap haphazardly because the pattern lines were too thick or inconsistent.


  • Actionable Fix: Standardize your initial drafting line weight to match the exact thickness of your graphite or marker tips, and consistently use pattern shears for all subsequent template fabrication.

Frequently Asked Questions

How do I account for the thickness of the copper foil in my pattern?

You must use pattern shears that remove a strip of paper precisely equal to the thickness of your copper foil and the resulting solder bead (typically 1/32 to 1/16 of an inch). If you draw by hand without shears, you must manually offset your lines outward or accept that your final panel will expand slightly beyond your original template dimensions.

What is the maximum size a single glass piece should be in a pattern?

As a general rule, avoid making any single glass piece larger than six inches by six inches unless it is made from heavy, tempered, or textured specialty glass. Large expanses of glass are structurally weak, highly susceptible to thermal shock during soldering, and more prone to accidental breakage during handling.

Can I turn any photograph or coloring book page into a stained glass pattern?

Yes, but you must heavily edit the reference image to remove fine details, excessive shading, and impossible geometric intersections. Simplify complex organic forms into bold, graphic shapes that respect the physical limitations of glass cutting and metal joinery.

Why are four-way intersecting lines bad in stained glass design?

Four-way intersections create a structural crossroad where lead or solder fails to provide adequate support, making the surrounding glass vulnerable to cracking under pressure. Transforming these intersections into staggered "T" junctions distributes stress evenly across the entire panel matrix.

How do I know which way to orient glass grain in my pattern?

Indicate directional arrows on your pattern pieces to align linear textures, wispy art glass striations, or dramatic color shifts with the natural flow of the design. Consistent grain orientation enhances the visual harmony of the finished piece, especially in natural subjects like leaves, wings, and water.

Begin crafting your custom masterpiece today by sketching your initial concept on vellum and applying these structural design rules.
