How To Cut Plywood With A Circular Saw: A Professional Guide To Precision And Safety

Achieving a clean, splinter-free cut in plywood requires a combination of the correct blade selection, proper support setup, and strict adherence to feed rate consistency. By utilizing a sacrificial backer board and setting your blade depth to exactly one-quarter inch deeper than the material thickness, you can eliminate tear-out while maintaining structural integrity during the cutting process.

Essential Preparation and Tooling Requirements

Executing a professional-grade cut in plywood with a circular saw depends less on raw power and more on the configuration of the tool and the stability of the workpiece. Plywood is prone to splintering, particularly on the bottom side of the cut, due to the upward rotation of standard saw blades. Proper planning involves managing the orientation of the board, the support structure, and the personal protective equipment required for shop safety.

• Essential Tools: Circular saw (corded or 18V brushless), a high-tooth-count finish blade (60-tooth for plywood), a straight-edge guide or track system, and bar clamps.
• Workpiece Support: Two heavy-duty sawhorses or a sacrificial foam insulation sheet (polystyrene) to support the board without sagging or binding the blade.
• Safety Gear: ANSI-rated safety glasses, N95 dust mask or respirator, and hearing protection, as plywood dust is notoriously fine and irritating.
• Preparation Standards: Always ensure the plywood is supported on both sides of the cut line to prevent the off-cut from pinching the blade, which is the primary cause of kickback.
• Budget/Duration: Minimal cost for consumable materials (blades/sandpaper); standard project setup time is approximately 15 to 20 minutes for layout and calibration.

Systematic Execution for Clean Plywood Cuts

Step 1: Selecting and Installing the Correct Blade

Standard framing blades often feature 24 teeth, which are designed for speed rather than finish quality. For plywood, you must use a blade with at least 60 teeth for a 7-1/4 inch saw. The high tooth count reduces the size of the wood chips removed by each tooth, resulting in a cleaner edge. Before mounting, ensure the blade is clean of pitch and resin buildup, which can cause excessive heat and wandering cuts.

Step 2: Calibrating Blade Depth

The most common mistake among novices is extending the blade too far through the material. Set your circular saw depth so the tips of the teeth extend exactly 1/4 inch beyond the underside of the plywood. This reduces the angle of attack, significantly minimizing the amount of tear-out on the bottom veneer.

Step 3: Establishing the Cut Line and Sacrificial Base

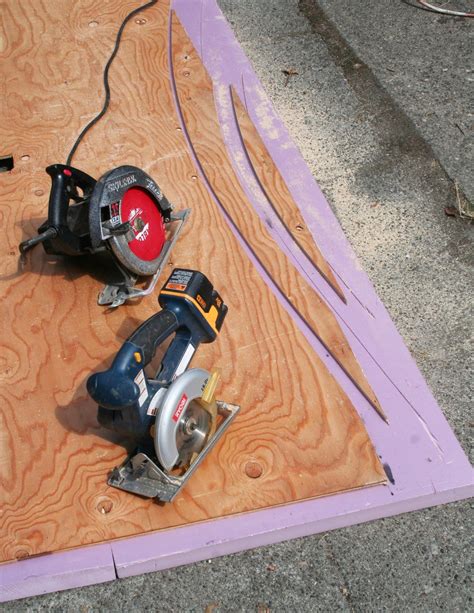

Mark your cut line clearly with a fine-tipped pencil or a marking knife for maximum accuracy. If you are using a sacrificial foam board base, lay the plywood directly on top of it. The foam provides continuous support across the entire sheet, preventing the waste piece from snapping off prematurely and tearing the veneer.

Pro-Tip: If you do not have foam, use a piece of 1/2-inch rigid insulation or a flat, sacrificial sheet of 1/4-inch MDF or hardboard underneath your plywood to act as a zero-clearance support.

Step 4: Utilizing a Straight-Edge Guide

Circular saws are difficult to keep perfectly straight over long spans. Always use a factory-edge board, a dedicated circular saw track, or a speed square as a fence. Measure the distance from the edge of your saw’s baseplate (the shoe) to the blade, then offset your straight-edge guide by that exact distance to align the blade perfectly with your pencil mark.

Step 5: Executing the Cut at a Constant Feed Rate

Once the saw is against the guide, engage the trigger and allow the blade to reach full RPM before touching the wood. Maintain a steady, moderate feed rate. If you push too fast, the blade will deflect and burn; if you move too slowly, the friction will scorch the wood grain. Keep the baseplate flat against the workpiece throughout the entire length of the cut to ensure vertical accuracy.

Warning: Never force the saw if you feel resistance. Stop, retract the blade, and inspect the cut line for binding or internal stress in the plywood that may have closed the kerf.

Technical Parameters for Blade and Material Compatibility

Common Site Failures and Field Fixes

• Severe Bottom-Side Tear-out:


  • Root Cause: The upward rotation of the blade teeth is lifting the veneer fibers before they are sliced.
  • Actionable Fix: Apply a strip of blue painter’s tape over the cut line before marking and cutting. The adhesive holds the wood fibers down during the blade's exit.
• Blade Wandering or Crooked Cuts:


  • Root Cause: Excessive lateral pressure against the saw guide or a dull blade.
  • Actionable Fix: Let the saw do the work. If the blade wanders, check for pitch buildup on the teeth and replace the blade if necessary. Ensure the saw shoe is firmly against the guide at all times.
• Burn Marks on Plywood Edge:


  • Root Cause: A dull blade causing friction or a feed rate that is too slow for the motor speed.
  • Actionable Fix: Clean the blade with a specialized resin remover or replace it. Increase the feed rate slightly to ensure the teeth are cutting rather than rubbing.

Frequently Asked Questions

Which side of the plywood should face up when using a circular saw?

When using a standard circular saw, you should place the "good" or show-face of the plywood facing down. Because the blade teeth enter the wood from the bottom and exit through the top, the bottom side will experience the most tear-out, while the top side will remain clean.

How do I prevent the plywood from splintering without a track saw?

You can prevent splintering by using a high-tooth-count blade, applying masking tape over the cut line, and using a zero-clearance base like a piece of rigid foam insulation underneath the sheet. These methods stabilize the veneer fibers and prevent them from lifting as the blade teeth pass through.

Should I use a crosscut or rip blade for plywood?

For the best results with plywood, use a dedicated finish-cut blade with a high tooth count and an alternate top bevel (ATB) grind. This configuration provides a shearing action that slices through the cross-grain and long-grain of the plywood layers cleanly without shredding the wood fibers.

Why does my circular saw get stuck halfway through a sheet of plywood?

The saw typically binds because the plywood is not supported properly on both sides of the cut. As you cut, the weight of the off-cut causes the board to sag, pinching the blade between the two pieces of wood. Always ensure the off-cut is supported by a sawhorse or an underlying foam sheet to prevent this movement.

How do I ensure my cut is perfectly square?

To achieve a square cut, use a factory-straight edge or a speed square as a guide. Measure twice from the intended cut line to the edge of the board, align your guide, and lock it down with clamps before making the pass.
