How To Cut Melamine Board Without Chipping: A Professional Guide

Cutting melamine board cleanly requires specialized blade geometries, proper scoring techniques, and precise feed rates to prevent the brittle resin coating from fracturing. By utilizing high-density particleboard cores, zero-clearance inserts, and correct tooth configurations, you can achieve factory-edge finishes on custom cabinetry, shelving, and furniture projects.

Pre-Operation & Equipment Checklist

Achieving a professional, chip-free edge on melamine-faced panels demands strict adherence to preparation standards and specific tooling selections. Because melamine is essentially a paper-thin, resin-impregnated plastic fused to a raw particleboard or MDF core, any standard woodworking blade will cause severe chipping along the top or bottom surfaces.

• Essential Gear, Tools, and Materials:


  • High-tooth-count circular saw or table saw (minimum 60 to 80 teeth for a 10-inch blade, or 40 to 60 teeth for a 7-1/4-inch track saw blade).
  • High Atop Bevel (Hi-ATB) or Triple Chip Grind (TCG) carbide saw blade.
  • Track saw with a splinter guard or a precision circular saw with a straight-edge guide.
  • Blue painter's tape (2-inch wide low-tack variant).
  • Marking gauge, sharp utility knife, and a heavy-duty steel square.
  • Personal protective equipment: safety glasses, N95 dust mask or respirator (due to formaldehyde resins in particleboard dust), and hearing protection.
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding how saw blade rotation dictates which surface receives the exit wound (the bottom surface on table saws, the top surface on track saws).
  • Mastery of manual scoring techniques to sever the brittle melamine layer prior to making a full-depth pass.
• Estimated Budget and Duration Benchmarks:


  • Budget: 15 to 40 USD for a specialized melamine blade if you do not already own one.
  • Duration: Approximately 15 to 25 minutes per sheet for layout, scoring, and precision cutting.

Step-by-Step Melamine Cutting Execution

Step 1: Material Acclimation and Precise Layout Measurement

Measure your melamine panels twice, accounting for the blade kerf (typically 1/8 inch or 3.2 millimeters) if you are making multiple rip or cross cuts. Mark your cut lines directly onto a strip of blue painter's tape applied across the face of the board to help hold the resin surface fibers in place. Use a sharp utility knife and a steel square to score directly through the center of your pencil line, slicing the surface melamine layer before any mechanical saw teeth touch the panel.

Pro-Tip: Applying painter's tape to both the entry and exit sides of the cut line significantly reduces micro-chipping by acting as a tensile binder for the brittle plastic resin coating.

Step 2: Configuring Your Cutting System and Blade Selection

Install a specialized melamine blade featuring either a Hi-ATB (High Alternate Top Bevel) grind or a TCG (Triple Chip Grind) geometry, ensuring the hook angle is slightly negative (around negative 5 degrees) to prevent the saw from self-feeding too aggressively. If you are using a table saw, set the blade height so that the gullets of the teeth are level with the top surface of the board, minimizing the angle of attack against the melamine face.

Warning: Never use a standard rip blade or a general-purpose framing blade on melamine; the flat-top or low-count alternating teeth will violently shatter the decorative coating and ruin your workpiece.

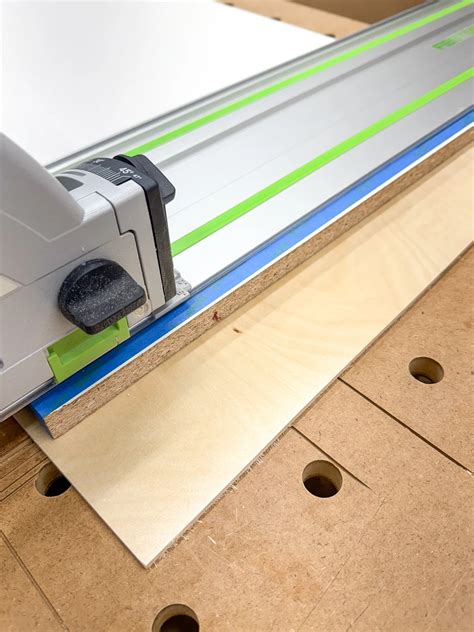

Step 3: Executing the Clean Cut via Track Saw or Table Saw

Align your track saw's splinter guard or your table saw fence to the waste side of your scored layout line. If you are cutting on a standard table saw without a scoring blade, run a preliminary climb-cut or shallow pass with the blade set to a height of 1/16 inch on the first rotation, then follow up with a full-depth pass on the return or second feed. Feed the material through the blade at a slow, steady, and uniform pace without pausing or stuttering, as hesitation marks will scorch the melamine surface.

Step 4: Edge Preparation and Debris Management

Vacuum the freshly cut edges immediately to remove fine, abrasive particleboard dust that can scratch finished surfaces during assembly. Inspect the edge for any microscopic chipping; if minor feathering is present, smooth it down gently with a fine-grit sanding block (220-grit or higher) held at a 45-degree angle toward the back of the panel to avoid stripping the remaining face.

Melamine Blade vs. Standard Blade Technical Comparison

Common Site Failures and Field Fixes

• Severe Top-Surface Chipping:


  • Root Cause: Using a dull blade, a low tooth count, or failing to score the melamine layer prior to the main cut.
  • Actionable Fix: Apply fresh painter's tape over the cut line, score the melamine with a sharp utility knife, and upgrade to an 80-tooth Hi-ATB blade.
• Bottom-Surface Blowout on Table Saw:


  • Root Cause: The blade exit angle is too steep, or the table saw insert has too much clearance around the blade slot.
  • Actionable Fix: Install a zero-clearance throat plate and lower the blade height so that only the carbide tips emerge through the top of the panel.
• Scorched or Burned Edges:


  • Root Cause: Feeding the board through the saw too slowly, or using gummed-up, resin-coated carbide teeth.
  • Actionable Fix: Clean your saw blade with an industrial pitch and resin remover, and maintain a swift, consistent feed rate.

Frequently Asked Questions

Can I cut melamine board with a standard circular saw?

Yes, but only if you install a high-tooth-count finishing blade and use a straight-edge guide clamp. To prevent top-surface chipping, score the cut line with a utility knife first, or cut with the finished face of the board facing downward if you are using a standard base-plate circular saw.

How do I stop melamine from chipping without a special blade?

If you cannot purchase a dedicated melamine blade, scoring the cut line deeply with a razor knife is mandatory. Additionally, scoring the bottom surface or running a shallow initial pass (1/16 inch deep) in reverse before making your final full-depth pass will minimize surface blowout.

Is MDF core better than particleboard core for cutting melamine?

MDF (Medium-Density Fiberboard) core melamine produces cleaner, crisper edges when cut or routed because its homogeneous composition lacks the large wood chips found in standard particleboard. However, MDF core panels are significantly heavier and more susceptible to sagging over long shelving spans.

What is the best way to hide chipped melamine edges?

Minor chips can be filled using matching colored wax repair sticks, melamine edge-banding touch-up markers, or specialized tinted wood putts. For extensive damage, apply iron-on PVC or melamine edge-banding tape using a household iron and trim the excess flush with a utility knife.

Mastering how to cut melamine board transforms standard laminate panels into professional-grade furniture with flawless, chip-free joints. Equip your workspace with the right high-tooth-count blades, take time to score your cut lines accurately, and enjoy pristine cabinetry results on every project.
