How To Create Run Chart In Excel For Process Improvement
A run chart in Excel is a powerful line graph used to track process performance data over sequential time periods to identify trends, shifts, and cyclical variations. By plotting your median line and analyzing consecutive data points above or below it, you can easily distinguish between common cause variation and special cause variation without complex statistical software.
Initial Setup Requirements for Time-Series Analysis
Building an effective run chart requires clean chronological data entry, a structured table layout, and a clear understanding of your process measurement parameters. Run charts differ from standard line graphs because they mandate a temporal sequence on the horizontal axis and a consistent metric on the vertical axis, providing an immediate visual history of system stability.
- Essential Tools and Software: Microsoft Excel (Office 365, Excel 2019, Excel 2021, or Excel for the Web), a standard computer mouse, and a pre-formatted data table template.
- Mandatory Prerequisite Knowledge: Basic familiarity with Excel ribbon menus, fundamental formula syntax for calculating medians, and the core rules for identifying special cause variation in quality management.
- Estimated Duration and Benchmarks: Complete setup typically takes between 10 to 15 minutes for a dataset containing 20 to 50 sequential subgroups or time intervals.
Step-by-Step Procedure to Build a Professional Run Chart
Step 1: Structure and Populate Your Chronological Data Table
Open a blank workbook in Excel and create three distinct columns to house your time-series data. In Column A, label the header "Time Period" or "Date" and input your chronological sequence, such as weeks, months, or operational shifts. In Column B, enter "Metric Value" or "Performance Measure" to record your actual collected data points. Leave Column C available for your calculated median reference values to simplify later graphing steps.
Pro-Tip: Ensure your time data points are strictly continuous and evenly spaced. Gaps in your chronological sequence will distort the visual trajectory of your trend lines and invalidate standard run chart analysis rules.
Step 2: Calculate the Process Median
Navigate to an empty cell adjacent to your data table and calculate the statistical median of your performance metric using the built-in function. Type the formula equals median, open parenthesis, select your entire range of metric values in Column B, and close the parenthesis. Copy this exact median value down a dedicated reference column in your table so that every row has a corresponding median entry, which allows Excel to plot it as a flat benchmark line.
Step 3: Insert and Format the Scatter or Line Chart
Highlight both your metric values column and your median reference column simultaneously using your cursor. Navigate to the Insert tab on the Excel ribbon, select the Insert Scatter with Straight Lines and Markers chart type, or choose a standard 2D Line chart. Excel will automatically generate a dual-line graph displaying your process performance alongside the flat median reference line.
Warning: Avoid using standard category-based line charts if your time intervals contain missing dates or uneven sampling frequencies, as line charts treat horizontal categories as evenly spaced text labels rather than true numerical values.
Step 4: Customize Visual Elements for Quality Analysis
Right-click on your chart elements to refine the aesthetic and analytical clarity of your run chart. Format the primary performance line with a bold, high-contrast color such as dark blue, while styling the median line as a subtle gray or dashed red line. Add a descriptive chart title indicating the process name and time frame, label your vertical axis with the specific unit of measurement, and label your horizontal axis clearly.

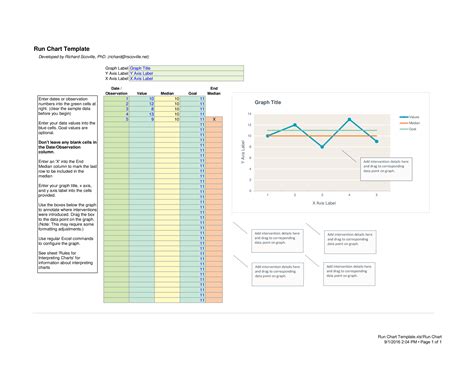

What Is A Run Chart In Excel at Ruth Kuhlman blog
Run Chart Metric Parameters and Comparison
| Chart Parameter | Standard Line Graph | Statistical Run Chart | Control Chart |
|---|---|---|---|
| Primary Purpose | Display general trends over time | Detect non-random variation and shifts | Monitor stability using statistical limits |
| Reference Line | None or arbitrary target | Statistical Median | Mean with Upper/Lower Control Limits |
| Special Cause Rules | None applied | Runs, shifts, trends, and astronomical points | Outliers beyond 3-sigma standard deviation limits |
| Required Math | Simple plotting | Median calculation | Standard deviation and mean formulas |
Common Run Chart Failures and Field Fixes
- Issue: The median line splits data points awkwardly, resulting in too many values falling directly on the median.
- Root Cause: Even-numbered datasets where the calculated median matches multiple exact data values, causing ambiguity in test rules.
- Actionable Fix: Document clearly whether values equal to the median are counted as above or below the line, or slightly adjust your sample size to create an odd number of data points.
- Issue: Excel plots the time sequence on the vertical axis and the performance metric horizontally.
- Root Cause: Incorrect column selection or layout configuration during the initial chart insertion wizard phase.
- Actionable Fix: Right-click the chart, choose Select Data, and ensure your horizontal category axis labels reference the time period column while series values reference only your metric and median data columns.
- Issue: The chart appears cluttered and unreadable due to excessive data points.
- Root Cause: Plotting raw, high-frequency transactional data instead of aggregated subgroup medians or averages over fixed operational periods.
- Actionable Fix: Group your raw data into logical shifts, days, or weekly summaries before inputting values into your master Excel tracking table.
Frequently Asked Questions
What is the primary difference between a run chart and a control chart in Excel?
A run chart tracks data points over time and uses a median line to identify non-random patterns using simple rules of thumb. A control chart is more statistically advanced, incorporating calculated upper and lower control limits based on standard deviation to evaluate whether a process is in statistical control.
How do I identify a trend using a run chart in Excel?
A trend is identified on a run chart when there are five or more consecutive data points that are all steadily increasing or all steadily decreasing. If a point remains equal to the previous point, it breaks the consecutive sequence and does not contribute to the trend count.
Can Excel automatically update my median line if I add new data?
Yes, you can make your median formula dynamic by using structured table references or dynamic named ranges instead of static cell ranges like B2 to B50. When you append new rows to an Excel Table, your median calculation and chart series will automatically expand to include the fresh data.
How do I count runs above and below the median line?
A run is defined as a consecutive sequence of data points that sit entirely on one side of the median line. Any data point that falls directly on the median line is typically ignored, and the count resets when data crosses to the opposite side of the line.
Master your operational data analysis workflows by downloading our professional Excel templates and building robust quality tracking dashboards today.
