Comprehensive Guide: How To Create A Plane In SolidWorks For Advanced Modeling
Creating reference planes in SolidWorks is a foundational skill for 3D parametric modeling, allowing users to define sketches, section views, and geometry on non-standard orientations. By utilizing the Plane tool within the Reference Geometry feature, designers can establish specific spatial constraints based on existing model faces, vertices, or temporary axes, ensuring design intent remains intact throughout complex feature trees.
Pre-Procedure Planning and Environment Setup
Before initiating the creation of a reference plane, ensure that the SolidWorks interface is configured to support standard geometric construction. Proficiency in 3D visualization and an understanding of the default coordinate system (Origin, Front Plane, Top Plane, Right Plane) are mandatory prerequisites for efficient model development.
- Essential Software Requirements: SolidWorks 2018 or newer, active license with Features manager capabilities.
- Mandatory Prerequisite Knowledge: Understanding of geometric constraints, mates, and the relationship between parent and child features in the FeatureManager Design Tree.
- Estimated Complexity: Low to intermediate, depending on the number of references required.
- Estimated Duration: Approximately 30 to 60 seconds per plane configuration.
- Environment Checklist: Ensure View Origins and View Temporary Axes are enabled under the View dropdown menu to assist in selecting geometric anchors.
Procedural Workflow for Constructing Reference Planes
SolidWorks utilizes a robust Reference Geometry suite to generate planes. This process relies on selecting specific entities to define the orientation and position of the new plane.
Step 1: Initiating the Reference Geometry Tool
Navigate to the CommandManager at the top of the interface and select the Features tab. Locate the Reference Geometry dropdown menu, typically found in the top-right quadrant of the feature ribbon. Click on the Plane tool. This action opens the PropertyManager, which dictates the constraints for your new plane.

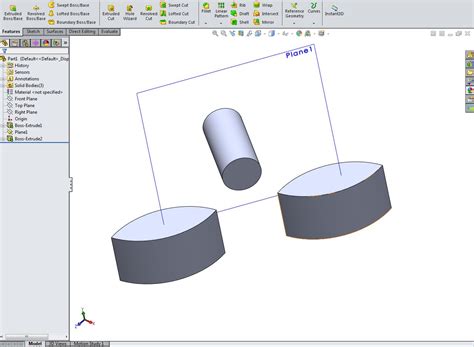

Step 2: Defining Primary, Secondary, and Tertiary References
The PropertyManager allows for up to three geometric references to fully define the plane's position in 3D space. Select your first reference entity—this could be a planar face, an edge, a vertex, or an existing plane. Depending on the selection, SolidWorks will offer various geometric conditions such as Parallel, Perpendicular, Coincident, or Angle.
Pro-Tip: If you are unsure which reference to select, use the "First Reference" box and hover over model geometry; SolidWorks will dynamically preview the potential plane orientation before you confirm the click.
Step 3: Applying Distance or Angular Offsets
Once a primary reference is established, you must refine the plane’s location. If selecting a planar face as the first reference, the Distance option appears. Enter a specific numerical value in the Distance input box to offset the plane. If the plane requires a tilt, utilize the Angle constraint by selecting a secondary linear edge or axis to define the pivot point of the plane.
Warning: Excessive use of reference planes can lead to long rebuild times in complex assemblies. Always attempt to use default planes or existing sketch geometry before creating new, non-essential reference planes.
Step 4: Multi-Plane Patterning and Verification
For complex parts requiring equidistant spacing—such as internal ribs or turbine cooling channels—you can create multiple planes simultaneously within the Plane PropertyManager. Increase the "Number of Planes to Create" spin box to the desired count. SolidWorks will automatically distribute them based on the initial distance value provided. Once satisfied, click the green checkmark to finalize the operation.
SolidWorks Hotkeys That Actually Change How You Work - Vagon
Reference Geometry Comparison Matrix
The following table outlines the required geometric inputs for the most common plane creation methods used in mechanical design.
| Method | Primary Reference | Secondary Reference | Tertiary Reference | Typical Use Case |
|---|---|---|---|---|
| Offset | Planar Face | Distance Value | N/A | Creating workspace above a base |
| Angle | Planar Face | Linear Edge/Axis | Angular Value | Creating angled ribs or gussets |
| Mid-Plane | Planar Face | Planar Face | N/A | Symmetrical design referencing |
| Two Lines | Linear Edge | Linear Edge | N/A | Defining a plane through an intersection |
| Through Point | Vertex/Point | Linear Edge | N/A | Positioning features at custom coordinates |
Post-Procedure Troubleshooting and Geometric Failures
Field failures often occur when parent geometry is modified, leading to dangling references or invalid plane orientations. Addressing these immediately is critical to maintaining model stability.
- Error: Plane Becomes Dangling (Pink or Red Highlights)
- Root Cause: The parent face or vertex used to define the reference plane has been suppressed, deleted, or renamed.
- Actionable Fix: Right-click the dangling plane in the FeatureManager Design Tree, select "Edit Feature," and re-select the missing references or update them with new geometry.
- Error: Plane Flip Failure
- Root Cause: Constraints are mathematically impossible to solve with the current flip direction, particularly when using angular offsets.
- Actionable Fix: Toggle the "Flip" checkbox within the PropertyManager to reverse the normal vector direction of the plane.
- Error: Circular Reference Warning
- Root Cause: A plane is being created using a reference that depends on the plane itself, creating a logical loop.
- Actionable Fix: Reorder the FeatureManager tree to ensure the plane is created after its parent geometry or choose a more stable, base-level reference entity.
Frequently Asked Questions
Can I sketch directly on a reference plane?
Yes, once the reference plane is created and the PropertyManager is closed, simply click on the plane in the graphics area and select "Sketch" from the context toolbar. The system will automatically align the view normal to your new reference plane.
Is it possible to rename a reference plane for better organization?
Absolutely. Within the FeatureManager Design Tree, click the plane name once to highlight it, wait a second, and click again to edit the text, or press F2 on your keyboard. Renaming planes like "Front_Offset_50mm" significantly improves assembly performance and clarity for other team members.
What happens to my sketches if I delete a reference plane?
If a reference plane is deleted, any features or sketches hosted on that plane will lose their orientation reference and likely fail. SolidWorks will mark these features with a red error icon; you must either re-attach the sketches to a new plane or fix the broken references immediately.
Why does my plane show as "Fixed" instead of "Fully Defined"?
A plane is fully defined when its position is mathematically constrained in 3D space by existing geometry. If it remains "Fixed" or "Under Defined," it usually indicates that you have the option to drag the plane or that it lacks sufficient geometric anchors to lock it in place; ensure all selection boxes in the PropertyManager are satisfied.
Mastering the creation of reference planes is the first step toward high-fidelity CAD modeling. Integrate these practices into your daily workflow to ensure your assemblies remain robust and your design intent remains clear.
