Mastering Revit Family Creation: A Technical Guide To Parametric BIM Content

Creating a Revit family requires a systematic approach of selecting the correct template, establishing a robust framework of reference planes, and constraining geometry to parametric dimensions. To achieve professional BIM standards, modelers must prioritize "flexing" the framework before geometry application to ensure the component maintains its integrity across various Type and Instance configurations.

Strategic Planning and Revit Family Environment Setup

Before opening the Family Editor, a technical assessment of the component’s functional requirements is mandatory. Unlike project files (.rvt), Revit families (.rfa) are built within specific template environments (.rft) that dictate the hosting behavior and category-specific properties of the object. Selecting an incorrect template at this stage can lead to irreversible limitations, such as a wall-hosted family being unable to sit on a floor or a generic model lacking the necessary parameters for MEP systems.

Effective preparation involves defining the Level of Development (LOD) required for the project. For LOD 300 or 350, families must include precise geometric representations and essential assembly data, whereas LOD 400 requires detailed fabrication information. Over-modeling geometry is a frequent error that leads to bloated file sizes and degraded project performance; therefore, a "lean modeling" philosophy should be adopted from the outset.

• Essential Software & Standards: Autodesk Revit (matching the project version), National BIM Standards (NBIMS), or company-specific shared parameter files.
• Prerequisite Knowledge: Understanding the difference between Type and Instance parameters, familiarity with the Family Editor interface, and knowledge of Revit's "IsReference" properties.
• Mandatory Assets: Geometric dimensions from manufacturer data sheets, required OmniClass or UniFormat codes, and standardized material libraries.
• Duration Benchmarks: A basic parametric component (e.g., a standard table) typically requires 2–4 hours, while complex, nested mechanical equipment with extensive connectors can take 8–16 hours.

Executing the Parametric Family Creation Workflow

The process of building a Revit family is additive and hierarchical. You must build the "intelligence" of the model before you build the physical form. Following this sequence ensures that the geometry responds predictably to user inputs.

Step 1: Selecting the Optimal Family Template

The foundation of every family is the .rft file. You must decide if the family should be "Hosted" or "Non-Hosted." Hosted families require a host element (Wall, Floor, Ceiling, Roof, or Face) to exist within a project. Non-hosted (or level-based) families offer more flexibility but may require more manual placement effort.

1. Navigate to New > Family in the Revit Application Menu.
2. Choose a category-specific template if the behavior is predefined (e.g., "Metric Casework.rft").

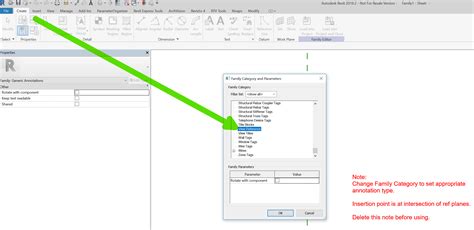

3. If no specific category fits or if you require maximum flexibility, select "Metric Generic Model.rft." You can change the category later via the Family Category and Parameters dialog, but you cannot change the hosting behavior after the file is created.

Step 2: Establishing the Reference Plane Framework

Reference planes are the most important part of the family; they act as the skeleton that drives the geometry. Always model your reference planes before your solids.

1. In the Floor Plan view, use the "Reference Plane" tool to create the boundaries of your object.
2. Use the "Mirror" or "Copy" tools to maintain symmetry around the Center (Left/Right) and Center (Front/Back) planes.
3. Assign the "IsReference" property to each plane. Set primary planes to "Strong Reference" so they can be dimensioned in the project environment, and secondary planes to "Weak Reference."
4. Apply Equality (EQ) constraints to ensure the framework expands and contracts uniformly from the center point.

Pro-Tip: Always name your reference planes. When you reach the stage of creating complex sweeps or nested components, having named planes like "Top of Frame" or "Panel Inset" will save hours of troubleshooting.

Step 3: Mapping Parametric Dimensions and Labels

Dimensions transform static lines into dynamic parameters. This is where the family gains its "parametric" capability.

1. Place a dimension between two reference planes (never dimension to the geometry itself).
2. Select the dimension and click the "Create Parameter" button in the Ribbon.
3. In the Parameter Properties, decide between "Type" (changes all instances of this family) or "Instance" (allows each placed object to have unique dimensions).
4. Group the parameter under a logical heading like "Dimensions" or "Constraints."
5. Open the "Family Types" dialog and "flex" the model by changing the values. If the reference planes move as expected without errors, your framework is stable.

Step 4: Generating Solid and Void Geometry

With the skeleton in place, you can now add the "skin." Revit provides five primary tools: Extrusion, Blend, Revolve, Sweep, and Swept Blend.

1. Select the appropriate tool (e.g., Extrusion) and set the Work Plane to the relevant reference plane.
2. Sketch the boundary of the geometry. Use the "Align" tool to snap the sketch lines to the reference planes.
3. Immediately click the "Padlock" icon that appears after alignment. This locks the geometry to the plane.
4. For depth, do not type a number into the "Extrusion End" property. Instead, align the start and end faces of the extrusion to reference planes in an elevation view and lock them.
5. Use "Void" forms to cut openings or recesses in your solid geometry using the same alignment and locking logic.

Step 5: Managing Visibility and Detail Levels

Professional families must look correct at different scales. A door should show its handle in a 1:20 detail view but hide it in a 1:100 site plan to reduce visual clutter.

1. Select a geometric element and click "Visibility/Graphics Overrides" in the Properties palette.
2. Uncheck "Coarse" or "Medium" for high-detail elements.
3. Use "Symbolic Lines" in plan views to represent the object when it is cut or viewed from above, allowing you to hide the 3D geometry in 2D views for faster project performance.
4. Assign "Subcategories" (e.g., Glass, Frame, Hardware) to geometry to allow project-wide control of line weights and materials.

Warning: Avoid using "Fine" detail for every element. If a project contains 500 instances of a family and each instance has high-poly geometry visible in "Coarse" view, the project's Refresh Rate will drop significantly, leading to "lag" during navigation.

Step 6: Final Testing and Technical Validation

Before loading the family into a live project, it must undergo a stress test.

1. Open the Family Types dialog and input extreme values (e.g., very small and very large widths). If the geometry breaks, the constraints are likely overlapping or missing.
2. Check the "Identity Data" section. Ensure the Manufacturer, Model, Description, and URL parameters are filled out.
3. Purge unused styles and materials using the "Purge Unused" tool to minimize file size.
4. Save the file using a standardized naming convention (e.g., Category_Manufacturer_Description.rfa).

Revit Family Performance and Constraint Specifications

The following table outlines the critical technical differences between parameter types and geometry constraints that dictate how a family behaves within a Building Information Model.

Troubleshooting Parametric Constraints and Model Failures

Even experienced BIM managers encounter "Constraints are not satisfied" errors. Understanding the root cause is the only way to maintain model health.

• Scenario: Geometry does not move with Reference Planes.




  • Root Cause: The geometry sketch lines or faces were not aligned and locked to the planes during the creation phase.
  • Actionable Fix: Use the "Align" tool (shortcut AL), select the reference plane first, then the geometry edge, and click the padlock icon. Re-test the parameter in the Family Types dialog.

• Scenario: "Over-constrained" error message appears when adding a dimension.




  • Root Cause: There is a conflict between two constraints. For example, a dimension is trying to set a width while an "Equality" constraint or a locked alignment is forcing a different value.
  • Actionable Fix: Delete the conflicting dimension or unlock the constraint. Use the "Reveal Constraints" mode (the lightbulb icon at the bottom of the view) to see hidden locks that may be causing the conflict.

• Scenario: Family file size exceeds 2MB for a simple object.




  • Root Cause: Excessive use of 3D geometry where 2D symbolic lines would suffice, or the inclusion of high-resolution image textures and unpurged CAD imports.
  • Actionable Fix: Delete any imported .dwg files; use "Pick Lines" to recreate them in Revit if necessary. Purge unused materials and use "Masking Regions" for complex 2D representations.

• Scenario: Elements are visible in the family editor but invisible in the project.




  • Root Cause: The Visibility/Graphics settings are set to hide the element at the current Detail Level (Coarse/Medium/Fine) or the subcategory is turned off in the project’s View Template.
  • Actionable Fix: Check the "Visibility/Graphics Overrides" for the element in the family editor. Ensure all boxes for Coarse, Medium, and Fine are checked during the testing phase.

Frequently Asked Questions

What is the difference between a Family and a System Family in Revit?

A standard Family (.rfa) is an external file you create, such as a door or a chair. A System Family (like walls, floors, or roofs) is built directly into the Revit project environment and cannot be created as a separate external file, though its types can be transferred between projects.

When should I use a Nested Family?

Use nested families for components that repeat across different types, such as a hardware handle used on twenty different door families. This allows you to update the handle in one place and have it update across all "parent" families, significantly reducing maintenance time.

How do I make a Revit family "Room Aware"?

To ensure a family (like a piece of furniture) reports which room it is in, you must enable the "Room Calculation Point" in the Family Category and Parameters dialog. This creates a point that you can drag into the room volume, ensuring accurate scheduling.

Why are Reference Planes better than Reference Lines?

Reference planes are infinite and ideal for linear constraints (Width, Height, Depth). Reference lines have a finite length and contain four planes (two along the line and one at each end), making them the superior choice for controlling angles and rotations.

How do I prevent my family from rotating when hosted to a wall?

If a family is rotating unexpectedly, check the "Always Vertical" parameter in the Family Category and Parameters menu. If this is checked, the family will remain upright regardless of the host's slope; if unchecked, it will align its local Z-axis with the host's surface normal.

Professional BIM Workflow Optimization

Mastering parametric content creation is the bridge between basic drafting and true Building Information Modeling. By standardizing your family creation process and adhering to strict naming conventions, you ensure that your Revit models remain performant, scalable, and data-rich for the entire building lifecycle.
