How To Convert Fluorescent Fixtures To LED: The Ultimate Ballast Bypass And Retrofit Guide

Converting fluorescent fixtures to LED involves replacing energy-intensive T8 or T12 tubes with high-efficiency light-emitting diodes via three primary methods: Type A (plug-and-play), Type B (ballast bypass), or Type C (remote driver). For a permanent solution, the ballast bypass method directly connects line voltage to the lampholders, eliminating ballast failure points and reducing energy consumption by up to 60% while maintaining compliance with UL 1598C safety standards.

Strategic Planning and Electrical Component Checklist

Before beginning any electrical modification, it is critical to distinguish between the different types of linear LED lamps available on the market. A successful retrofit hinges on matching the new LED technology with your existing fixture architecture. The most common conversion is from T12 (1.5-inch diameter) or T8 (1-inch diameter) fluorescent lamps to T8 LED replacements. While Type A tubes allow for a simple swap, they still rely on the aging ballast, which will eventually fail. This guide focuses on the Type B Ballast Bypass method, which provides the highest reliability and energy savings by removing the ballast from the circuit entirely.

A comprehensive preparation phase ensures that the installation meets the National Electrical Code (NEC) requirements and prevents damage to the new components. You must identify whether your fixture uses shunted or non-shunted tombstones (lampholders). Shunted tombstones receive power through a single path and are common in instant-start fixtures, whereas non-shunted tombstones have separate points of entry for wires and are typical in rapid-start or dimming fixtures.

Essential Gear and Material Requirements:

• Safety Equipment: ANSI-rated safety glasses, voltage-rated insulated gloves, and a non-contact voltage tester.
• Hand Tools: Wire strippers (10-20 AWG), needle-nose pliers, a Phillips and flat-head screwdriver set, and a cordless drill for fixture disassembly.
• Electrical Supplies: UL-listed wire nuts (orange or blue), electrical tape, and 18 AWG solid copper wire (for jumping non-shunted sockets if necessary).
• Measurement Benchmarks: Most residential conversions take approximately 20 to 30 minutes per fixture. Budgets typically range from $8 to $20 per lamp depending on the Lumen-per-Watt efficiency and Color Rendering Index (CRI) rating.

Mastering the Ballast Bypass: A Sequential Retrofit Workflow

Transitioning to a ballast-bypass (Type B) system requires a fundamental understanding of how current flows through the fixture. In a standard fluorescent setup, the ballast regulates the current to the gas-filled tube. In a Type B LED setup, the ballast is removed, and the 120V or 277V "line" and "neutral" wires are connected directly to the sockets.

Step 1: Power Isolation and Safety Verification

The most dangerous error in any electrical project is working on a live circuit. Locate your home or facility’s breaker panel and switch off the circuit dedicated to the lighting zone.

1. Flip the wall switch to the "off" position.
2. De-energize the circuit at the main breaker panel.
3. Use a non-contact voltage tester near the fixture's internal wiring to confirm the absence of an electromagnetic field.
4. Remove the plastic diffuser lens and the old fluorescent tubes, disposing of them at a certified hazardous waste facility due to their mercury content.

Warning: Never rely solely on a wall switch to kill power. Neutral wires can still carry a return current if the circuit is miswired or shared, leading to severe electric shock.

Step 2: Accessing the Ballast and Wiring Internal Components

Most linear fixtures feature a central "ballast cover" or "raceway" held in place by squeeze-tabs or small screws. Removing this cover reveals the ballast and the complex web of colored wires leading to the tombstones.

1. Remove the metal cover to expose the ballast and internal wiring.
2. Identify the input wires (usually black for "hot/line" and white for "neutral").
3. Identify the output wires (usually red, blue, or yellow) that lead to the tombstones at either end of the fixture.
4. Using your wire cutters, snip all wires connected to the ballast as close to the ballast body as possible. This leaves you with maximum lead length for the next step.
5. Unscrew the ballast mounting hardware and remove the ballast entirely to reduce the weight of the fixture and clear space.

Step 3: Determining Socket Type and Wiring Strategy

This is the most technical phase of the conversion. You must check your LED tube's packaging to see if it requires "Single-Ended Power" or "Double-Ended Power."

• Single-Ended Power: Requires both Line and Neutral to be connected to only one end of the tube. This necessitates non-shunted tombstones.
• Double-Ended Power: Requires Line to be connected to one end of the tube and Neutral to be connected to the other. This works with both shunted and non-shunted tombstones.

If you are using single-ended tubes with shunted tombstones, you must replace the tombstones with non-shunted versions to avoid a dead short. If using double-ended tubes, you can typically use the existing wiring with minor modifications.

Step 4: Executing the Direct-Wire Connection

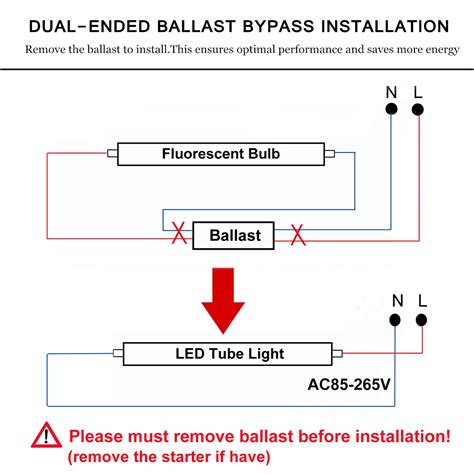

For a standard double-ended Type B LED installation, follow this wiring sequence:

1. Gather all the wires coming from one side of the fixture (e.g., all blue and red wires). Strip approximately 1/2 inch of insulation from each.
2. Connect these wires to the incoming Black (Line) wire from the building’s power supply using a wire nut.
3. Gather all the wires coming from the opposite side of the fixture (e.g., all yellow wires). Strip the ends.
4. Connect these wires to the incoming White (Neutral) wire using a wire nut.
5. Ensure the Green or bare copper ground wire remains securely fastened to the fixture’s metal chassis to maintain safety grounding.

Pro-Tip: Ensure all wire nuts are tightened until the wires begin to twist around each other. Tug on each individual wire to ensure it is seated firmly and won't vibrate loose over time.

Step 5: Final Inspection and Labeling

Before closing the fixture, you must adhere to safety labeling requirements. Most Type B LED kits include a "Relamp Warning" sticker.

1. Apply the warning sticker to the inside of the fixture or on the ballast cover. This sticker alerts future technicians that the ballast has been removed and that inserting a fluorescent tube could result in the lamp exploding or catching fire.
2. Tuck all wires neatly back into the raceway, ensuring no wires are pinched between the cover and the fixture body.
3. Reinstall the ballast cover and the LED tubes.
4. Restore power at the breaker panel and test the switch.

Comparative Analysis of LED Retrofit Technologies

The decision to choose a specific retrofit method depends on labor costs, existing fixture condition, and desired longevity. Use the following data to determine which conversion path aligns with your specific facility requirements.

Common Electrical Failures and Resolution Strategies

Even with careful planning, retrofitting older fixtures can present unexpected technical hurdles. Below are the most frequent issues encountered during the conversion process.

• The LED Tube Only Illuminates at One End




  • Root Cause: This is typically caused by installing a "Single-Ended" LED tube into a fixture wired for "Double-Ended" power, or vice-versa. It can also occur if you are using a non-shunted tombstone for a double-ended tube without proper bridging.
  • Actionable Fix: Verify the wiring diagram on the lamp's label. If using single-ended lamps, ensure the Neutral and Line are both on the "Powered" end of the socket. If the tube is double-ended, ensure Line is at one end and Neutral is at the other.

• Continuous Flickering or Ghosting (Strobe Effect)




  • Root Cause: In Type A installations, this usually indicates an incompatible ballast (e.g., trying to use an instant-start LED with a magnetic ballast). In Type B installations, this can signify a loose neutral connection or interference from a dimmer switch not rated for LEDs.
  • Actionable Fix: Check all wire nut connections for tightness. If the fixture is on a dimming circuit, replace the existing wall dimmer with an ELV (Electronic Low Voltage) or 0-10V dimmer compatible with the LED tube's driver.

• Circuit Breaker Trips Immediately Upon Power-On




  • Root Cause: A direct short circuit, likely caused by using a shunted tombstone with a single-ended Type B LED tube. In a shunted tombstone, the two pins are connected internally; if you put Line and Neutral on those two pins, it creates a dead short.
  • Actionable Fix: Inspect the tombstones with a multimeter to check for continuity between the two pin slots. If continuity exists (shunted), you must replace the tombstone with a non-shunted version for single-ended LEDs, or switch to a double-ended wiring configuration.

Frequently Asked Questions

What is the difference between shunted and non-shunted tombstones?

Shunted tombstones feature internally connected contacts, meaning electrical current flows through a single path to both lamp pins. Non-shunted tombstones have isolated contacts, providing two separate paths for electrical current, which is mandatory for single-ended Type B LED tubes where Line and Neutral must enter the same socket without touching.

Can I use the same LED tubes for T8 and T12 fixtures?

Yes, most modern T8 LED retrofit tubes are designed to fit the G13 medium bi-pin bases found in both T8 and T12 fixtures. Since the conversion involves bypassing the ballast, the original electrical differences between T8 (electronic) and T12 (magnetic) systems are rendered irrelevant, provided the physical socket spacing is the same.

Is it necessary to remove the old ballast from the fixture?

While some technicians simply snip the wires and leave the ballast in place to save time, it is highly recommended to remove it. Removing the ballast reduces the weight of the fixture, prevents potential hum or buzzing from a dead component, and creates more room for clean wiring and heat dissipation.

Are LED tubes safer than fluorescent tubes?

LED tubes are significantly safer as they do not contain toxic mercury vapor and are typically constructed from shatterproof polycarbonate rather than glass. Furthermore, by performing a ballast bypass, you eliminate the ballast—a component known to overheat and occasionally leak oil or catch fire at the end of its life cycle.

Optimize Your Facility Lighting

Upgrading to LED technology is the single most effective way to reduce overhead costs and improve light quality in your workspace. For large-scale industrial applications or complex dimming requirements, consulting with a licensed electrical contractor can ensure your retrofit meets all local building codes and insurance requirements.
