How To Connect A Flag To A Pole: The Complete Rigging And Hardware Guide

Properly securing a flag to a flagpole requires understanding the tension limits of your halyard, the correct orientation of snap hooks, and the specific anchoring methods for both internal and external halyard systems. Mastering these rigging techniques prevents premature fraying, eliminates unsightly flag wrap, and ensures your colors fly safely in high winds.

Pre-Operation & Equipment Checklist

Achieving a secure, professional flag connection requires proper hardware and adherence to nautical and architectural rigging standards. Using incorrect fasteners or improper rope sizing leads to structural failure, noisy flogging, and potential damage to both the flag and the pole.

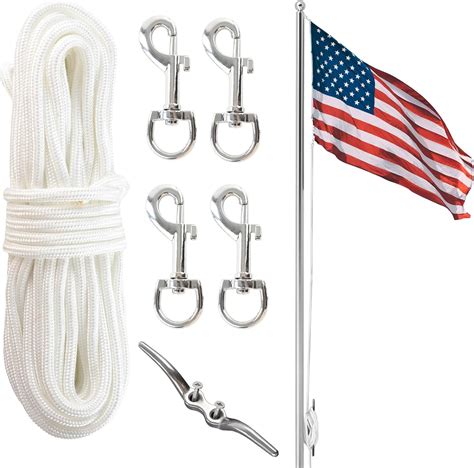

• Essential Gear and Hardware:


  • Halyard rope: UV-resistant braided polyester or polypropylene (typically 1/4-inch to 5/16-inch diameter depending on pole height).
  • Snap hooks: Two heavy-duty swivel snap hooks, preferably made of marine-grade brass, nylon, or stainless steel to prevent rust bleeding onto the fabric.
  • Snaps covers or vinyl snap covers: Optional accessories to eliminate the metallic clanging sound against the pole.
  • Counterweight or flash collar (if applicable for internal systems).
  • Flag: Heavy-duty nylon or stitched cotton-polyester blend featuring reinforced canvas headers and solid brass grommets.
• Mandatory Prerequisites and Standards:


  • Inspect the halyard for core degradation, fraying, or UV dry rot before hoisting.
  • Verify that the flagpole truck (the pulley at the top) spins freely.
  • Confirm local wind rating guidelines; standard residential poles accommodate winds up to 50 MPH, while commercial tapered aluminum poles handle significantly higher loads.
• Scope and Timeframe:


  • Estimated duration: 10 to 15 minutes for a standard vertical flagpole.
  • Skill level: Beginner, requiring no specialized construction tools.

Step-by-Step Flag Rigging and Connection Procedure

Step 1: Inspect and Lay Out the Flag and Halyard

Begin by laying the flag flat on a clean surface or keeping it elevated off the ground to prevent dirt transfer, especially if flying a traditional white-starfield canton. Unspool the flagpole halyard (rope) from its cleat and ensure it runs smoothly through the top truck pulley without twists. Check the brass grommets on the flag's canvas header for any oxidation, tearing, or structural weakness.

Pro-Tip: Always inspect the top halyard knot or loop. If the halyard is a continuous loop, locate both the upper and lower attachment points before fastening hardware.

Step 2: Attach the Top Snap Hook to the Halyard

Take your first marine-grade swivel snap hook and secure it to the upper loop or eye splice of the halyard. If your halyard is an open-ended rope, tie a secure bowline knot or a figure-eight loop through the eye of the snap hook, leaving at least a 3-inch tail to prevent slippage under dynamic tension. Ensure the gate of the snap hook opens inward toward the rope to minimize snagging.

Warning: Avoid using cheap carabiners or unrated zinc-plated snap hooks from general hardware stores, as salt air and continuous wind loading will cause them to rust or snap within months.

Step 3: Connect the Top Grommet to the Flag

Hook the top swivel snap hook directly into the uppermost brass grommet located on the flag's canvas header. Pull the halyard slightly to ensure the snap hook seats securely in the center of the grommet aperture. Verify that the flag's front (obverse) side is facing outward or toward the primary viewing direction (typically east or toward the main street entry) when the flag is hoisted.

Step 4: Secure the Lower Snap Hook and Adjust Halyard Tension

Pull the halyard downward until the flag canvas header is taut, then align the lower snap hook with the bottom brass grommet of the flag. Attach the lower snap hook to the bottom grommet. If the flag is slightly too small for the distance between the snap hooks, adjust the lower attachment point by tying an adjustable taut-line hitch or utilizing a weighted retainer ring to remove slack.

Pro-Tip: Leave a slight amount of slack (approximately 1 to 2 inches) in the halyard between the top and bottom grommets. Stretching the flag like a guitar string between fixed points creates excessive stress on the canvas header, causing it to rip prematurely during high-wind gusts.

Step 5: Hoist and Secure the Halyard to the Cleat

Raise the flag smoothly to the top of the flagpole (the truck), maintaining a firm grip on both sides of the halyard to prevent the flag from dipping or touching the ground. Once the flag reaches the peak, secure the halyard to the external cleat using a standard figure-eight cleat hitch. Wrap the rope in a crossing "figure-eight" pattern at least four to five times, finishing with an interlocking half-hitch to lock the line in place.

Flagpole Hardware and Material Compatibility Matrix

Common Rigging Failures and Field Fixes

• Issue: Loud Metallic Clanging Against the Pole


  • Root Cause: Metal snap hooks are striking the aluminum or steel shaft of the flagpole during wind gusts.
  • Actionable Fix: Install rubber or vinyl snap hook covers over the latches, or switch to heavy-duty nylon-coated snap hooks to dampen acoustic resonance.
• Issue: Flag Wrapping Constantly Around the Pole


  • Root Cause: Fixed snap hooks prevent the flag from rotating freely 360 degrees around the vertical axis when wind directions shift.
  • Actionable Fix: Upgrade to double-swivel snap hooks that allow independent rotation, or install an anti-wrap spinner device and weighted bottom retainer ring.
• Issue: Frayed Canvas Header and Torn Grommets


  • Root Cause: Over-tensioning the halyard line, causing the fabric to absorb the full kinetic energy of the wind instead of the rope.
  • Actionable Fix: Loosen the halyard tension slightly during installation to introduce play, and repair torn canvas headers with heavy-duty sailmaker's thread before rehanging.
• Issue: Jammed Halyard Inside Internal Pole Track


  • Root Cause: Counterweight failure or tangled internal cable guides within a cam cleat system.
  • Actionable Fix: Lower the internal locking door using a hex key, clear the weighted lanyard assembly, and re-guide the cable through the internal retaining clips.

Frequently Asked Questions

Which direction should the flag face when connected to the pole?

When flying a national flag in the United States or most international jurisdictions, the union (blue field of stars) must be placed at the peak and directed toward the observer's left when viewed from the front, or toward the building entrance or primary line of sight. Ensure the obverse (front) side of the flag faces outward away from the pole.

Can I connect a flag to a pole without snap hooks?

While you can tie the halyard directly to the grommets using a bowline knot, this makes raising, lowering, and taking down the flag in inclement weather extremely difficult. Swivel snap hooks are strongly recommended because they allow for rapid attachment, detachment, and 360-degree rotation.

How tight should the halyard rope be pulled?

The halyard should be taut enough to keep the flag elevated cleanly at the top of the pole, but not so tight that the canvas header is stretched rigid. A rigid canvas header absorbs shock waves from the wind directly, leading to torn grommets and ripped fabric seams within weeks.

What is the best knot to secure the halyard to the cleat?

The standard figure-eight cleat hitch is the industry-standard knot for flagpoles. It involves wrapping the halyard under the base of the cleat once, crossing diagonally over the top, wrapping under the opposite horn, and finishing with an interlocking half-hitch loop to secure the tail.

How often should flag rigging hardware be replaced?

Marine-grade brass and stainless steel snap hooks and polyester halyards typically last between two to four years depending on regional weather extremes. Inspect your rigging twice a year—specifically during spring and autumn transitions—and replace worn ropes immediately upon noticing surface fuzzing or core exposure.
